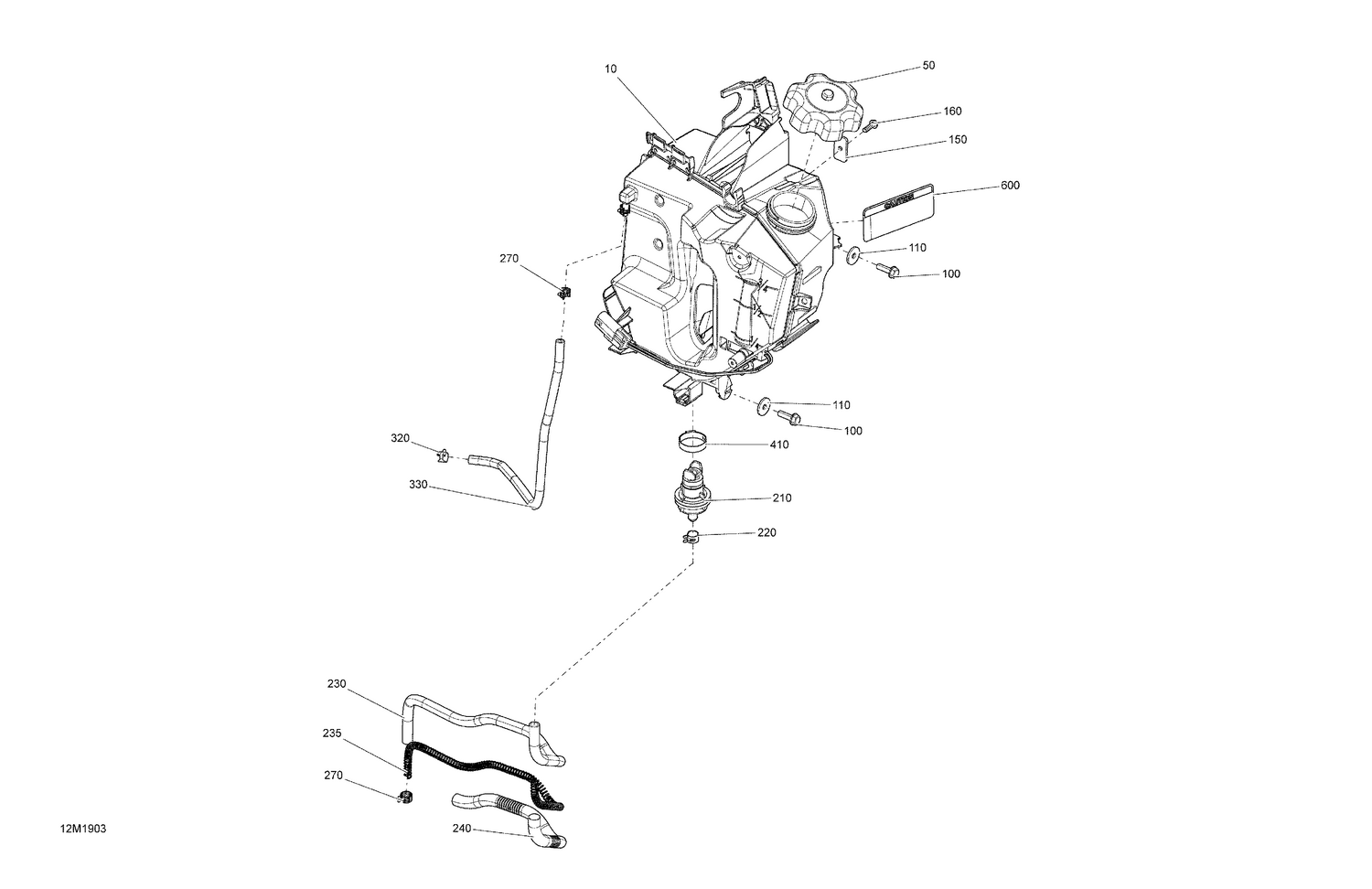

02- Oil 600 Carb
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000312 | Oil Tank |
| 50 | 519000273 | Cap |
| 100 | 250001062 | Hex. Flange Screw M6 X 16 |
| 110 | 224061201 | Flat Washer |
| 150 | 519000179 | Bracket |
| 160 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 210 | 519000242 | Oil Filter |
| 220 | 414415200 | Spring Clamp |
| 230 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 235 | 519000196 | Spring |
| 240 | 219704407 | Tubing 10 MM 1000MM Long |
| 270 | 414420700 | Spring Clamp |
| 320 | 414554800 | Spring Clamp |
| 325 | 414420700 | Spring Clamp |
| 330 | 219704410 | Polyurethane Hose 10000Mm Long |
| 410 | 293650099 | Crimp Clamp |
