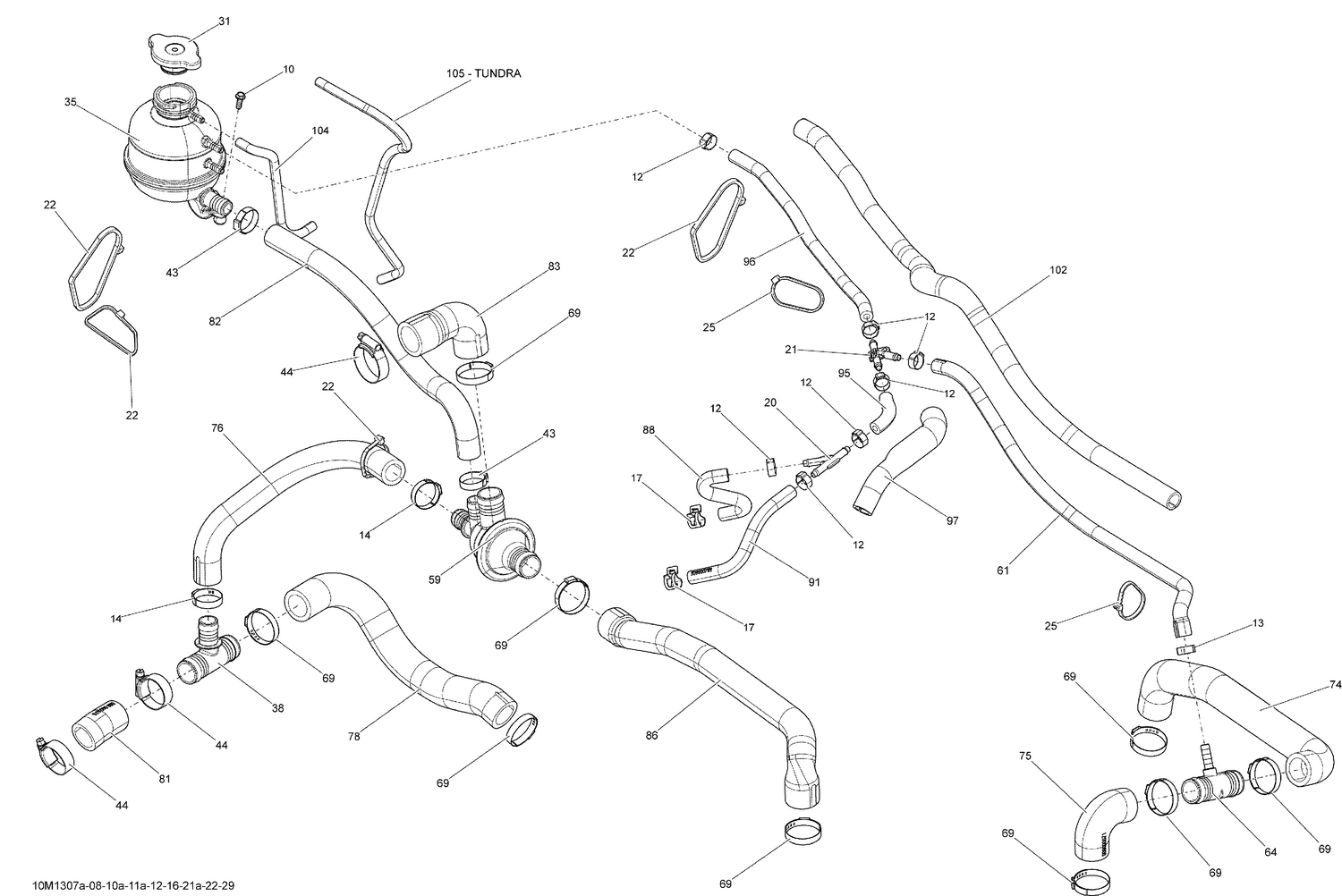

01- Cooling System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 13 | 293650047 | Crimp Clamp, 15.3-706R |
| 22 | 293750008 | Tie Wrap 368 mm |
| 25 | 414115200 | Tie-Rap 180 mm |
| 31 | 509000180 | Radiator Pressure Cap |
| 38 | 509000372 | T-Fitting |
| 44 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 64 | 509000510 | T-Fitting |
| 69 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 74 | 509000670 | Radiator Hose |
| 75 | 509001066 | Radiator Hose This part replaces 509000671. |
| 78 | 509000673 | Radiator Hose |
