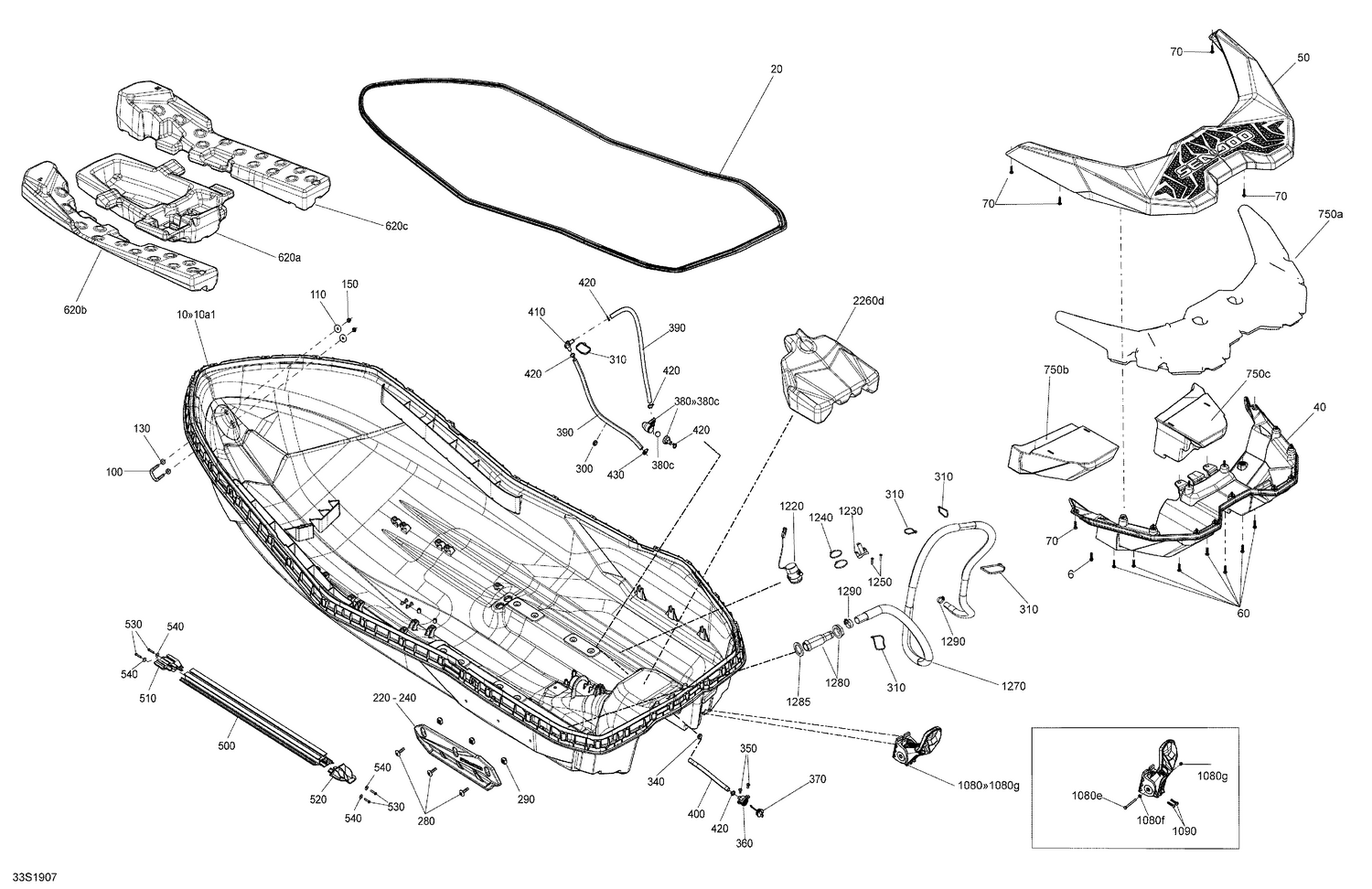

09- Hull — Parts Catalog

Ref	Part Number	Description
10	295501188	Hull
20	293250338	Seal Joint
100	292000933	U-Clamp
110	293050001	Flat Washer M8.5 x 18
130	250200175	Flat Washer 8 mm, Stainless
150	232581200	Hex. Elastic Nut M8 Brass
220	292002009	RH Sponson
240	292002008	LH Sponson
280	250000697	Torx Screw M8 X 35
290	269501943	Elastic Nut Housing M8
300	293830063	Rubber Washer
310	293750008	Tie Wrap 368 mm
340	293830063	Rubber Washer
350	250000384	Torx Screw M6 X 14
360	292001552	Neck Drain
370	292002024	Plug Drain Ass'y
380	292001636	Bailer Pick-up Ass'y
390	219704393	Polyurethane Hose 1000Mm Long
400	219704393	Polyurethane Hose 1000Mm Long
410	293710152	Fitting Elbow 90°
420	293750001	Tie Wrap 94 mm
430	293650171	Tridon Gear Clamp
500	292001549	Hull Reinforcement
510	292001550	Front End Piece Reinforcement
520	292001551	Rear End Piece Reinforcement
530	250000680	Hex. Flange Screw K50 X 25
540	234052600	Flat Washer 5 mm, Stainless
620a	292001439	Front Float
620b	292001467	LH Float
620c	292001468	RH Float
620d	292001469	Rear Float
1220	278003483	Bilge Pump
1230	269800473	Bilge Pump Support
1240	293750008	Tie Wrap 368 mm
1250	211000023	Hex. Screw 10-14 X 7/8”
1270	291002952	Hose Bilgeflex
1280	293710162	Fitting
1285	292001486	Gasket
