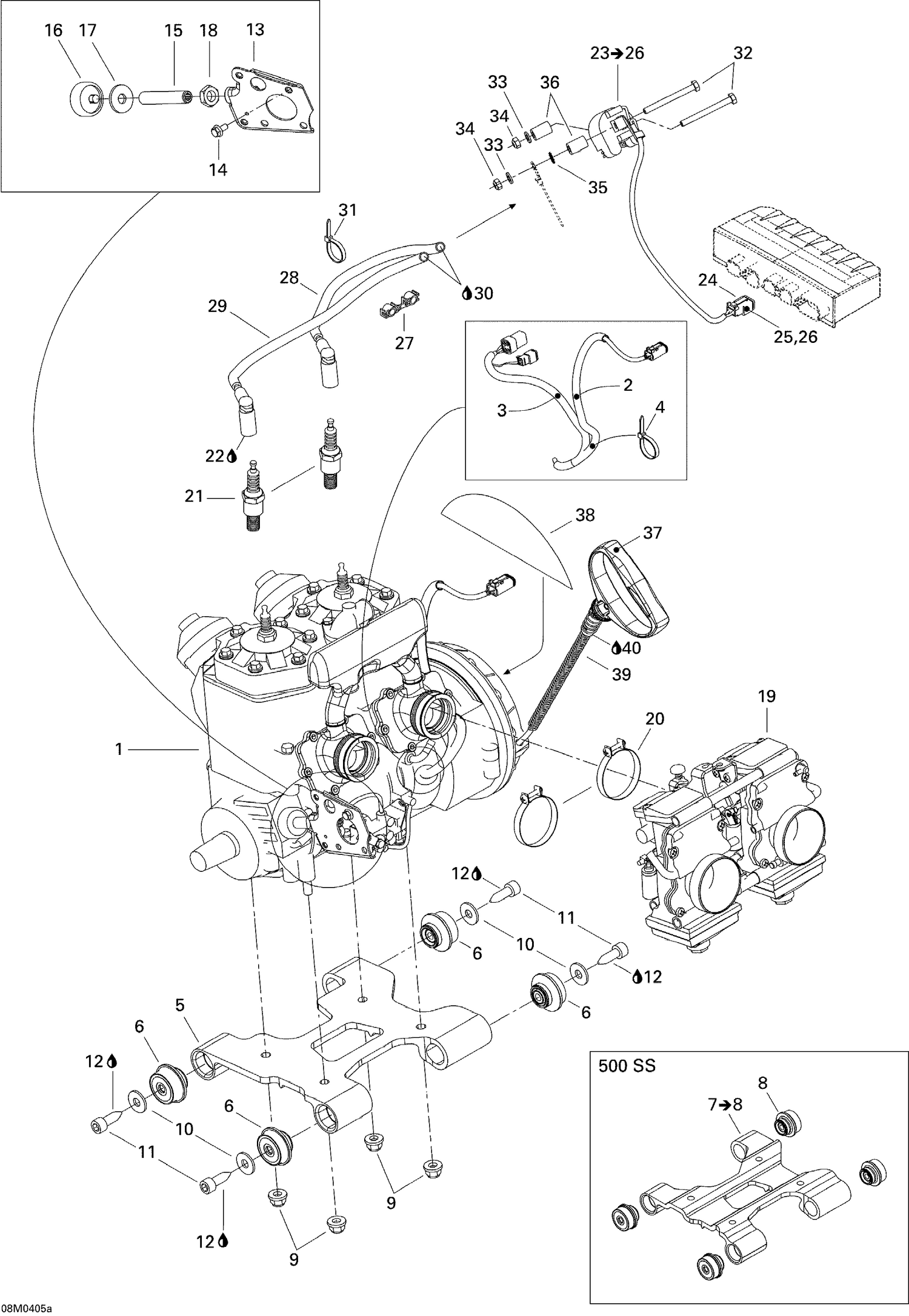

01- Engine Assembly And Support
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219704400 | Was 409901800 Tubing (13 mm) |
| 3 | 219704407 | Tubing 10 MM 1000MM Long |
| 4 | 293750002 | Tie Wrap 142 mm |
| 9 | 233201414 | Hex. Flange Elastic Nut M10 |
| 10 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 11 | 250000094 | Screw M10 X 30 |
| 12 | 413703400 | Sealant LOCTITE 222MS - Call your local BRP dealership |
| 13 | 512059840 | PLATE - Call your local BRP dealership |
| 14 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 15 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 16 | 512059610 | STOPPER - Call your local BRP dealership |
| 17 | 512059057 | WASHER - Call your local BRP dealership |
| 18 | 232170411 | Hex. Jam Nut M14 |
| 20 | 512059835 | Gemi Clamp |
| 21 | 512059552 | Spark Plug NGK BR9ECS-5 |
| 22 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 24 | 515175670 | Female Terminal Housing, 2 Circuits |
| 25 | 515175707 | Female Lock, 2 Circuits |
| 26 | 278000632 | Female Terminal |
| 27 | 410914600 | Plastic Clip, Spark Plug Wire |
| 28 | 512059695 | CABLE ASSY, 300 MM - Call your local BRP dealership |
| 29 | 512059696 | Cable Ass’y, 375 mm |
| 30 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 31 | 414115200 | Tie-Rap 180 mm |
| 32 | 207066044 | Hex. Screw M6 X 60 |
| 33 | 234061410 | Flat Washer 6 mm |
| 34 | 232561414 | Elastic Stop Nut M6 |
| 35 | 394001900 | EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 36 | 517203200 | Spacer |
| 37 | 572084400 | Starter Grip |
| 39 | 512059535 | ROPE GUIDE - Call your local BRP dealership |
