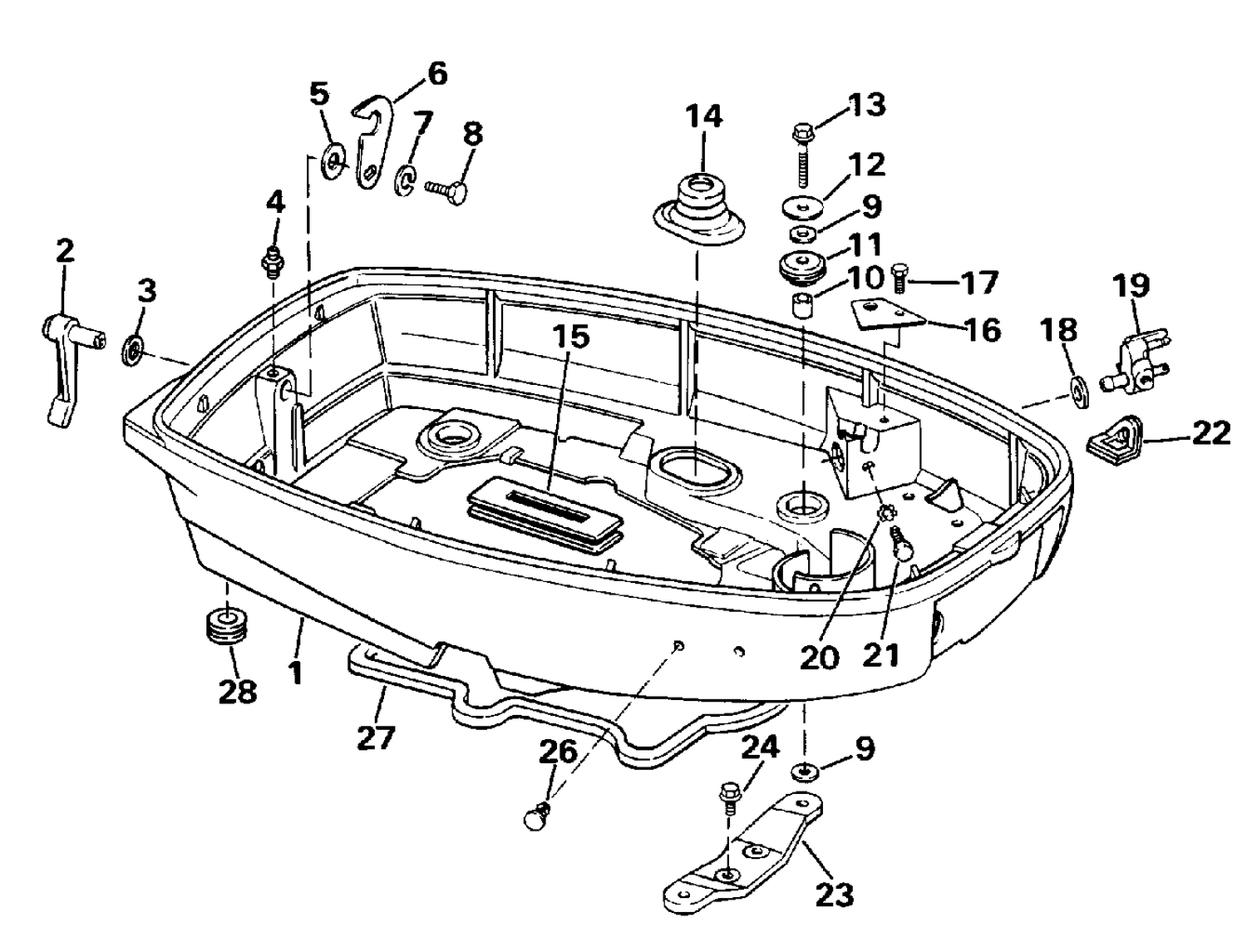

LOWER ENGINE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433392 | ENGINE COVER, Lower This part replaces 0432432. |
| 9 | 0329241 | RONDELLE |
| 10 | 0302406 | SLEEVE |
| 11 | 0316354 | ENGINE COVER SUPPORT GROMMET |
| 12 | 0203622 | WASHER |
| 13 | 0329240 | SCREW |
| 14 | 0304019 | CROMMET, CONTROL SHAFT |
| 15 | 0325327 | GROMMET, Actuator cam |
| 16 | 0331461 | CLIP, Trunnion |
| 17 | 0122147 | VIS, connecteur |
| 23 | 0325868 | BRACKET, Cove to exh. hsg., front |
| 27 | 0320158 | SEAL, Housing to cover |
