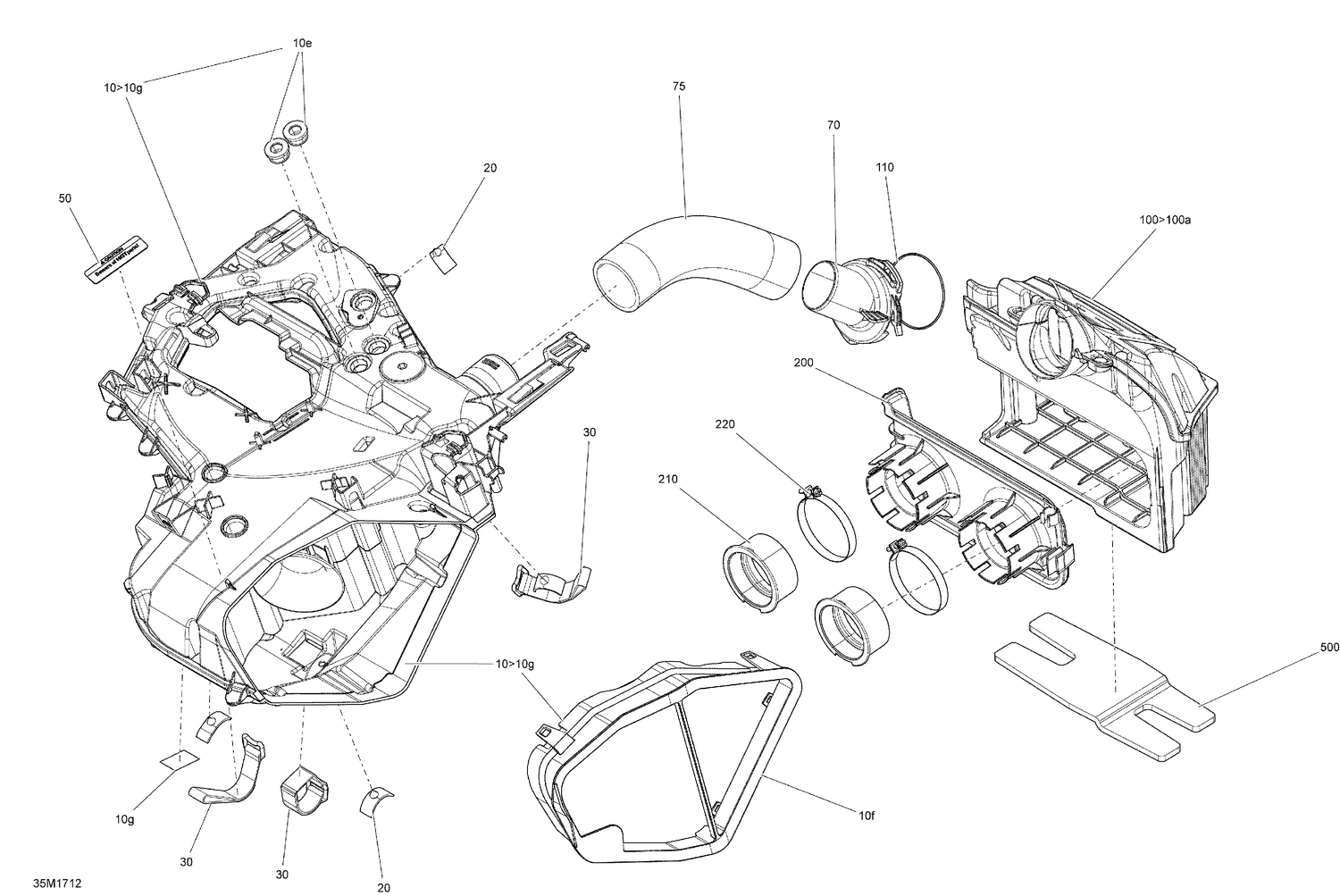

02- Air Intake System - All Models
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10e | 508000574 | Grommet |
| 10f | 508000595 | Air Intake Filter |
| 10g | 509000688 | Reflective Sheet |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro Strip |
| 50 | 516005280 | Caution Decal Hot Parts |
| 70 | 508000562 | Link |
| 75 | 508000406 | Tube |
| 100a | 516005876 | Notice Decal, Air Intake Silencer |
| 110 | 293300115 | O-Ring |
| 200 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 210 | 508000594 | Air Intake Adapter |
| 220 | 508000369 | Gemi Clamp |
