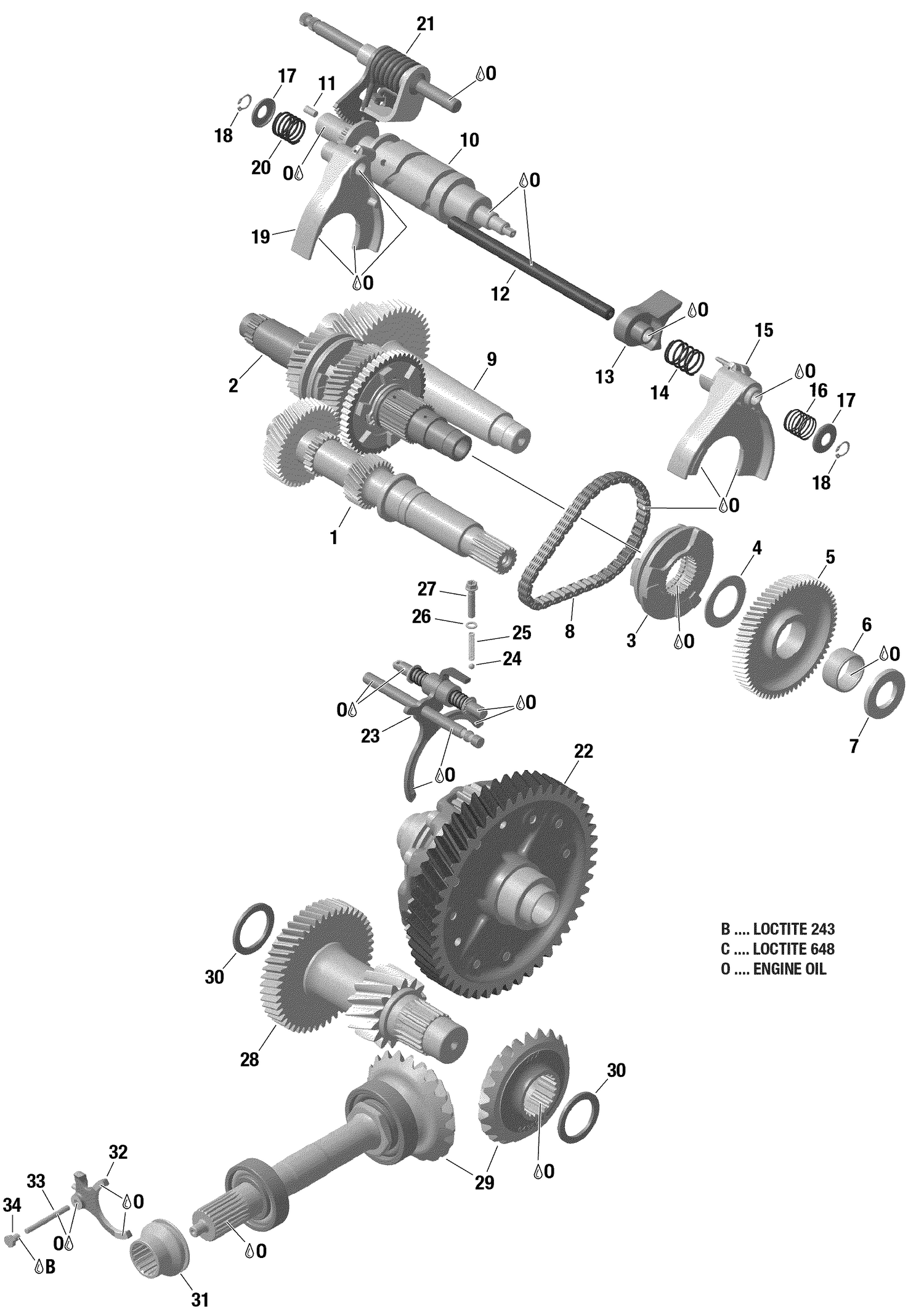

05- Gear Box 2 - 420686757
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420637507 | Counter Shaft This part replaces 420637508. |
| 3 | 420657404 | Shifting Sleeve |
| 4 | XXX | Not Available As Spare Parts |
| 5 | 420435903 | Gear Pinion 65T |
| 6 | 420432139 | Needle Cage |
| 7 | 420427082 | Thrust Washer This part replaces 420427083. |
| 8 | 420898532 | Chain |
| 9 | 420637676 | Intermediate Shaft |
| 11 | 420932780 | Needle Pin |
| 12 | 420657432 | Fork Spindle |
| 13 | 420657476 | Shifting Block This part replaces 420657475. |
| 14 | 420638075 | Spring |
| 15 | 420657539 | Gearshift Fork Ass'y |
| 16 | 420638070 | Spring |
| 17 | 420427140 | Spring Seat |
| 18 | 420945470 | Retaining Ring |
| 19 | 420657559 | Gearshift Fork Ass'y |
| 20 | 420638075 | Spring |
| 21 | 420637569 | Shift Shaft With Gear This part replaces 420637568. |
| 22 | 420686448 | Differential Ass'y This part replaces 420686442. |
| 23 | 420657469 | Shifting Fork Ass'y |
| 24 | 420932620 | Ball |
| 25 | 420638090 | Spring |
| 26 | 420230415 | Seal Washer |
| 27 | 420440647 | Torx Flange Screw M6 X 30 |
| 28 | XXX | Not Available As Spare Parts |
| 29 | XXX | Not Available As Spare Parts |
| 30 | XXX | Not Available As Spare Parts |
| 31 | 420257674 | Shifting Sleeve This part replaces 420257673. |
| 32 | 420258525 | Shifting Fork Ass'y |
| 33 | 420832650 | Needle Pin |
