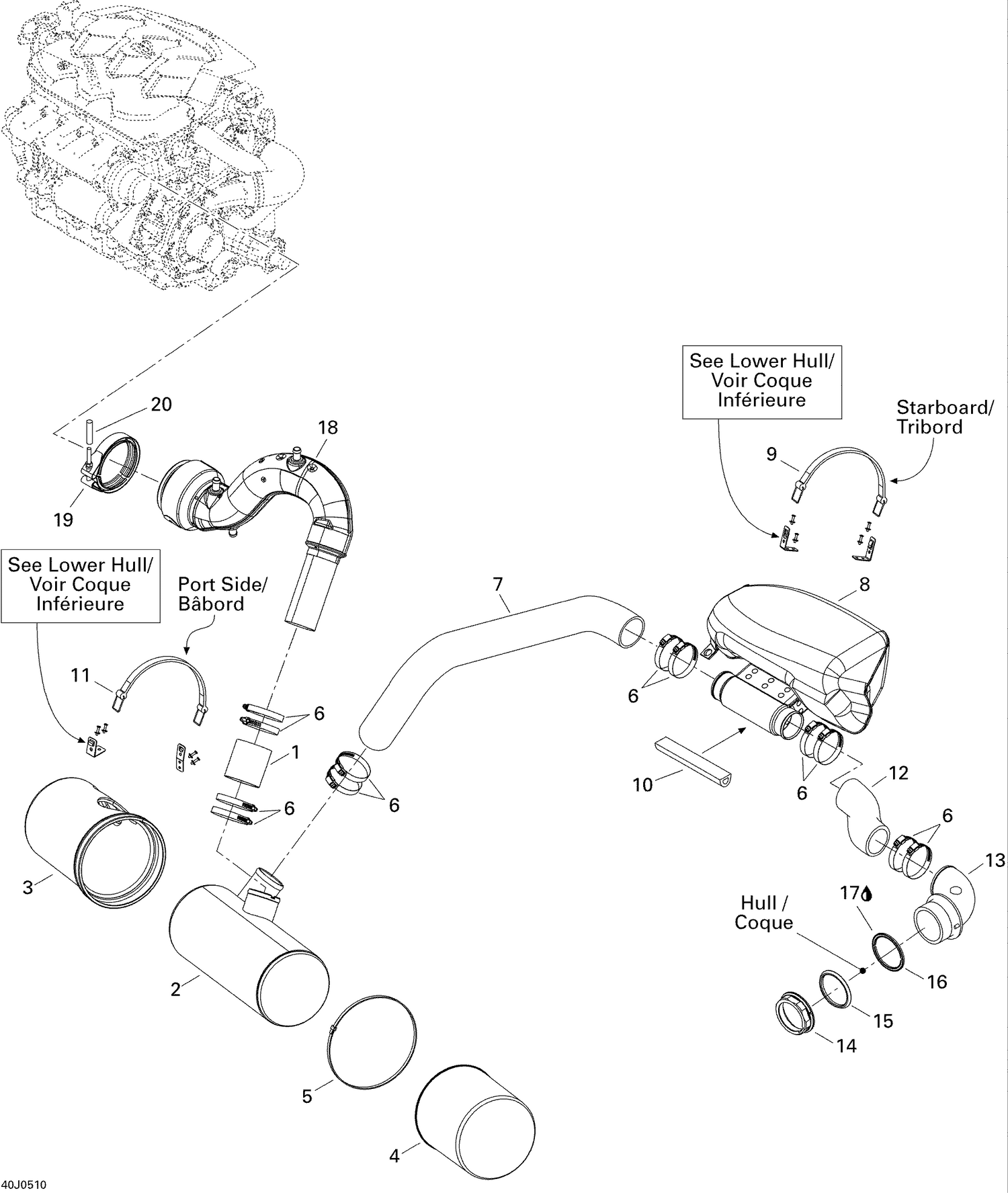

| Ref | Part Number | Description |
|---|
| 1 |
274001302 |
Exhaust Hose This part replaces 274000961. |
| 2 |
274001095 |
MUFFLER_EXHAUST - Call your local BRP dealership |
| 3 |
274001008 |
Front Muffler Cover |
| 4 |
274000984 |
REAR MUFFLER COVER - Call your local BRP dealership |
| 5 |
293750020 |
WRAP_TIE 828 X 9 - Call your local BRP dealership |
| 6 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 7 |
204340436 |
EXHAUST HOSE - Call your local BRP dealership |
| 8 |
274001045 |
RH Resonator |
| 9 |
293850022 |
STRAP - Call your local BRP dealership |
| 10 |
219704368 |
Seal Tray 1000Mm Long |
| 11 |
293850097 |
Retainer Strap |
| 12 |
0461589 |
Exhaust Hose This part replaces 204340437. |
| 13 |
274001389 |
Exhaust Hose, Outlet This part replaces 204340131. |
| 14 |
274000224 |
Nut 72 mm |
| 15 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 16 |
293250041 |
GASKET - Call your local BRP dealership |
| 17 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 18 |
274001089 |
EXHAUST PIPE - Call your local BRP dealership |
| 19 |
274001472 |
Exhaust Clamp This part replaces 274000959. |
