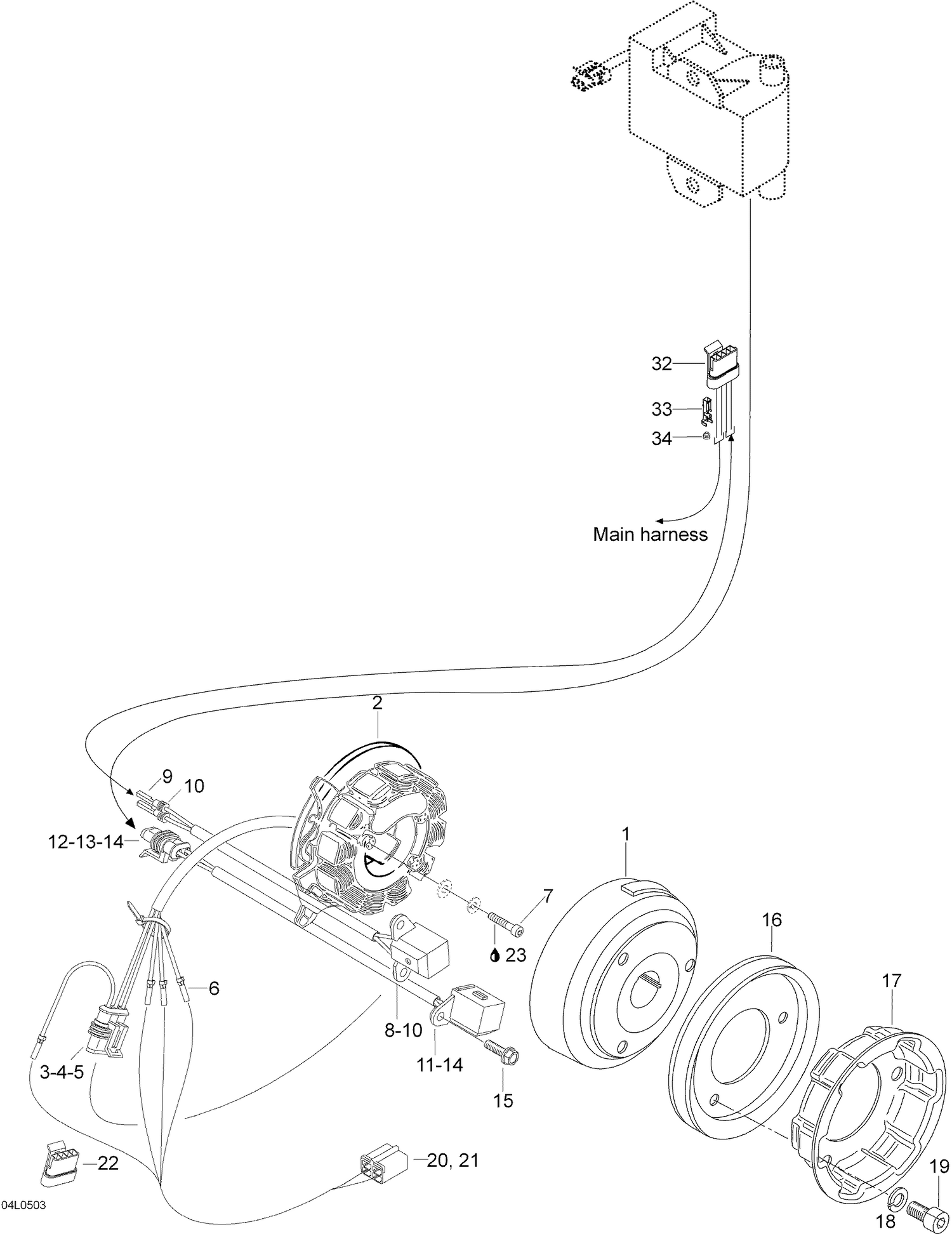

03- Magneto
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889376 | Magneto flywheel This part replaces 420889370. |
| 3 | 409209600 | Female terminal housing (3 circuits) |
| 4 | 278001014 | Female Terminal |
| 5 | 278001013 | Wire Seal |
| 6 | 515175567 | Female terminal |
| 7 | 420840515 | SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 9 | 278001014 | Female Terminal |
| 10 | 278001013 | Wire Seal |
| 12 | 409209500 | Female Housing, 2 Circuits |
| 13 | 278001014 | Female Terminal |
| 14 | 278001013 | Wire Seal |
| 15 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 16 | 420980486 | V-belt pulley |
| 17 | 420852414 | Starting pulley |
| 18 | 420845311 | Lock washer 8 mm |
| 19 | 420841522 | SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership This part replaces 420841521. |
| 20 | 278001473 | Liitin kotelo, uros |
| 21 | 278001474 | Kiila, uros liitinkoteloon |
| 22 | 42618 | Male terminal housing (4 circu.1=10pc) - Call your local BRP dealership |
| 23 | 293800060 | Loctite 243, 10ml |
| 32 | 409209700 | Female Housing, 4 Circuits |
| 33 | 278001014 | Female Terminal |
