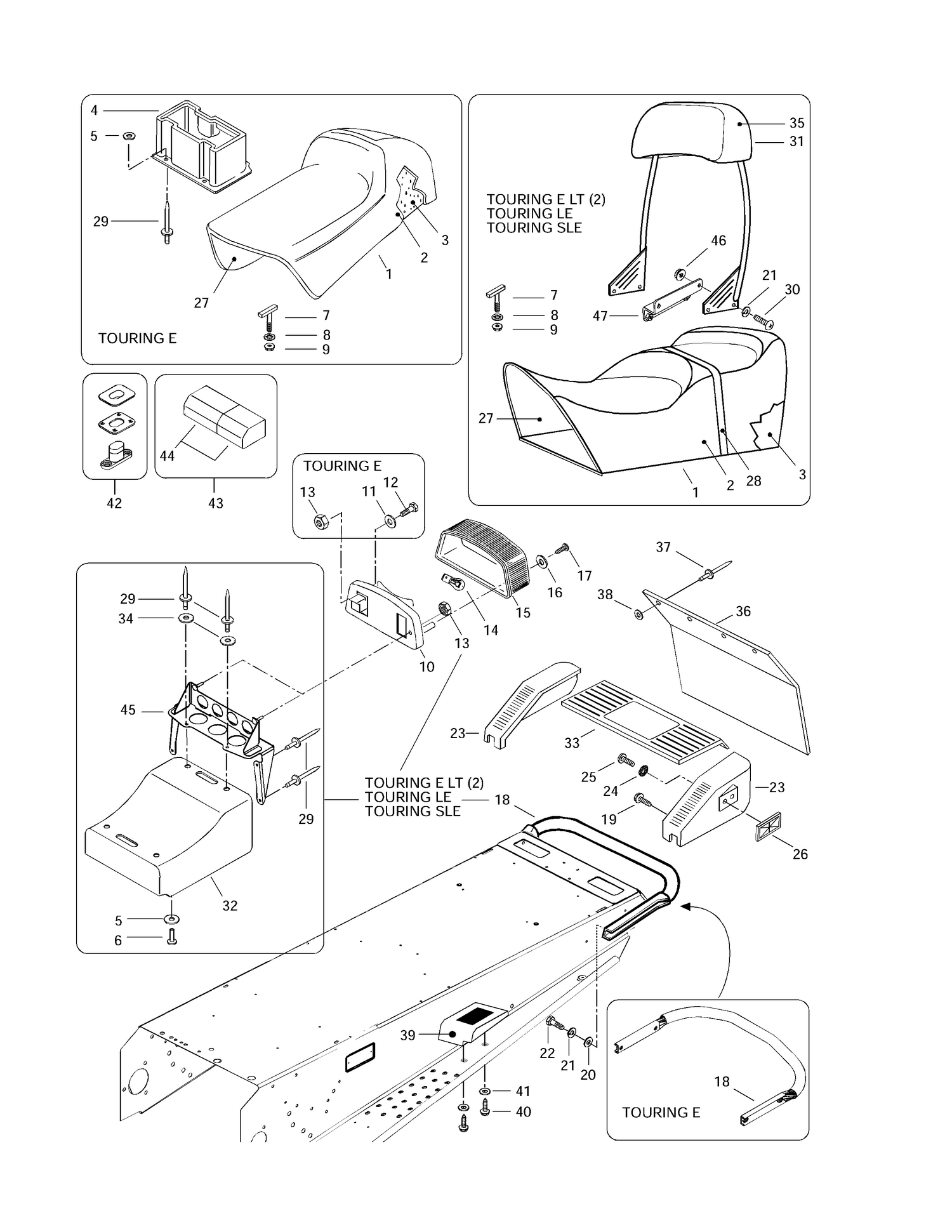

| Ref | Part Number | Description |
|---|
| 5 |
517225900 |
Flat Washer |
| 8 |
732610072 |
Push Nut |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 10 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 14 |
520000758 |
Bulb This part replaces 410504000. |
| 15 |
414513700 |
Lens |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 17 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 732601253. |
| 19 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 21 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 22 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 24 |
224151101 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 25 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 26 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 27 |
572059600 |
Sub-Seat |
| 29 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 37 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 38 |
517225900 |
Flat Washer |
| 42 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 44 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
