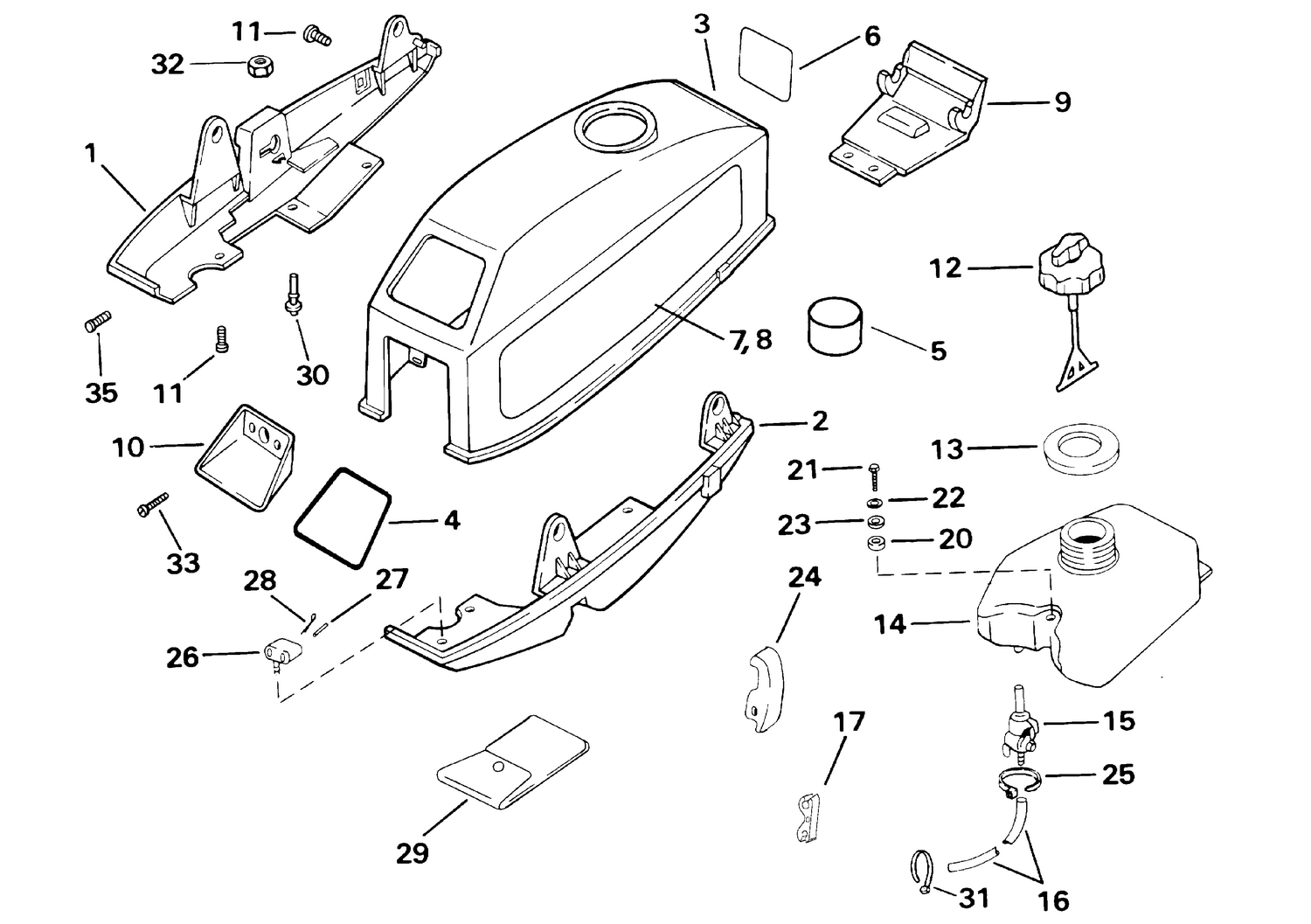

| Ref | Part Number | Description |
|---|
| 1 |
MOTOR |
COVER, Lower stbd., Jo |
| 2 |
MOTOR |
COVER, Lower, port, Jo |
| 6 |
0115292 |
SCREW |
| 9 |
0115213 |
SCREW, Anode |
| 10 |
0115622 |
MOTOR COVER PANEL, 3RO |
| 10 |
0451544 |
MOTOR COVER, Rear |
| 11 |
0115623 |
MOTOR COVER PANEL, Ev |
| 11 |
0451545 |
MOTOR COVER PANEL |
| 12 |
0114800 |
CAP & VENT Assy, Fuel tank |
| 13 |
0115357 |
SEAL, Gas tank |
| 17 |
0115259 |
LEVER, Lock, motor cover |
| 20 |
0115200 |
SPACER |
| 21 |
0115197 |
MOUNTING SCREW, Fuel tank |
| 22 |
0115198 |
SPRING WASHER, Fuel tank screw |
| 23 |
0115199 |
RONDELLE , vis du réservoir de carburant |
| 24 |
0115358 |
LOCK, Motor cover |
| 26 |
0115194 |
RUBBER HOLDER, Component kit |
| 27 |
0115193 |
DRIVE PIN |
| 28 |
0115192 |
COTTER PIN |
| 29 |
0114814 |
TOOL KIT & SPARE PART ASSY |
| 30 |
0336597 |
INDICATOR, Overboard pump |
| 32 |
0115331 |
NUT, Motor cover |
