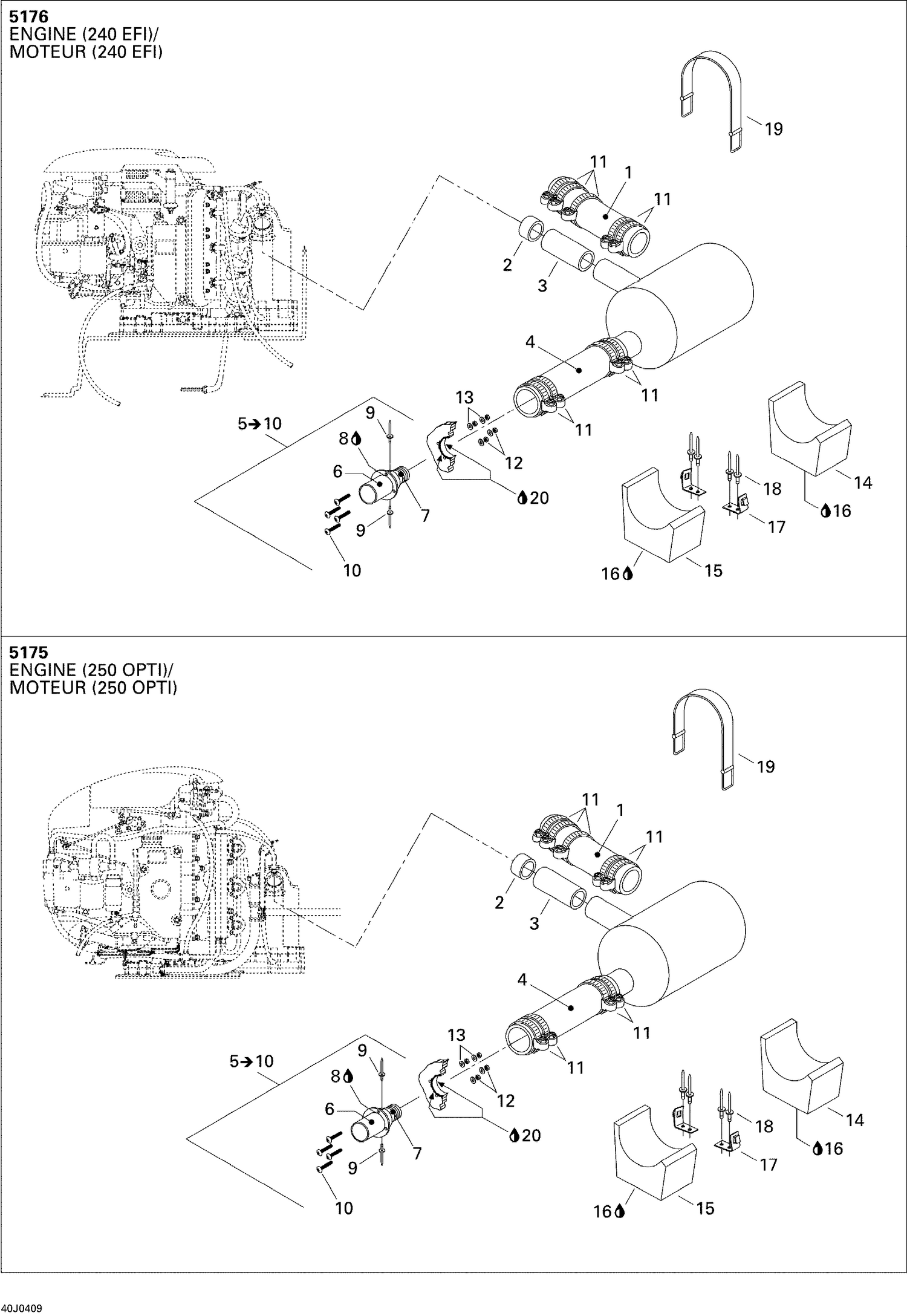

| Ref | Part Number | Description |
|---|
| 1 |
204340256 |
Exhaust Hose, Meter |
| 2 |
204340403 |
Exhaust Spacer |
| 3 |
204340401 |
EXHAUST ADAPTER - Call your local BRP dealership |
| 4 |
204340256 |
Exhaust Hose, Meter |
| 6 |
Not |
Available As Spare Part - Extension Exhaust Outlet |
| 7 |
204340229 |
Exhaust Outlet |
| 8 |
Not |
Available As Spare Part - Adchem Glue 7218 |
| 9 |
293150043 |
Pop Rivet 3/16" |
| 10 |
208663560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 11 |
293650112 |
Tridon Clamp |
| 12 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 13 |
234061600 |
Stainless Flat Washer M6 |
| 14 |
204340243 |
Front Muffler Support |
| 15 |
204340409 |
Rear Muffler Support |
| 16 |
Not |
Available As Spare Part - Adchem Glue 7218 |
| 17 |
204060017 |
Strap Clip 90° |
| 18 |
293150088 |
Pop Rivet 3/16" |
| 19 |
293850022 |
STRAP - Call your local BRP dealership |
