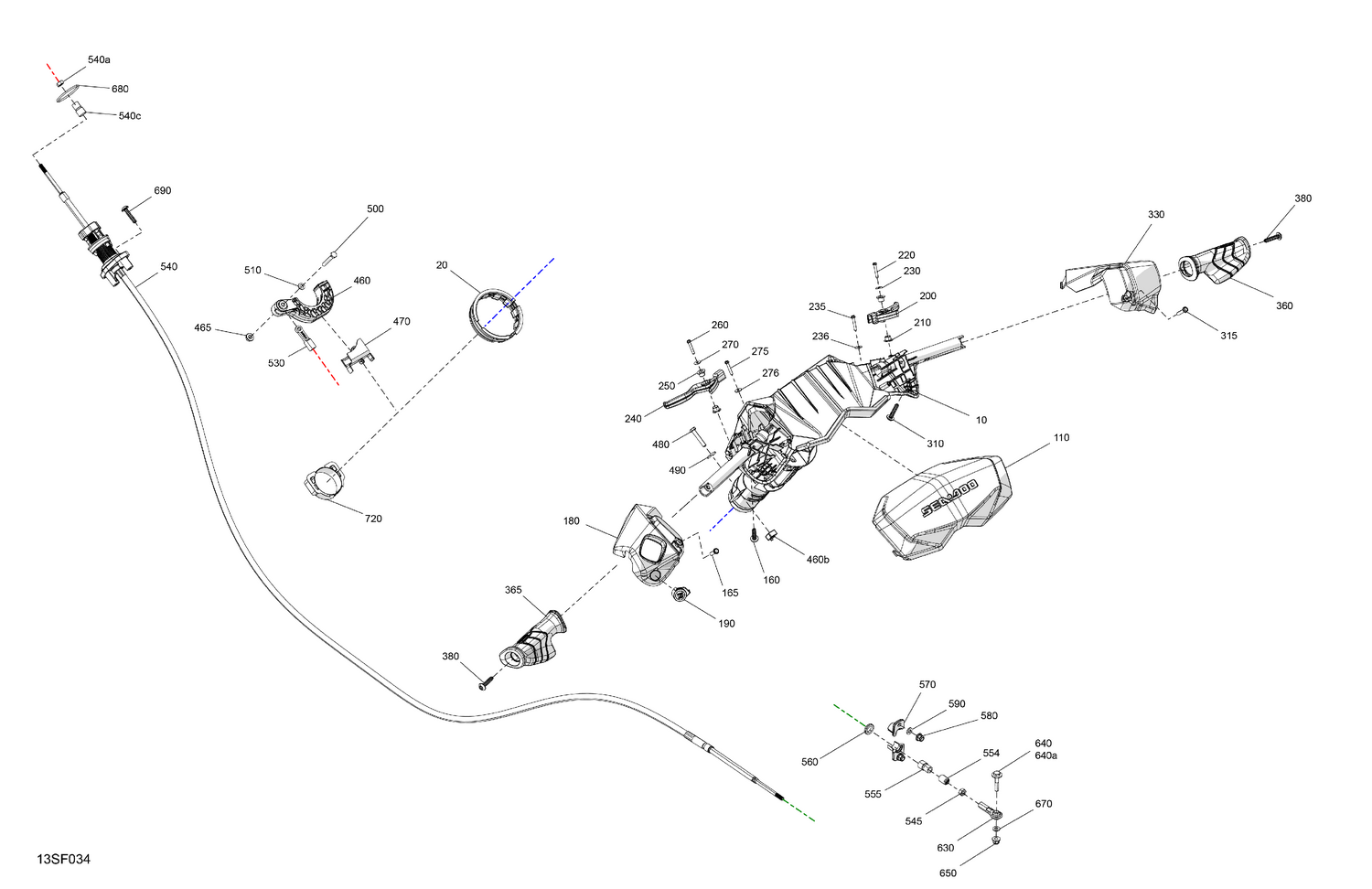

03- Mechanic - Steering
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277002291 | Steering Column |
| 20 | 277001874 | Wear Ring |
| 110 | 277002258 | Bright White, Handlebar Trim |
| 160 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 165 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 180 | 277002260 | LH Cover |
| 190 | 277002327 | Red Button Switch |
| 200 | 277002138 | Hand Lever Accelerator |
| 210 | 293900091 | Bushing |
| 220 | 241142560 | Hex. Flange Screw K40 X 25 |
| 230 | 234042600 | Flat Washer 4 mm, Stainless |
| 235 | 241142560 | Hex. Flange Screw K40 X 25 |
| 236 | 234042600 | Flat Washer 4 mm, Stainless |
| 240 | 277001945 | Reverse Handle |
| 250 | 293900091 | Bushing |
| 260 | 241142560 | Hex. Flange Screw K40 X 25 |
| 270 | 234042600 | Flat Washer 4 mm, Stainless |
| 275 | 241142560 | Hex. Flange Screw K40 X 25 |
| 276 | 234042600 | Flat Washer 4 mm, Stainless |
| 310 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 315 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 330 | 277002261 | RH Cover |
| 360 | 277001946 | Deep Black, RH Handle Grip |
| 365 | 277001958 | Deep Black, LH Handle Grip |
| 380 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 460b | 269502544 | Nut Housing M6 |
| 465 | 233261200 | Nut Flange Elastic M6 |
| 470 | 277001654 | Spacer |
| 480 | 207163560 | Hex. Screw M6 X 35 |
| 490 | 234062600 | Flat Washer M6, Stainless |
| 500 | 207064060 | Hex. Screw M6 X 40 |
| 510 | 234061600 | Stainless Flat Washer M6 |
| 530 | 277001180 | Ball Joint |
| 540a | 211100056 | Hex. Nut 1/4"-28 |
| 540c | 277001583 | End Piece |
| 545 | 211100056 | Hex. Nut 1/4"-28 |
| 554 | 277001582 | Wiper Rod |
| 555 | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001856 | Ring Halves |
| 580 | 232561200 | Brass Elastic Stop Nut M6 |
| 590 | 234061600 | Stainless Flat Washer M6 |
| 630 | 277000775 | Ball Joint |
| 640a | 250000969 | Hex Screw SEMS M6X35, SS |
| 650 | 232561200 | Brass Elastic Stop Nut M6 |
| 670 | 234061600 | Stainless Flat Washer M6 |
| 680 | 293300176 | O-Ring |
| 690 | 250000879 | Plastite Torx Screw M6.81X30 |
