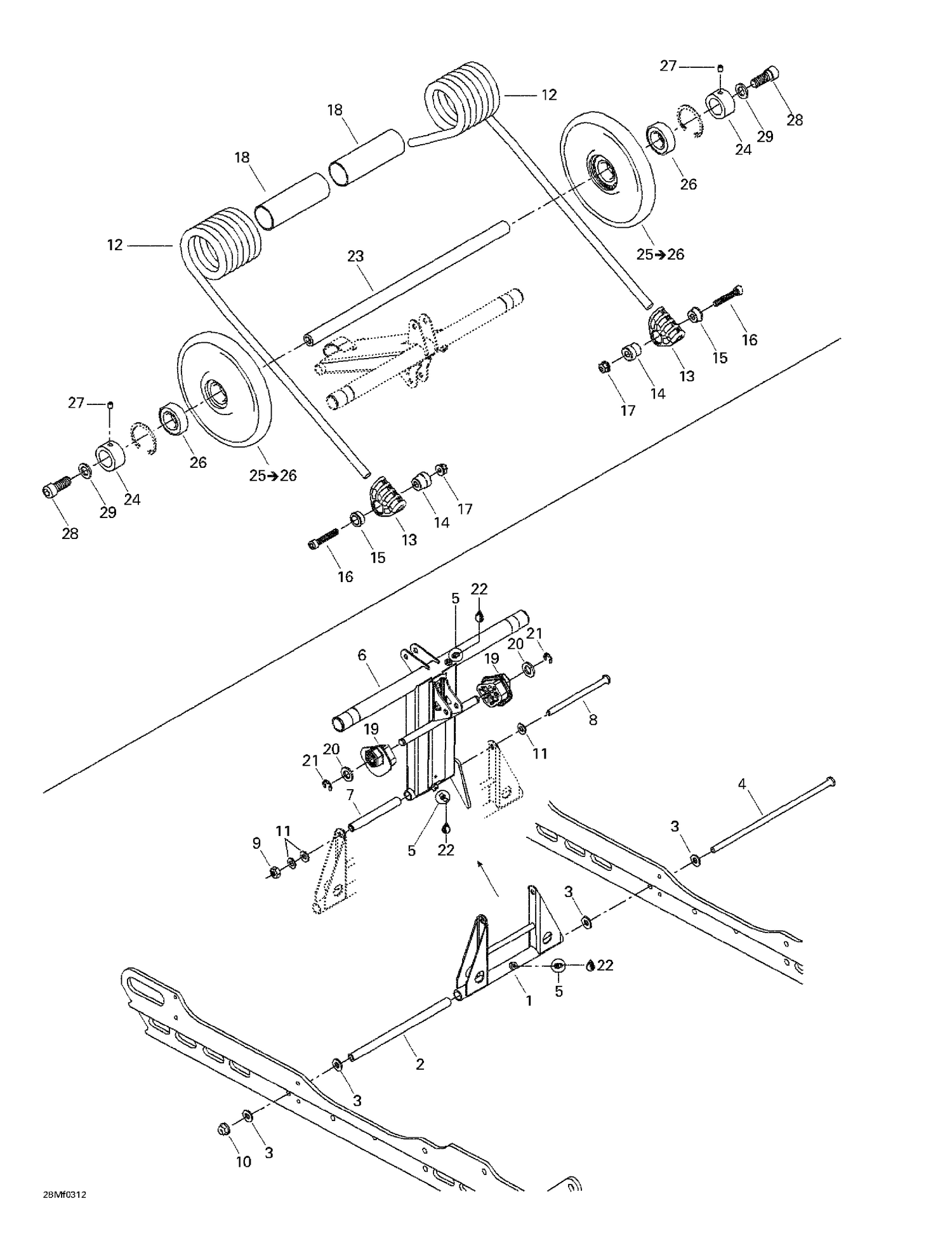

| Ref | Part Number | Description |
|---|
| 1 |
503189793 |
Pivot Arm |
| 2 |
503189156 |
Pivot Arm Axle |
| 3 |
503189157 |
Washer |
| 4 |
503192440 |
Bolt M8 X 248mm This part replaces 732601198. |
| 5 |
408200700 |
Grease Fitting |
| 6 |
503190275 |
Rear Arm |
| 7 |
503144300 |
Upper Axle, Pivot Arm |
| 8 |
732601197 |
Bolt M8, Short |
| 9 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
234081410 |
Flat Washer 8 mm |
| 12 |
503189522 |
RH SPRING - Call your local BRP dealership |
| 13 |
503189657 |
Spring Support |
| 14 |
503188934 |
Spring Guide Axle |
| 15 |
503188929 |
CUSHION RETAINER - Call your local BRP dealership |
| 16 |
205084544 |
Socket Head Screw M8 X 45 |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 18 |
572086000 |
BUSHING - Call your local BRP dealership |
| 19 |
503190023 |
LH CAM ADJUSTER - Call your local BRP dealership |
| 20 |
234021410 |
Flat Washer 12 mm |
| 21 |
293370013 |
E-Circlip |
| 22 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 23 |
503189711 |
Rear Cross Shaft |
| 24 |
503168800 |
Retaining Ring |
| 26 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 27 |
206260844 |
Socket Set Screw M6 X 8 |
| 28 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 503189524 |
LH |
SPRING - Call your local BRP dealership 503189524 |
| 503189524 |
Ressort |
GA - Appelez votre concessionnaire BRP local 503189524 |
| 503190022 |
Réglage |
De Came DR - Appelez votre concessionnaire BRP local 503190022 |
| 503190022 |
RH |
CAM ADJUSTER - Call your local BRP dealership 503190022 |
