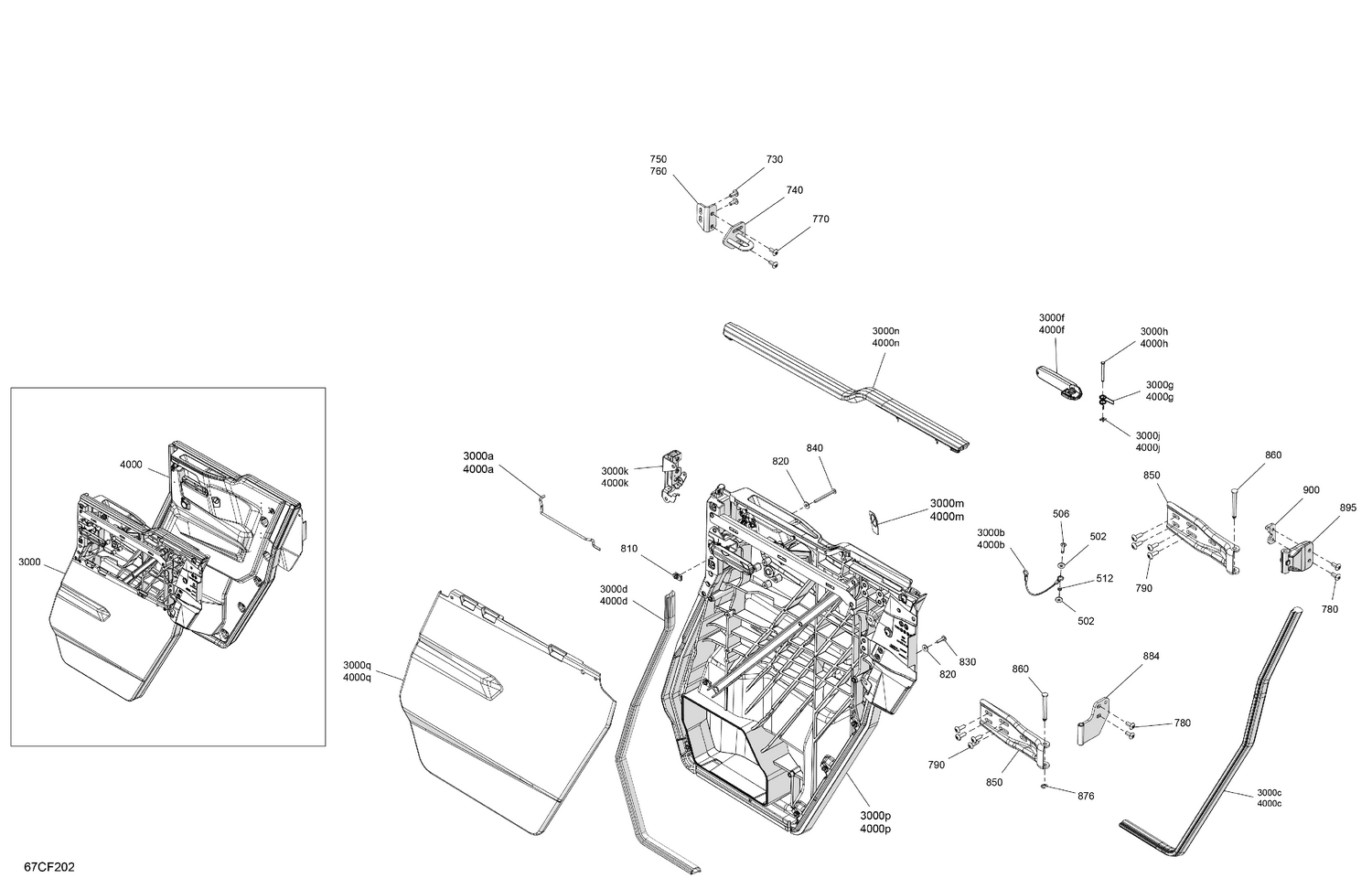

07- Enclosure Cab - Rear Doors
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 502 | 250200029 | Washer M6 |
| 506 | 250000722 | Torx Screw M6 X 20 |
| 512 | 708300737 | Bushing |
| 730 | 250000953 | Torx Truss M/S M8 X 20 |
| 740 | 705801024 | Rear Door Stricker |
| 750 | 705800851 | LH Striker Support |
| 760 | 705800852 | RH Support Striker |
| 770 | 250000953 | Torx Truss M/S M8 X 20 |
| 780 | 250000953 | Torx Truss M/S M8 X 20 |
| 790 | 250000874 | Torx Truss M8 X 25 |
| 810 | 250100198 | Panel Nut M6 X 1.0 |
| 820 | 234062670 | Stainless Steel Flat Washer |
| 830 | 250000807 | Torx Truss Screw M6 X 25 |
| 840 | 250000954 | Torx Screw M6 X 70 |
| 850 | 705800751 | Door Hinge |
| 860 | 705800781 | Hinge Pin |
| 876 | 293370125 | Retaining Ring |
| 884 | 705801025 | Lower Hinge |
| 895 | 705800802 | Upper Door Hinge |
| 900 | 705210255 | Support |
| 3000a | 705801454 | Guide Pin |
| 3000b | 705800903 | Retaining Cable |
| 3000c | 705801382 | Gasket |
| 3000d | 705801456 | Gasket |
| 3000f | 705017152 | Door Handle |
| 3000g | 705013062 | Handle Spring |
| 3000h | 705207440 | Handle Axle |
| 3000j | 705601875 | External Retaining Ring |
| 3000k | 705801466 | LH Rear Door Latch |
| 3000m | 704909996 | LH Door Pictogram Label |
| 3000n | 705800915 | LH Upper Door Trim |
| 3000p | 705801385 | LH Interior Door Panel |
| 3000q | 705800718 | LH Lower Door Panel |
| 4000a | 705801455 | Guide Pin |
| 4000b | 705800903 | Retaining Cable |
| 4000c | 705801382 | Gasket |
| 4000d | 705801456 | Gasket |
| 4000f | 705017152 | Door Handle |
| 4000g | 705013062 | Handle Spring |
| 4000h | 705207440 | Handle Axle |
| 4000j | 705601875 | External Retaining Ring |
| 4000k | 705801467 | RH Rear Door Latch |
| 4000m | 704909998 | RH Door Pictogram Label |
| 4000n | 705800916 | RH Upper Door Trim |
| 4000p | 705801387 | RH Interior Door Panel |
