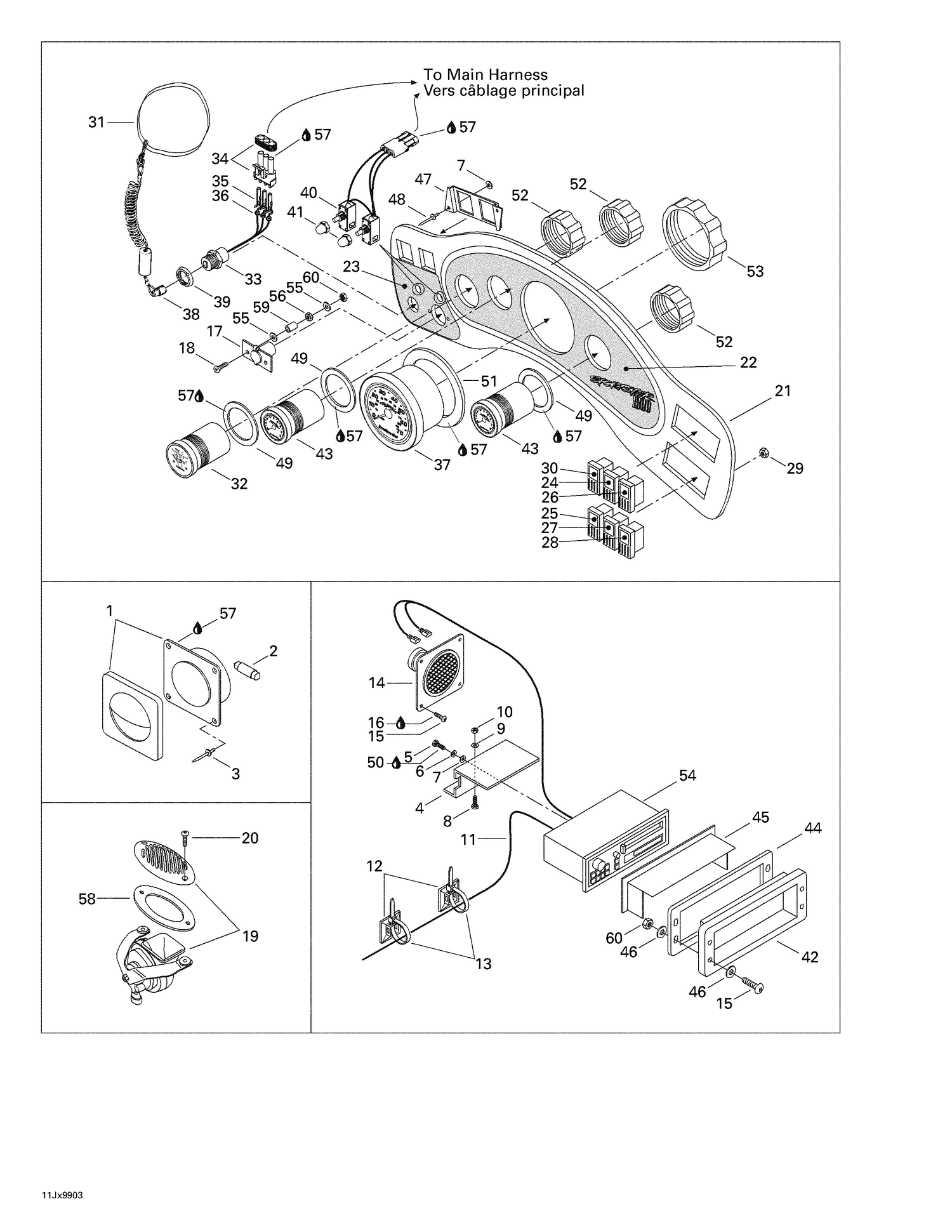

10- Electrical Accessories 1
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204470081 | BULB - Call your local BRP dealership |
| 3 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 4 | 204470194 | Radio Support |
| 5 | 208651060 | SCREW M5 X 10 - Call your local BRP dealership |
| 6 | 234151601 | Helical Lock Washer M5 |
| 7 | 234052600 | Flat Washer 5 mm, Stainless |
| 8 | 208462060 | PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 9 | 234062600 | Flat Washer M6, Stainless |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 |
| 11 | 204470028 | Antenna |
| 12 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 13 | 293750001 | Tie Wrap 94 mm |
| 14 | 204470029 | Speaker |
| 15 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 16 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 18 | 208444560 | Screw M4 x 45 |
| 19 | 204470801 | HORN - Call your local BRP dealership This part replaces 204470264. |
| 20 | 211000192 | Screw 3/16 x 1 |
| 22 | 204470300 | Dash Plate |
| 23 | 204470302 | Starter Plate |
| 24 | 204470099 | BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership |
| 25 | 204470100 | LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 26 | 204470101 | HORN SWITCH ASS'Y - Call your local BRP dealership |
| 27 | 204470102 | COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 28 | 204470103 | Fuel Tank Reserve Switch |
| 29 | 232581600 | Hex. Elastic Nut M8 |
| 30 | 204470011 | VENTILATION SWITCH ASS'Y - Call your local BRP dealership |
| 31 | 204470025 | Safety Strap |
| 32 | 204470319 | Fuel/Oil Gauge |
| 34 | 278000273 | Male Housing, 3 Circuits |
| 35 | 278000223 | Female Terminal |
| 36 | 278000218 | Wire Seal |
| 37 | 204470320 | Speedometer Gauge |
| 38 | 278002199 | Safety Lanyard, Antitheft This part replaces 278001277. |
| 39 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 41 | 278000565 | IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 42 | 204470266 | Radio Cover |
| 44 | 204470257 | RADIO COVER GASKET - Call your local BRP dealership |
| 45 | 204470270 | Radio Splashguard |
| 46 | 234040600 | Flat Washer 4 mm |
| 47 | 204470203 | Facia Bracket |
| 48 | 293150013 | Pop Rivet 3/16" |
| 49 | 204470308 | Gasket |
| 50 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 51 | 204470309 | Gasket |
| 52 | 204470146 | Gauge Nut |
| 53 | 204470171 | Gauge Nut |
| 54 | 204470331 | Radio Tape |
| 55 | 234042600 | Flat Washer 4 mm, Stainless |
| 56 | 232041600 | NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership |
| 57 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 58 | 293250089 | Horn Gasket |
| 59 | 277000449 | SPACER - Call your local BRP dealership |
| 204470115 | Facia | Ass'y (5680) 204470115 |
| 204470246 | Starter | Plate 204470246 |
| 204470247 | Dash | Plate 204470247 |
