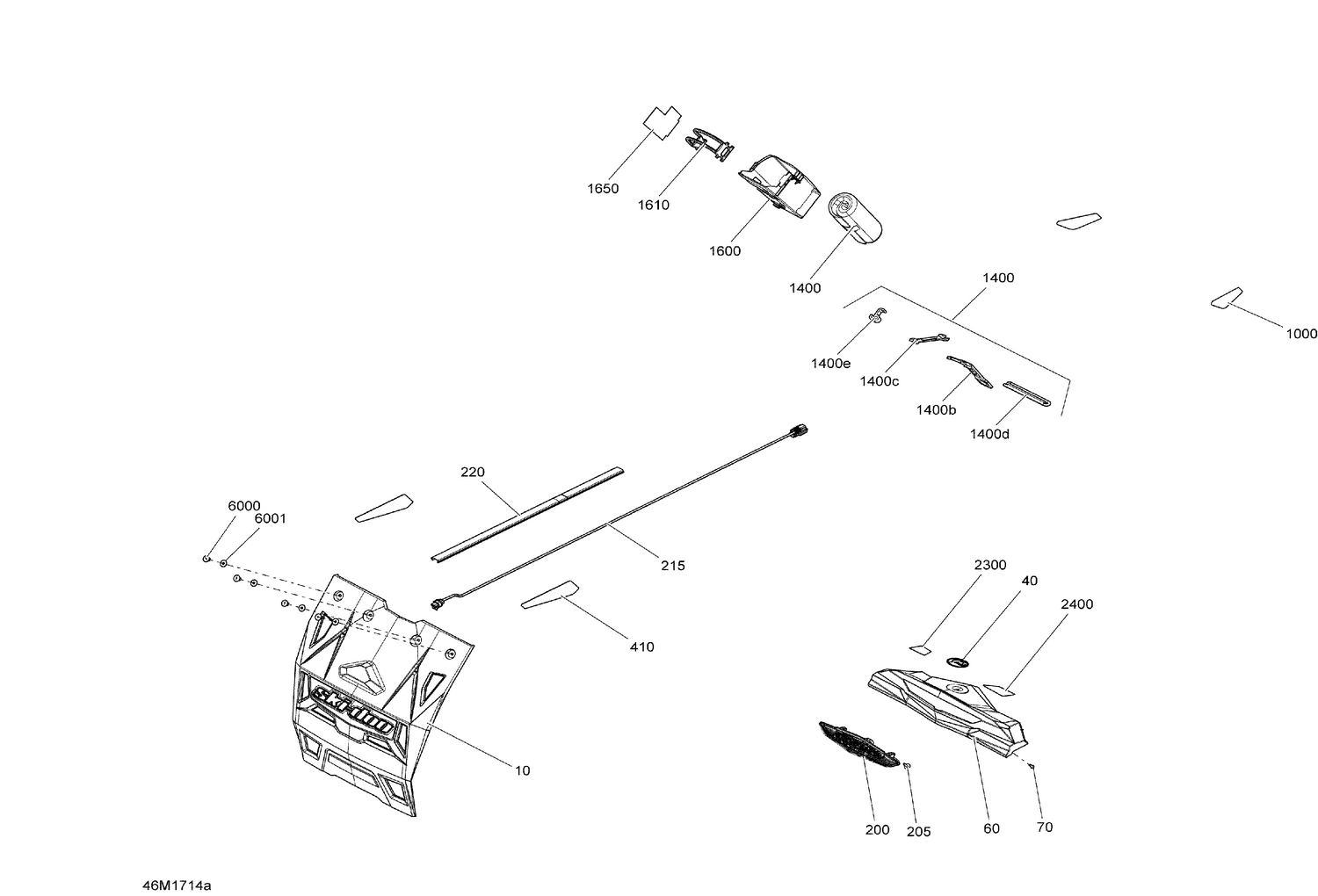

09- Utilities - All Models
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001510 | Snow Guard |
| 40 | 516008738 | BRP Logo 48mm This part replaces 516006887. |
| 60 | 511000810 | Deep Black, Light Fairing |
| 70 | 241141340 | Hex. Screw K40 X 13 |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 215 | 515178064 | Wiring Harness |
| 220 | 520000829 | Radiator Trim |
| 410 | 520001238 | Red, LH Rear Reflector |
| 410 | 520001239 | Red Rh Rear Reflector |
| 1000 | 520000891 | Yellow, RH Front Reflector |
| 1000 | 520000892 | Yellow, LH Front Reflector |
| 1400 | 520001670 | Tools Kit |
| 1400a | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 1400b | 529000046 | Set Key, 16/21 mm |
| 1400c | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 1400d | 219704403 | Was 412500100 Rope-Starter |
| 1400e | 529000060 | Starter Grip |
| 1400f | 520001499 | Wrench |
| 1600 | 520000894 | Tool Kit Rack |
| 1610 | 520000528 | Latch |
| 1650 | 514054827 | Reflective Sheet |
| 2300 | 516006914 | Security Label, XS |
| 2400 | 516005058 | Warning Decal, Safety |
| 6000 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
