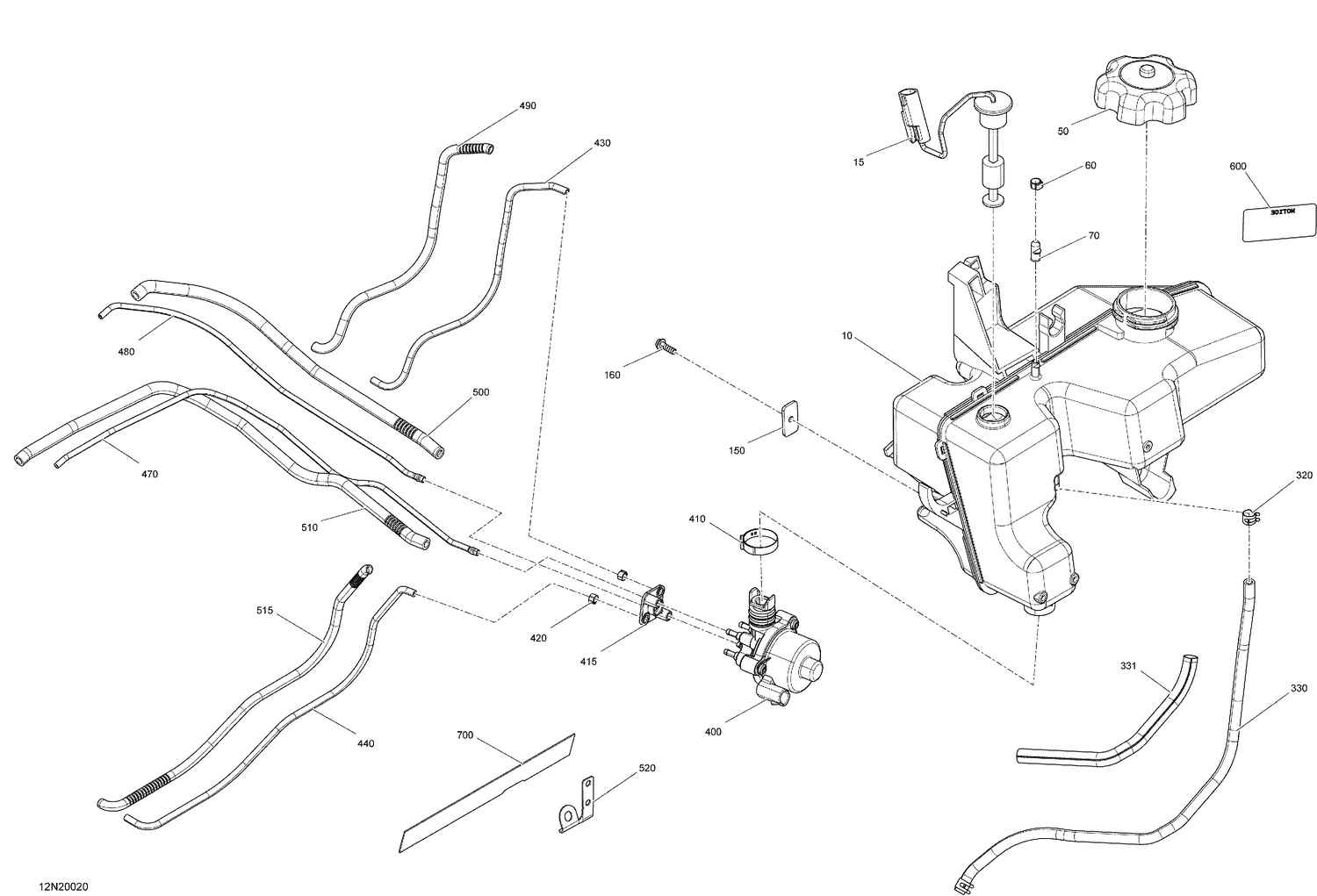

02- Engine - Oil
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000340 | Oil Tank |
| 15 | 515176978 | Level Sensor |
| 50 | 519000273 | Cap |
| 60 | 293650043 | Oetiker Gear Clamp |
| 70 | 519000216 | Cap |
| 150 | 519000179 | Bracket |
| 160 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 320 | 414554800 | Spring Clamp |
| 330 | 219704410 | Polyurethane Hose 10000Mm Long |
| 331 | 219704407 | Tubing 10 MM 1000MM Long |
| 400 | 519000376 | Pump_Hydraulic This part replaces 519000323. |
| 410 | 293650099 | Crimp Clamp |
| 415 | 519000271 | Bracket |
| 420 | 293650100 | Oetiker Clamp |
| 430 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 440 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 470 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 480 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 490 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 500 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 510 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 515 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 520 | 519000245 | Bracket |
| 600 | 516008613 | Warning Decal |
