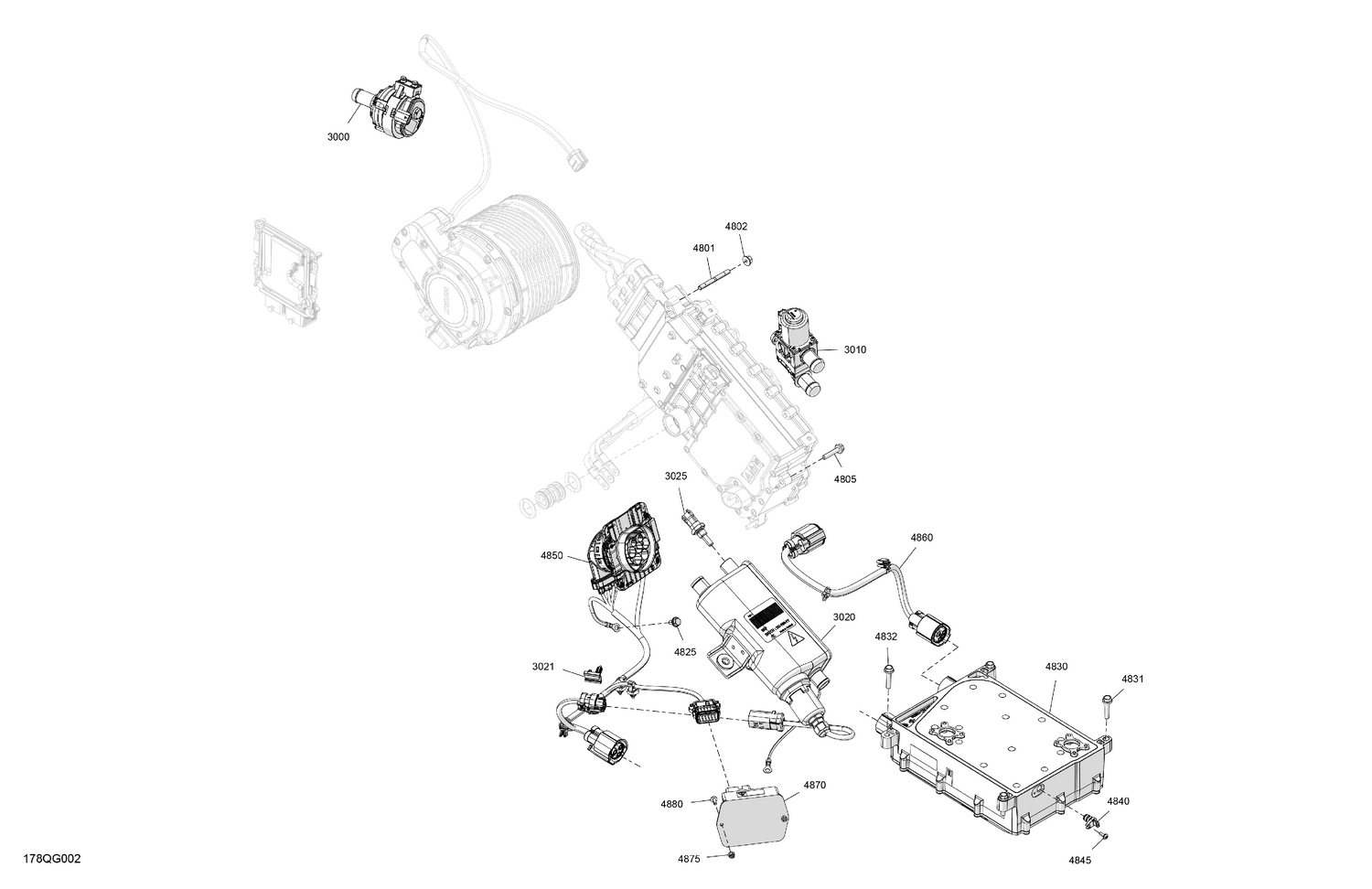

08- Electric - High Voltage
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3000 | 709201048 | Cooling Pump |
| 3010 | 709201162 | Cooling Solenoid Valve |
| 3020 | 712000226 | BLOCK HEATER |
| 3021 | 293730118 | Fastener |
| 3025 | 278002895 | Temperature Sensor |
| 4801 | 509001410 | Threaded Rod |
| 4802 | 233161464 | Hex. Flange Nut M6 |
| 4805 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 4825 | 207561234 | Hex. Flange Screw M6 X 12 |
| 4831 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 4832 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 4840 | 293710201 | Plug Ass'y |
| 4845 | 250001298 | Torx-Head Screw M4 X 10 |
| 4850 | 712000173 | High Voltage Cable Charging Port |
| 4860 | 712000204 | High Voltage Charger Cable |
| 4870 | 712000162 | Heater Module |
| 4875 | 232541484 | Elastic Stop Nut M4 |
