Home / BRP / EVINRUDE / 1993 / 3.30 / 09- Seat

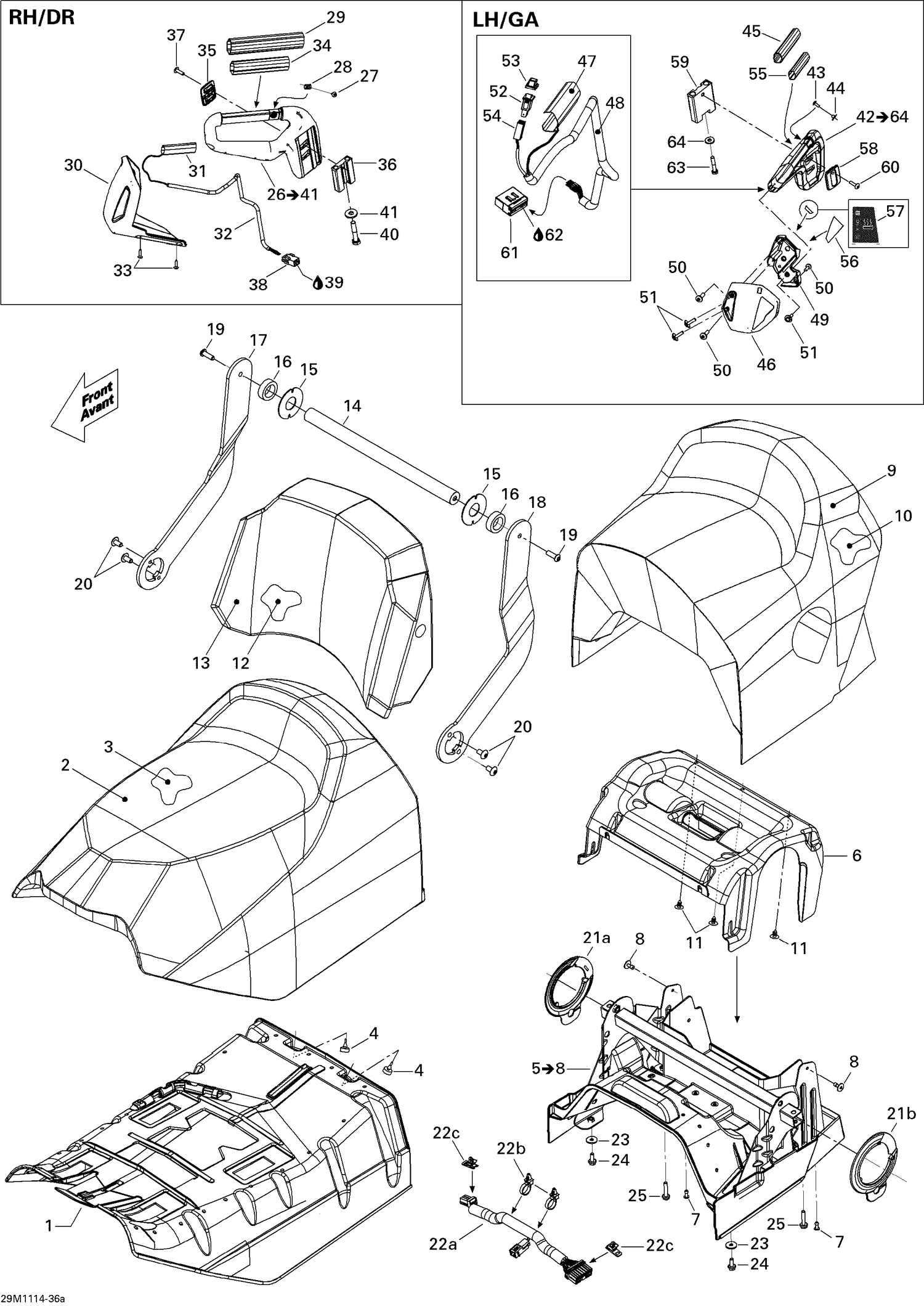

09- Seat

09- Seat

Parts (63)

RefPart NumberDescription
1 510004775 Front Seat Base
2 510005181 Seat Cover
3 510004777 Front Seat Foam
4 708000759 Rubber Stopper
6 510004423 Foam Support
7 390410100 Pop Rivet 3/16”
8 293150100 Pop Rivet 3/16"
9 510005187 Seat Cover
10 510004791 Rear Seat Foam
11 414644300 Black, Dart
12 510004782 Backrest Foam
13 510005309 Backrest Cover
14 510004377 Upper Backrest Axle
15 510004379 Washer
16 510004378 Rubber Shim
17 510004373 RH ARM, BLACK - Call your local BRP dealership
18 510004375 LH ARM, BLACK - Call your local BRP dealership
19 250000283 Torx Screw M8 X 25, Scotch Grip
20 250000746 Torx Truss Screw M8 X 16 This part replaces 250000198.
21a 510004883 Spacer RH
21b 510004884 SPACER LH - Call your local BRP dealership
22a 515176766 Seat Harness
22b 515175220 Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership
22c 515175283 Housing Support
23 224061201 Flat Washer
24 207361644 Hex. Screw M6 X 16, Scotch Grip
25 207563044 Hex. Flange Screw M6 X 30, Scotch Grip
27 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
28 293100003 Nut Welded, M6
29 510004449 Handle Grip
30 510005009 RH Air Deflector
31 515176999 Heated Element
32 219704426 Was 515175506 Tubing
33 250000725 Screw M4 X 16 This part replaces 250000113.
34 510005814 Reinforcement Handle This part replaces 510005011.
35 510006602 Passenger Handle Trim This part replaces 510004405.
36 510005218 HANDLE LINK - Call your local BRP dealership
37 250000745 Hex Torx Truss M8 X30 This part replaces 250000197.
38 515175494 Male Housing, 3 Circuits
39 219704453 Was 293550004 Dielectric Grease, 150 g
40 207084544 Hex. Screw M8 X 45
41 503183200 Yellow, Washer
43 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
44 293100003 Nut Welded, M6
45 510004449 Handle Grip
46 510005010 LH Air Deflector
47 515176999 Heated Element
48 219704426 Was 515175506 Tubing
49 510005036 Switch Housing
50 250000720 Torx Screw K50 X 16 This part replaces 250000146.
51 250000725 Screw M4 X 16 This part replaces 250000113.
52 510004413 Rocker Switch
53 510004414 Switch Protector
54 515176697 Handle Harness
55 510005814 Reinforcement Handle This part replaces 510005011.
56 516003937 Connector Decal
57 516003816 Heated Handle Decal
58 510006602 Passenger Handle Trim This part replaces 510004405.
59 510005218 HANDLE LINK - Call your local BRP dealership
60 250000745 Hex Torx Truss M8 X30 This part replaces 250000197.
61 515176033 Male Connector
62 219704453 Was 293550004 Dielectric Grease, 150 g
63 207084544 Hex. Screw M8 X 45
