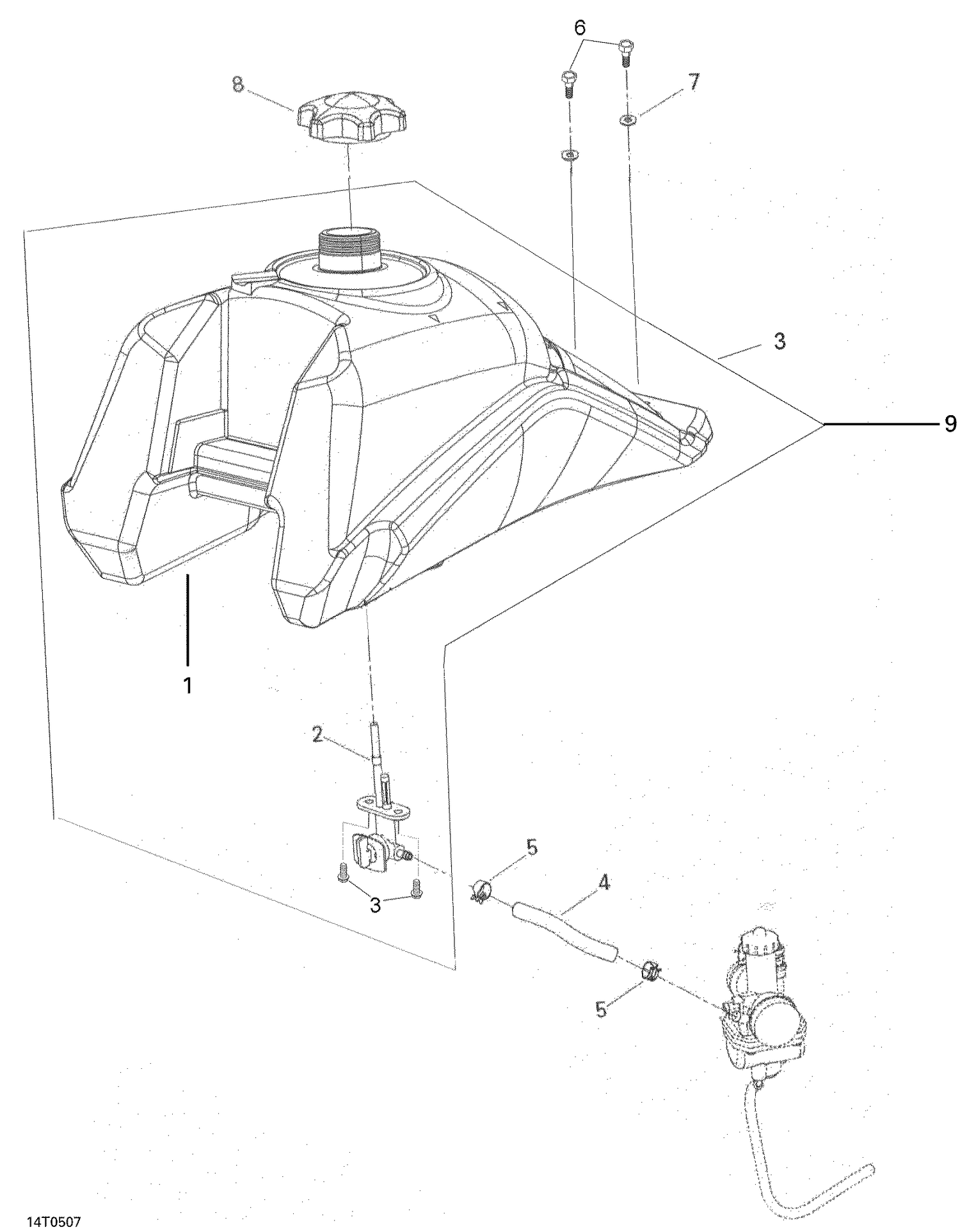

02- Fuel System
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A17500179000 | FUEL TANK - Call your local BRP dealership |
| 2 | 709000082 | Fuel Valve |
| 3 | A960000601408C | SCREW-HEX.FLANGE - Call your local BRP dealership |
| 4 | 219704549 | Hose This part replaces 219704439. |
| 5 | 414415200 | Spring Clamp |
| 6 | A9200306020 | SCREW-HEX.HD.M6 x 20 - Call your local BRP dealership |
| 7 | 250200029 | Washer M6 |
| 8 | A17620179000 | FUEL CAP - Call your local BRP dealership |
