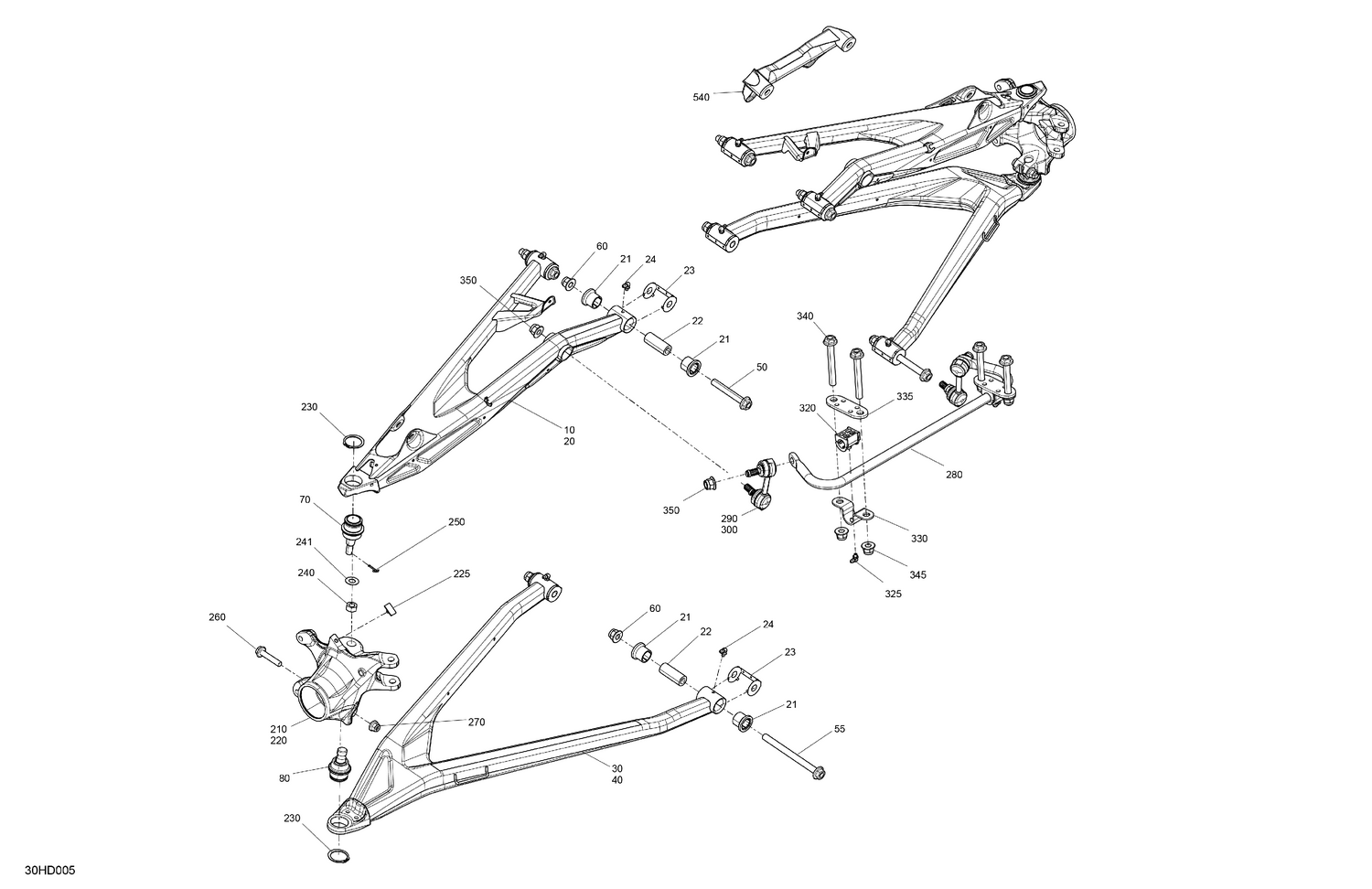

05- Suspension - Front Components
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715011456 | Legion Red, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205673. |
| 20 | 715011455 | Legion Red, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205674. |
| 21 | 706204409 | Suspension Arm Bushing |
| 22 | 706202257 | Interior Bushing |
| 23 | 706202300 | Wear Plate |
| 24 | 293550056 | Grease Fitting 90° |
| 30 | 715010639 | Legion Red, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205677. |
| 40 | 715010646 | Legion Red, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205678. |
| 50 | 250000859 | Flange Screw M12 X 85 |
| 55 | 250000861 | Flange Screw M12 X 145 |
| 60 | 250001195 | Elastic Flange Nut M12 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 210 | 706204785 | LH Front Knuckle |
| 220 | 706204786 | RH Front Knuckle |
| 225 | 706202502 | Wear Plate |
| 230 | 293370035 | Circlip |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 260 | 207605046 | Hex.Flange Screw Din.6921 |
| 270 | 233201436 | Hex. Flange Elastic Nut M10 |
| 280 | 706203953 | Stabilizer Bar Ass'y |
| 290 | 706203611 | LH Stabilizer Bar Link |
| 300 | 706203612 | RH Stabilizer Bar Link |
| 320 | 706204564 | Stabilizer Bar Bushing |
| 325 | 293550056 | Grease Fitting 90° |
| 330 | 706205649 | Mounting Clamp |
| 335 | 706202551 | Support Plate |
| 340 | 250000876 | Hex. Flange Screw M12 X 95 |
| 345 | 250001195 | Elastic Flange Nut M12 |
| 350 | 250001195 | Elastic Flange Nut M12 |
