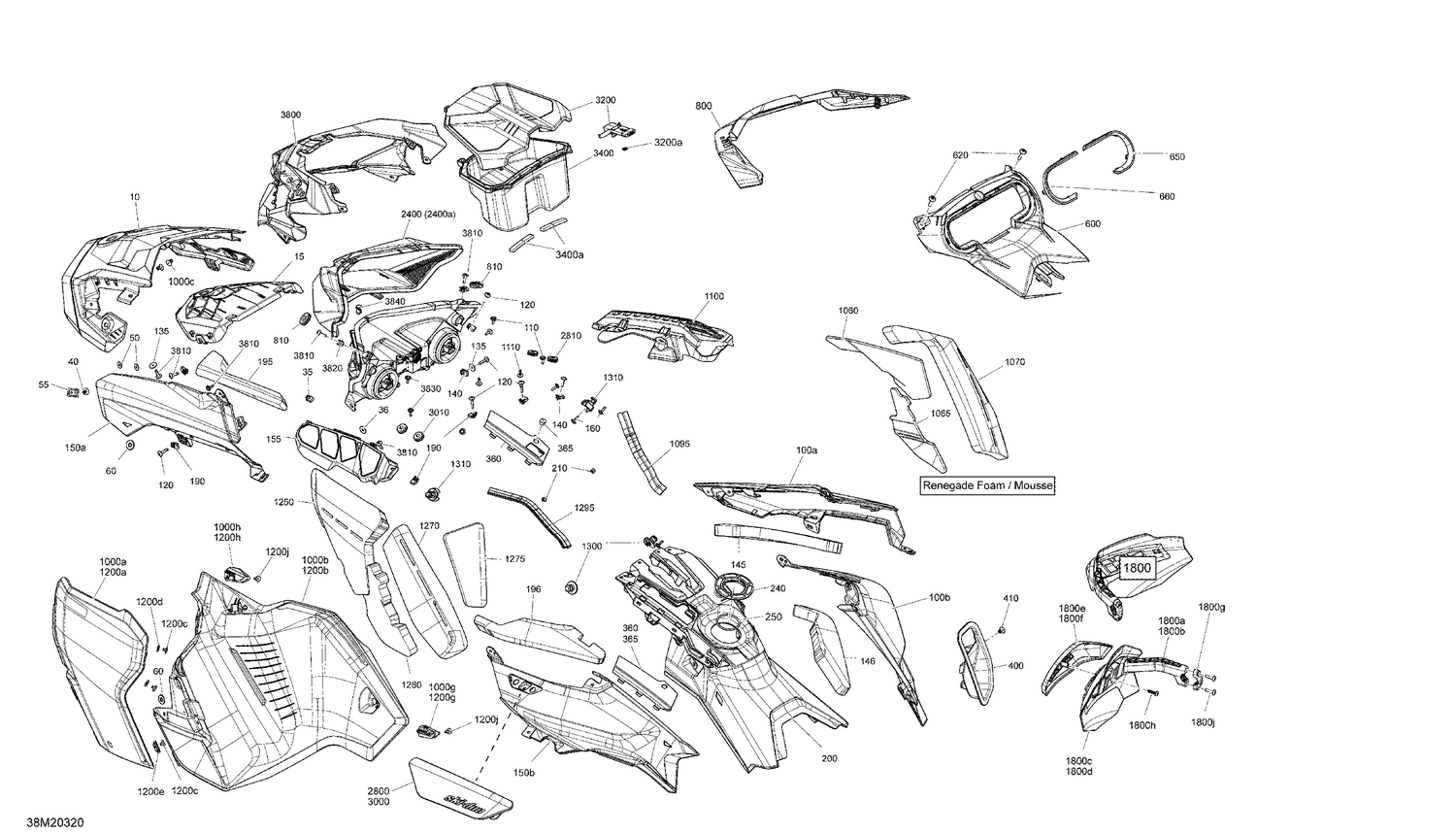

| Ref | Part Number | Description |
|---|
| 10 |
517306284 |
Deep Black, Center Hood |
| 15 |
517306424 |
Center Hood Grille |
| 35 |
250000958 |
Panel Nut M5 X 0.8 |
| 36 |
250200166 |
Washer |
| 40 |
293150104 |
Pop Rivet 3/16" |
| 50 |
517124300 |
Washer |
| 55 |
517305109 |
Rivet Plate |
| 60 |
508000853 |
Push Nut |
| 100a |
517307307 |
Deep Black, RH Front Hood |
| 100b |
517307308 |
Deep Black, RH Rear Hood |
| 110 |
250000725 |
Screw M4 X 16 |
| 120 |
250000528 |
Torx Screw M5 X 20 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 145 |
517305763 |
RH Front Hood Foam |
| 146 |
517306001 |
RH Hood Foam |
| 150a |
517307310 |
LH Front Hood |
| 150b |
517307311 |
LH Rear Hood |
| 155 |
517306470 |
LH Hood Trim |
| 160 |
250000725 |
Screw M4 X 16 |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 195 |
517305764 |
LH Front Hood Foam |
| 196 |
517306002 |
LH Hood Foam |
| 200 |
517306830 |
Rear Console |
| 210 |
233251434 |
Flange Elastic Nut M5 |
| 240 |
517306602 |
Console Nut |
| 250 |
706002839 |
O-Ring |
| 360 |
517306582 |
LH Front Console |
| 365 |
572051500 |
Cap |
| 400 |
517306302 |
Reverse Lever Trim |
| 410 |
293150104 |
Pop Rivet 3/16" |
| 600 |
517306289 |
Gauge Support |
| 620 |
250000587 |
Torx Screw M5 X 26 |
| 650 |
705012351 |
Deep Black, RH Trim Gauge |
| 660 |
705012349 |
Deep Black, LH Trim Gauge |
| 800 |
517305875 |
Deep Black, Wind Deflector |
| 810 |
517303756 |
Grommet |
| 1000a |
517307314 |
Deep Black, RH Front Panel |
| 1000b |
517306293 |
RH Rear panel |
| 1000g |
517305773 |
RH Rear Latch |
| 1000h |
517305979 |
RH Front Latch |
| 1060 |
517306461 |
Foam |
| 1065 |
517306495 |
Foam |
| 1070 |
517306845 |
RH Rear Panel Foam |
| 1095 |
219704371 |
Neoprene Seal 3000 mm Long |
| 1100 |
517308292 |
RH Hood Grille Ass'y This part replaces 517307049. |
| 1110 |
250000725 |
Screw M4 X 16 |
| 1200a |
861805589 |
Deep Black, LH Front Panel Kit This part replaces 517307322. |
| 1200b |
517308780 |
Deep Black, LH Rear Panel This part replaces 517306296. |
| 1200c |
293150104 |
Pop Rivet 3/16" |
| 1200d |
517124300 |
Washer |
| 1200e |
517305109 |
Rivet Plate |
| 1200g |
517305774 |
LH Rear Latch |
| 1200h |
517305980 |
LH Front Latch |
| 1200j |
250000725 |
Screw M4 X 16 |
| 1250 |
517306463 |
Foam |
| 1260 |
517306464 |
Foam |
| 1270 |
517306465 |
Foam |
| 1275 |
517306496 |
LH Rear Panel Foam |
| 1295 |
219704371 |
Neoprene Seal 3000 mm Long |
| 1300 |
517305985 |
Rear Stud |
| 1310 |
517305988 |
Front Stud |
| 1800 |
Not |
Available As Spare Part - Hand Air Deflector |
| 1800a |
517305290 |
Deep Black, LH Arm |
| 1800b |
517305293 |
Deep Black, RH Arm |
| 1800c |
517305291 |
LH Deflector, Smoked 60% |
| 1800d |
517305294 |
RH Deflector, Smoked 60% |
| 1800e |
517305601 |
Deep Black, LH Cap, SKI-DOO |
| 1800f |
517305602 |
Deep Black, RH Cap SKI-DOO |
| 1800g |
517305296 |
Clamp |
| 1800h |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1800j |
250000724 |
Torx Screw M5 X 20 |
| 2400a |
415130081 |
Bulb |
| 2800 |
517306049 |
RH Hood Plate |
| 2810 |
XXX |
Not Available As Spare Parts |
| 3000 |
517306050 |
LH Hood Plate |
| 3010 |
XXX |
Not Available As Spare Parts |
| 3200a |
732610072 |
Push Nut |
| 3400a |
517305157 |
Seal Joint |
| 3800 |
517306301 |
Headlamp Fairing |
| 3810 |
250000528 |
Torx Screw M5 X 20 |
| 3820 |
250000958 |
Panel Nut M5 X 0.8 |
| 3830 |
250000725 |
Screw M4 X 16 |
