Parts Catalog

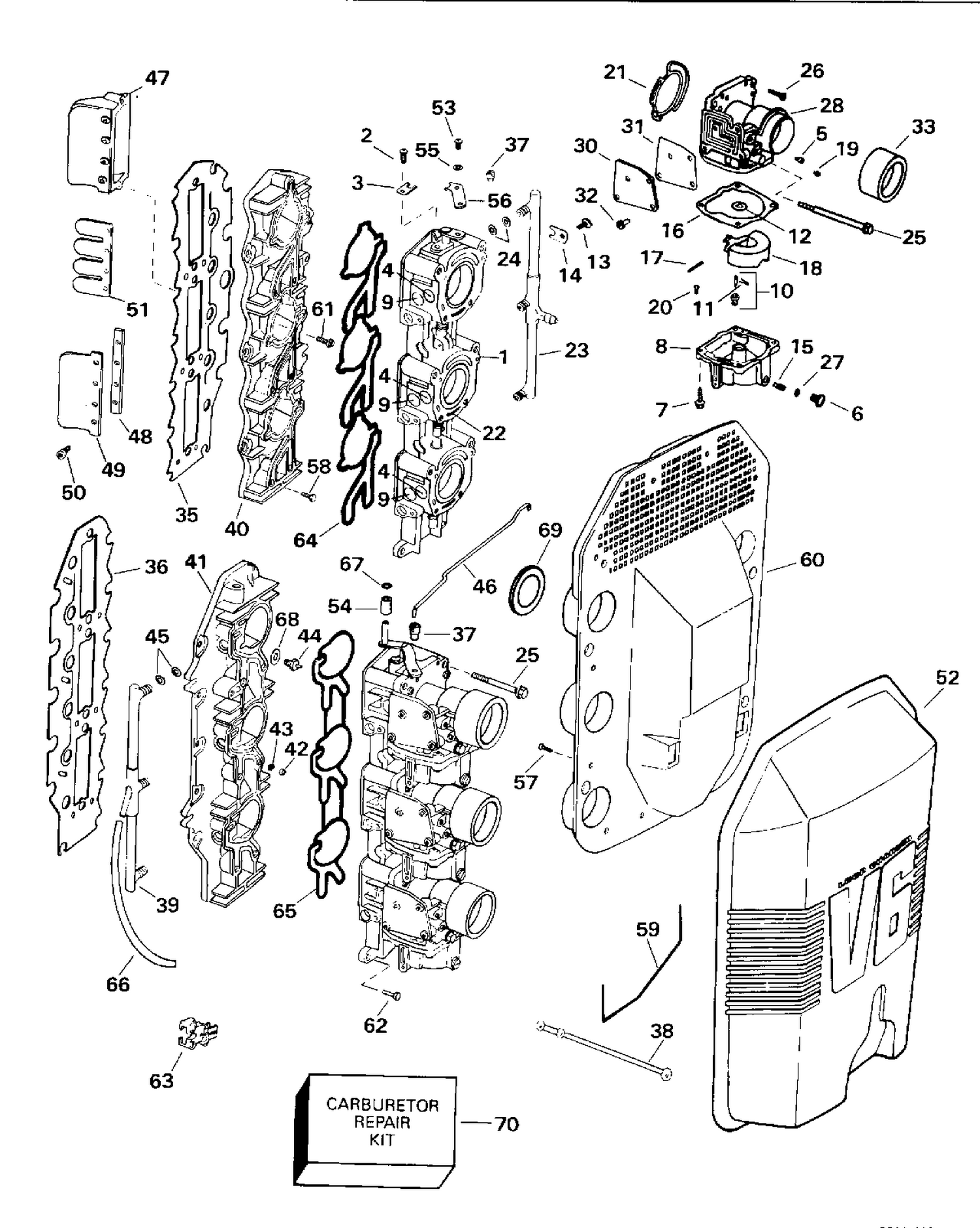

CARB. & INTAKE MANIFOLD 150/175 "A" OR "C" MODEL SUFFIX

Parts (47)

Ref	Part Number	Description
1	0435079	THROTTLE BODY AY., Port, 150 XP, GT, 175
1	0435691	THROTTLE BODY AY., Stbd.
1	0435692	THROTTLE BODY AY., Port
1	0436794	THROTTLE BODY AY., Stbd., 150JL
1	0436795	THROTTLE BODY AY., Port, 150JL
1	0436835	THROTTLE BODY AY., Stbd., 150XP, GT
5	0322936	ORIFICE, # 28
5	0325829	HIGH SPEED ORIFICE, No. 42
11	0336842	CLIP, SPRING
19	0325827	HIGH SPEED ORIFICE, No. 44
19	0325828	ORIFICE #43, 250
21	0335076	SEAL, Carb, body
28	0435082	CARB. BODY AY., 150 XP, GT 175
28	0436601	CARB. BODY AY., 150
28	CARB.	BODY AY., 150JL
30	0335114	COVER PLATE
31	0335115	GASKET, Cover plate
35	0336226	GASKET, Manifold to block - Port
36	0336227	GASKET, Manifold to block - stbd
37	0318165	DISPOSITIF DE RETENUE, tringlerie de carburateur
39	0433521	BALANCE TUBE
40	0433241	INTAKE MANIFOLD Assy, Port
41	0433249	INTAKE MANIFOLD Assy, Stbd
44	0335121	FITTING, Primer
46	0343269	LINK, Port to stbd. carburetor This part replaces 0335256.
47	0389823	CLAPET
52	0437372	AIR SILENCER Assy This part replaces 0336094.
53	0335739	SCREW, Conn. brkt. to mntg. brkt.
54	0432639	GALET, contre-came
56	0335257	LEVER, Linkage adjustment
59	SEAL,	Cover
60	0437372	AIR SILENCER Assy This part replaces 0336093.
62	0323626	SCREW
63	0335729	RETAINER, Balance tube
64	0335403	SEAL, Manifold to carb - port
65	0335404	SEAL, Manifold to carb - stbd
66	HOSE,	Balance tube drain
67	0324678	JOINT TORIQUE Galet de came de papillon
69	0336821	GASKET, Air Silencer
0434639	0434639	CARB ASSY., Port., 150 XP, GT
0435295	0435295	CARB, ASSY., Stbd., 175
0435296	0435296	CARB, ASSY., Port, 175
0435528	0435528	CARB ASSY., Stbd. 150
0435529	0435529	CARB ASSY., Port, 150
0436016	0436016	CARB. ASSY., Stbd., 150JL
0436017	0436017	CARB. ASSY., Port, 150JL
0436830	0436830	CARB. ASSY., Stbd., 150XP, GT
