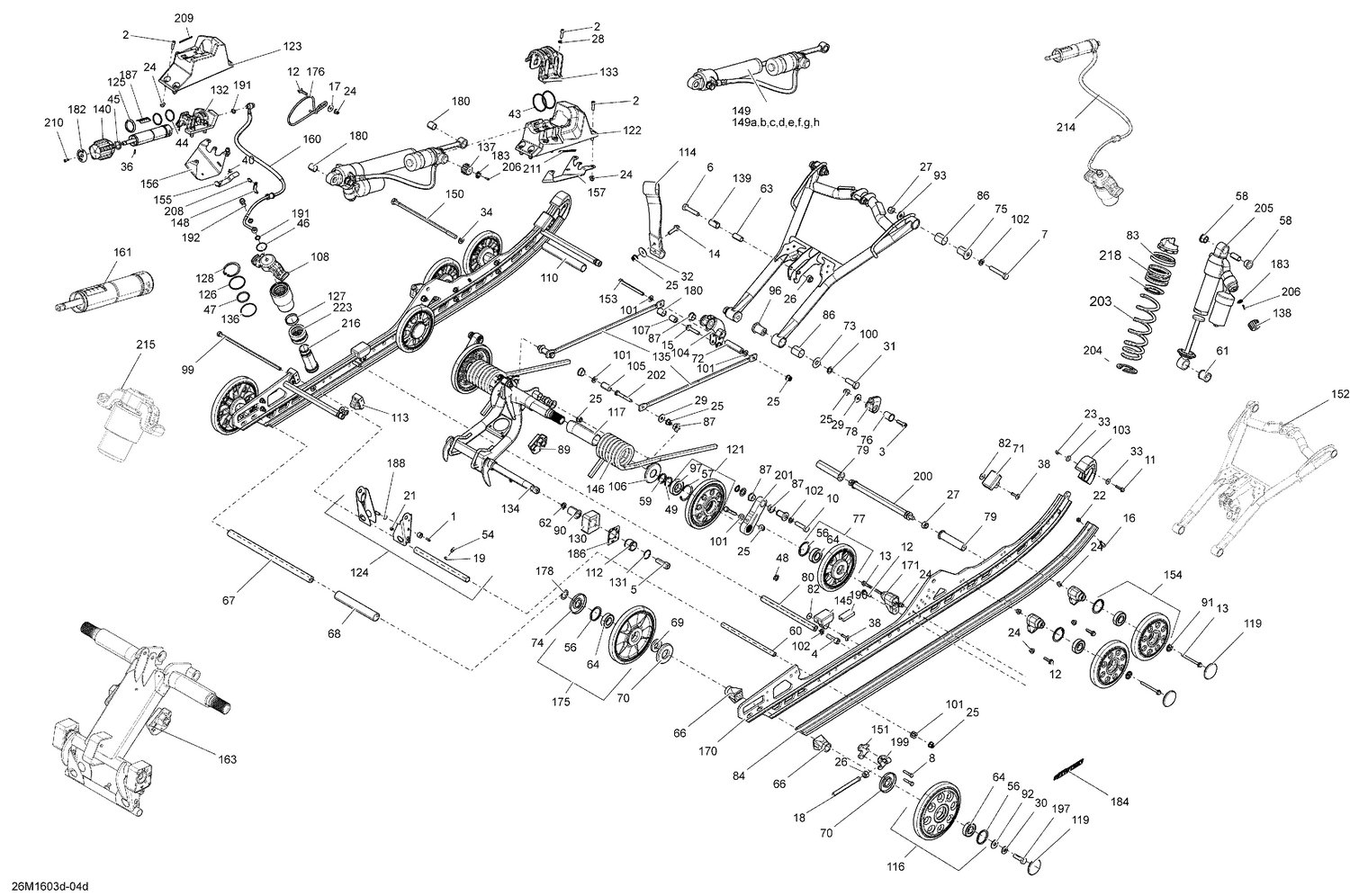

| Ref | Part Number | Description |
|---|
| 1 |
205041060 |
Socket Head Screw M4X 10 |
| 2 |
205062060 |
Socket Head Screw M6 X 20 |
| 3 |
205082554 |
Socket Screw M8 X 25 |
| 4 |
205503554 |
Socket Head Screw M10 X 35 |
| 5 |
205523554 |
Socket Head Screw M12 X 35 |
| 6 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 7 |
207006056 |
Hex. Cap Screw M10 X 60 |
| 8 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 10 |
207204056 |
Cap Screw Hex. M10 X 40 |
| 11 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 12 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 13 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 14 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 15 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 16 |
208562531 |
Phillips Screw M6 X 25 |
| 17 |
224061201 |
Flat Washer |
| 18 |
230100054 |
Hex Screw M10 x 100 |
| 19 |
232061404 |
Hexagonal Nut M6 |
| 21 |
232551414 |
Elastic Stop Nut M5 |
| 22 |
232561434 |
Elastic Stop Nut M6 |
| 23 |
233251434 |
Flange Elastic Nut M5 |
| 25 |
233281466 |
Elastic Flange Nut M8 |
| 26 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 27 |
233201466 |
Flange Elastic Nut M10 |
| 27 |
233601466 |
Elastic Locking Nut M10 |
| 29 |
234082410 |
Flat Washer 8 mm |
| 30 |
234201474 |
Conical Spring Washer 10 mm |
| 31 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 32 |
250200128 |
Flat Washer 8 mm |
| 33 |
250200140 |
Washer |
| 34 |
250200143 |
Flat Washer |
| 36 |
250400014 |
Spring Pin |
| 38 |
293150013 |
Pop Rivet 3/16" |
| 38 |
390402200 |
Pop Rivet 3/16" |
| 40 |
293150144 |
Stavex Rivet |
| 43 |
293250085 |
O-Ring |
| 44 |
293250269 |
O-Ring |
| 45 |
293300036 |
O-Ring |
| 46 |
293300039 |
O-Ring |
| 47 |
293300068 |
O-Ring |
| 48 |
293370013 |
E-Circlip |
| 49 |
293370080 |
Retaining Ring |
| 54 |
408200700 |
Grease Fitting |
| 56 |
415129371 |
Retaining Ring |
| 57 |
415129780 |
Retaining Ring |
| 58 |
503189117 |
Urethane Bushing |
| 59 |
503189146 |
Axle Spring |
| 60 |
503189156 |
Pivot Arm Axle |
| 61 |
503189271 |
Bushing |
| 62 |
503189276 |
Washer |
| 63 |
503189282 |
Bushing |
| 64 |
503190396 |
Ball Bearing |
| 66 |
503190428 |
Rear Wheel Spacer |
| 67 |
503190429 |
Rear Axle |
| 68 |
503196317 |
Spacer This part replaces 503190430. |
| 69 |
503190432 |
Washer |
| 70 |
503190434 |
Labyrinth Seal |
| 71 |
503190576 |
Rubber Stopper |
| 72 |
503190643 |
Axle Bar (Long) |
| 73 |
503190656 |
Washer |
| 74 |
503190682 |
Labyrinth Seal |
| 75 |
503190698 |
Axle |
| 76 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 77 |
503191152 |
Black, Wheel Ass'y 147 mm |
| 78 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 79 |
503191259 |
Center Bushing |
| 80 |
503191260 |
Axle Strap |
| 82 |
503191273 |
Washer |
| 83 |
503191281 |
Spring Spacer |
| 84 |
503191306 |
Black, Slider Shoe 137'' |
| 86 |
503191554 |
Bushing |
| 87 |
503191555 |
Swivel Bushing |
| 89 |
503191566 |
RH Cam Adjuster |
| 90 |
503191640 |
Cushion |
| 91 |
503191820 |
Wheel Cup M6 |
| 92 |
503191910 |
Washer |
| 93 |
503191926 |
Washer |
| 96 |
503191966 |
Lower Axle |
| 97 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 99 |
503192440 |
Bolt M8 X 248mm |
| 100 |
503192491 |
Washer |
| 101 |
503192494 |
Washer |
| 102 |
503192496 |
Washer |
| 103 |
503196873 |
Rail Protector This part replaces 503192530. |
| 104 |
503194079 |
Rocker |
| 105 |
503192555 |
Axle Bar |
| 106 |
503192592 |
Labyrinth Ring |
| 107 |
503196509 |
Axle Shock Absorber This part replaces 503192606. |
| 108 |
503192633 |
Spring Bracket |
| 110 |
503196943 |
Spacer This part replaces 503192678. |
| 112 |
503192749 |
Guide Block |
| 113 |
503192750 |
Rubber Stopper |
| 114 |
503192759 |
Stopper Strap |
| 116 |
503192766 |
Black, Wheel Ass'y 180 mm |
| 117 |
503192767 |
Bushing |
| 119 |
503192771 |
Black, Wheel Cap |
| 120 |
503192795 |
Cylinder |
| 121 |
503192808 |
Black Wheel Ass'y 155 mm |
| 122 |
503192810 |
RH Support |
| 123 |
503194686 |
LH Support This part replaces 503192811. |
| 124 |
503192823 |
Pivot Arm Ass'y |
| 125 |
503192825 |
WIPER SEAL - Call your local BRP dealership |
| 126 |
503192832 |
O-Ring |
| 127 |
503192833 |
Wear Ring |
| 128 |
503192834 |
Retaining Ring |
| 130 |
503192918 |
LH Cam Block |
| 130 |
503192919 |
RH Cam Block |
| 131 |
503192921 |
O-Ring |
| 132 |
503192956 |
LH Half Housing |
| 133 |
503192957 |
RH Half-Housing |
| 134 |
503192981 |
Lower Shaft |
| 135 |
503193005 |
Link Rod |
| 136 |
503193014 |
O-Ring |
| 137 |
503193025 |
Adjustment Knob Ass'y |
| 138 |
503193033 |
Shock Adjuster Knob |
| 139 |
503193037 |
Bushing |
| 140 |
503193056 |
Knob Adjuster Ass'y |
| 145 |
503195523 |
Rubber Stopper Ass'y This part replaces 503193101. |
| 148 |
503193166 |
Plate |
| 149a |
415093804 |
O-Ring |
| 149b |
505070400 |
O-Ring |
| 149c |
505070399 |
Screw |
| 149d |
505070398 |
Air Valve |
| 149e |
415093806 |
Piston Ring |
| 149f |
415093807 |
O-Ring |
| 149g |
415093810 |
Bolt |
| 149h |
415038700 |
O-Ring |
| 150 |
503193227 |
Bolt M10 X 251MM |
| 151 |
503193250 |
Spacer |
| 152 |
503194529 |
Front Arm Ass'y This part replaces 503194078. |
| 153 |
503193372 |
Screw M8 X 90 |
| 154 |
503193376 |
Black, Wheel Ass'y 147 mm |
| 155 |
503196020 |
Retaining Plate This part replaces 503193413. |
| 156 |
503193437 |
LH HOSE PROTECTOR - Call your local BRP dealership |
| 157 |
503193438 |
RH HOSE PROTECTOR - Call your local BRP dealership |
| 160 |
503193476 |
Connector Hose |
| 161 |
503193490 |
Master Cylinder Ass'y |
| 170 |
503193552 |
Black, Runner 137" |
| 170 |
503193554 |
Can-Am Red, Runner 137" |
| 171 |
503193894 |
Casted Support |
| 175 |
503194050 |
Black, Wheel Ass'y 180 mm |
| 176 |
503194113 |
Protector |
| 180 |
505072663 |
Leg Cushion |
| 182 |
516004751 |
STICKER KNOB ADJUSTER - Call your local BRP dealership |
| 183 |
516004752 |
Shock Knob Adjustment Decal |
| 184 |
516004755 |
Runner Decal |
| 186 |
516004900 |
LH Block Sticker Decal |
| 186 |
516004901 |
RH Block Sticker Decal |
| 187 |
516004917 |
Adjustment Decal |
| 188 |
517225900 |
Flat Washer |
| 190 |
572084800 |
Reinforcement Stopper |
| 191 |
705601628 |
Copper Washer This part replaces 705600310. |
| 192 |
705600628 |
Banjo Bolt |
| 197 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 199 |
503192583 |
Tensioner |
| 200 |
503193435 |
Pivot Axle |
| 201 |
503195985 |
Link Ass'y This part replaces 503193069. |
| 202 |
207085586 |
Hex. Screw M8 X 55 |
| 203 |
503193160 |
Deep Black, Spring (189mm) Long |
| 204 |
503194270 |
Spring Stopper |
| 205 |
503193283 |
Central Shock |
| 206 |
250000644 |
Allen Screw M3 X 0.5 X 10 |
| 208 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 209 |
516006369 |
Decal |
| 210 |
205541660 |
Socket Screw M4 X 16 (Scotch Grip) |
| 211 |
516006369 |
Decal |
| 214 |
503193777 |
Hydraulic Adjuster Ass'y |
| 215 |
503193777 |
Hydraulic Adjuster Ass'y This part replaces 503193778. |
| 216 |
503193779 |
Piston |
| 218 |
503193837 |
Black, Spring (51mm) Short |
