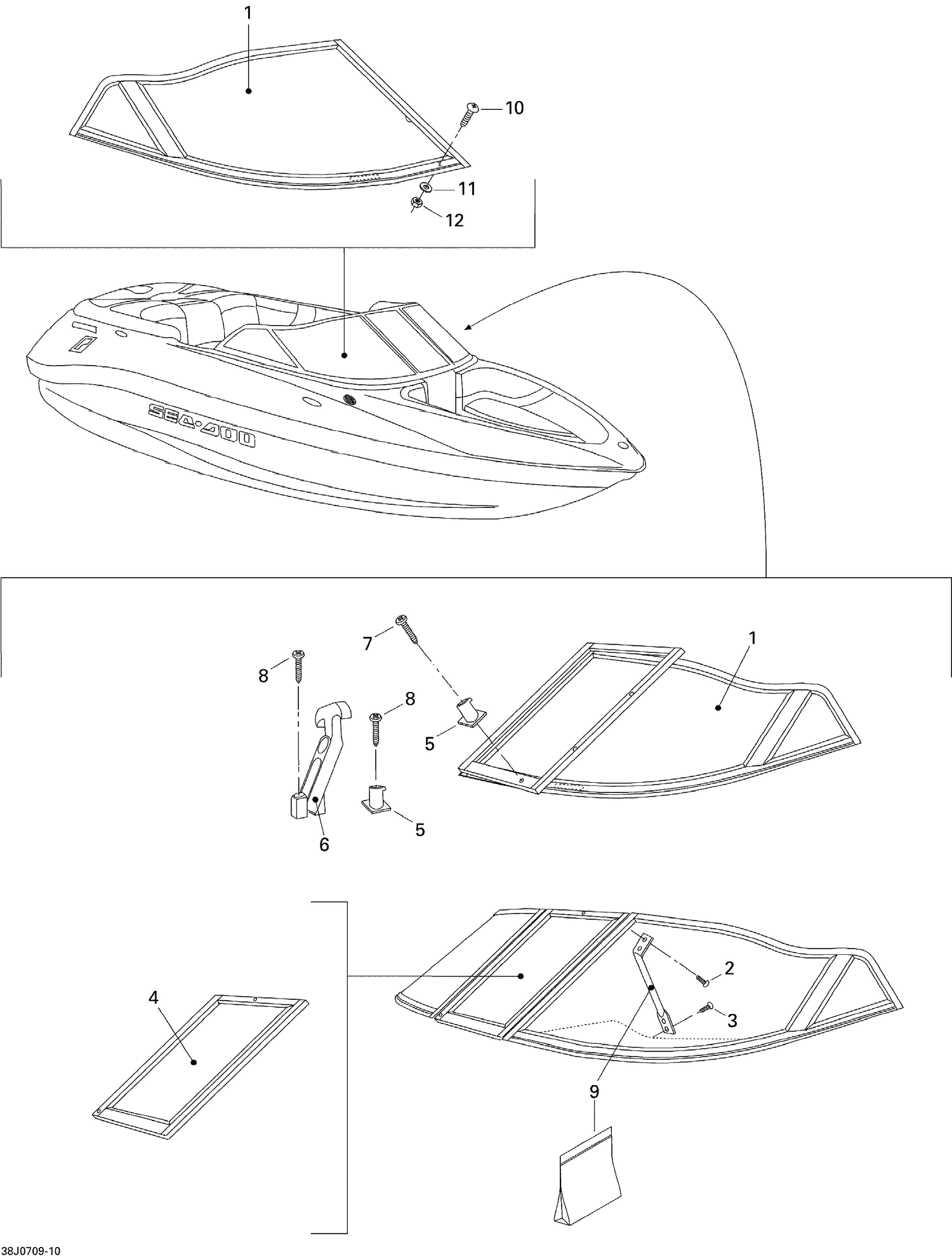

| Ref | Part Number | Description |
|---|
| 1 |
204071541 |
Side Windshield Ass'y, Port Side |
| 1 |
204071552 |
Side Windshield Ass'y, Starboard |
| 2 |
204100114 |
SCREW-PAN HD.#10 X 3/4 BLACK - Call your local BRP dealership |
| 3 |
204100115 |
SCREW-PAN HD.#10 X 1 BLACK - Call your local BRP dealership |
| 4 |
204071563 |
Windshield Center Door Ass'y |
| 5 |
204071376 |
STRAP KEEPER - Call your local BRP dealership |
| 6 |
204071291 |
DOOR STRAP - Call your local BRP dealership |
| 7 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 8 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 9 |
204071573 |
WINDSHIELD ASSEMBLY KIT - Call your local BRP dealership |
| 10 |
208443070 |
SCREW M4 X 30 - Call your local BRP dealership |
| 11 |
234042600 |
Flat Washer 4 mm, Stainless |
