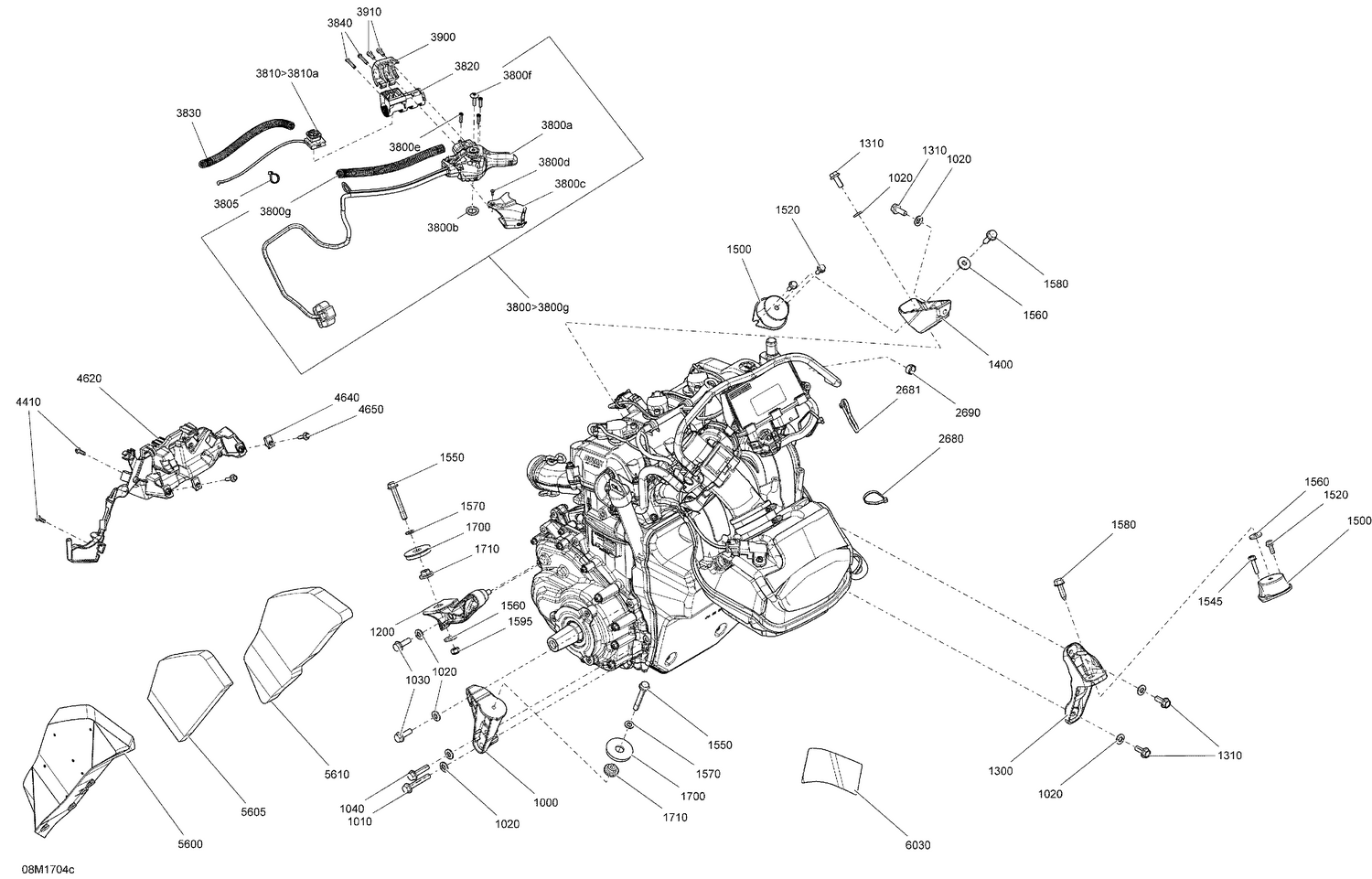

| Ref | Part Number | Description |
|---|
| 1000 |
512060591 |
Rear Support, PTO |
| 1010 |
207585086 |
Hex. Flange Screw M8 X 50, Scotch Grip |
| 1020 |
250200146 |
Conical Spring Washer M8 |
| 1030 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 1200 |
512060593 |
Front Support, PTO |
| 1300 |
512060594 |
Rear Support, MAG |
| 1310 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1400 |
512060596 |
Front Support, MAG |
| 1500 |
512060729 |
Rubber Mount |
| 1520 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1545 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 1550 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1580 |
250000257 |
Cone Screw, M8 X 30 |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061202 |
Stopper |
| 1710 |
512060285 |
Spacer |
| 2680 |
414115200 |
Tie-Rap 180 mm |
| 2681 |
293750008 |
Tie Wrap 368 mm |
| 2690 |
293650046 |
Oetiker Clamp |
| 3800a |
415130047 |
Handle Ass'y kit |
| 3800b |
Not |
Available As Spare Part - Shaft Seal |
| 3800c |
512060862 |
Cap |
| 3800d |
250000623 |
Torx Screw M2.9 x 9.5 |
| 3800e |
250000671 |
Torx Screw |
| 3800f |
250000528 |
Torx Screw M5 X 20 |
| 3800g |
515177716 |
Protector Tube |
| 3805 |
293750002 |
Tie Wrap 142 mm |
| 3810a |
515175232 |
Male Terminal |
| 3820 |
512061453 |
Switch Support This part replaces 512060844. |
| 3830 |
515177716 |
Protector Tube |
| 3840 |
250000263 |
Torx Screw #8-18 |
| 3900 |
512060987 |
Front Housing |
| 3910 |
250000632 |
Torx Screw M5 X 14 |
| 4410 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 4620 |
512061012 |
Module Support |
| 4640 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 4650 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 5600 |
512060847 |
Noise Shield |
| 5605 |
512061135 |
NOISE FOAM - Call your local BRP dealership |
| 5610 |
512060958 |
Inner Acoustic Foam |
