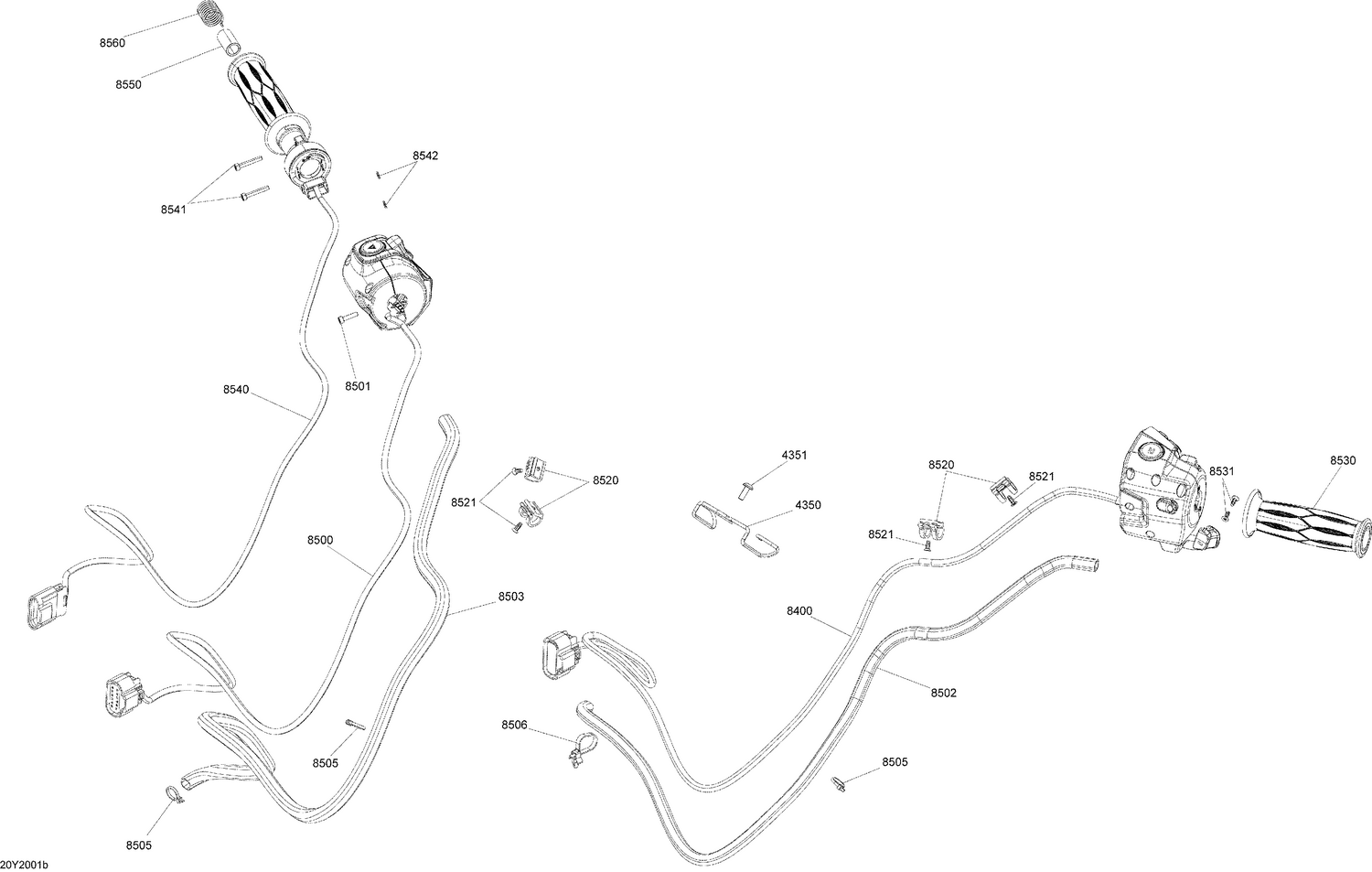

10- Electrical System_ Steering
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 4350 | 709402446 | Wiring Harness Support |
| 4351 | 250000742 | Torx Screw M5 X 14 |
| 8400 | 710008091 | LH Multi-Function Switch This part replaces 710006968. |
| 8500 | 710004582 | RH Switch Housing |
| 8501 | 250000494 | Socket Screw, M4 X 16 Scotch Grip |
| 8502 | 710004231 | Braided Sleeve |
| 8503 | 710004231 | Braided Sleeve |
| 8505 | 293750001 | Tie Wrap 94 mm |
| 8506 | 293750074 | Tie Rap |
| 8520 | 709401804 | Wire Guide |
| 8521 | 250000453 | Torx Cutting Screw, M4 X 10 |
| 8530 | 709401054 | Handle Grip |
| 8531 | 250000453 | Torx Cutting Screw, M4 X 10 |
| 8540 | 709401055 | Throttle Handle Grip |
| 8541 | 205042594 | Socket Screw, M4 X 25 |
| 8542 | 234040600 | Flat Washer 4 mm |
| 8550 | 709401801 | Bushing |
