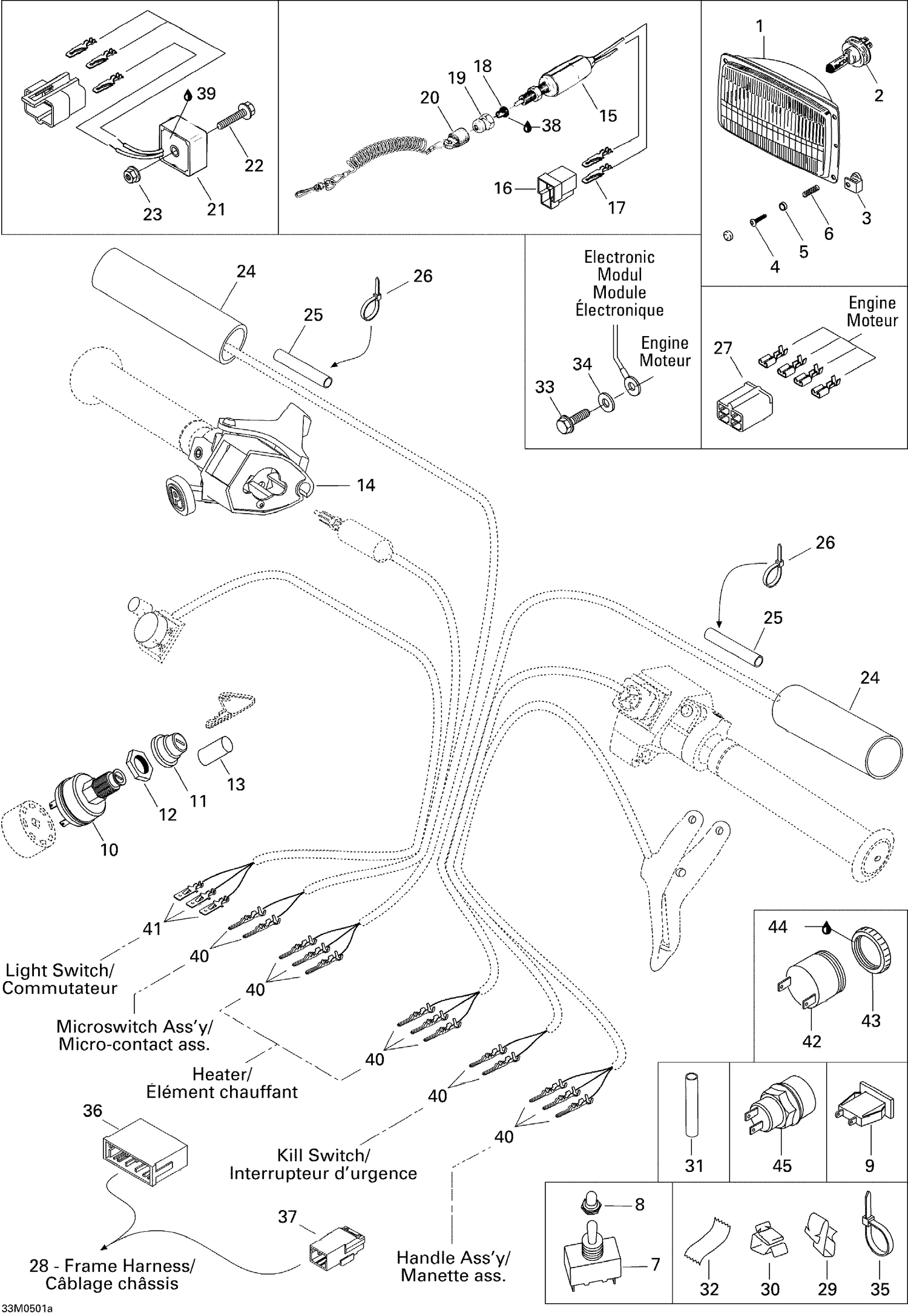

| Ref | Part Number | Description |
|---|
| 1 |
410606800 |
Halogene Headlamp Ass'y |
| 2 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 3 |
572378700 |
Protector Nut |
| 4 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 5 |
414436800 |
RETAINER CAP - Call your local BRP dealership |
| 6 |
517166000 |
SPRING - Call your local BRP dealership |
| 7 |
410107300 |
Switch (Heating Grip) |
| 8 |
515175281 |
Switch Cover |
| 9 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 10 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113601. |
| 11 |
570013700 |
Switch Boot |
| 12 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 13 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 15 |
515175653 |
Brake Switch This part replaces 515175571. |
| 16 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 17 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 18 |
570151100 |
Plunger Cap |
| 19 |
515145900 |
Switch Nut |
| 20 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 22 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 25 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 26 |
293750001 |
Tie Wrap 94 mm |
| 27 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 29 |
414095100 |
Clip |
| 30 |
414227300 |
Clip |
| 31 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 32 |
293740005 |
Tape |
| 33 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 34 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 35 |
414115200 |
Tie-Rap 180 mm |
| 36 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 37 |
515175494 |
Male Housing, 3 Circuits |
| 38 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 39 |
413707500 |
Grease Tube Lmz, 400 G |
| 40 |
515175232 |
Male Terminal |
| 41 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 42 |
515176035 |
HORN - Call your local BRP dealership This part replaces 515175931. |
| 43 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 44 |
296000309 |
Silicone Sealant 51388, 300 ml |
