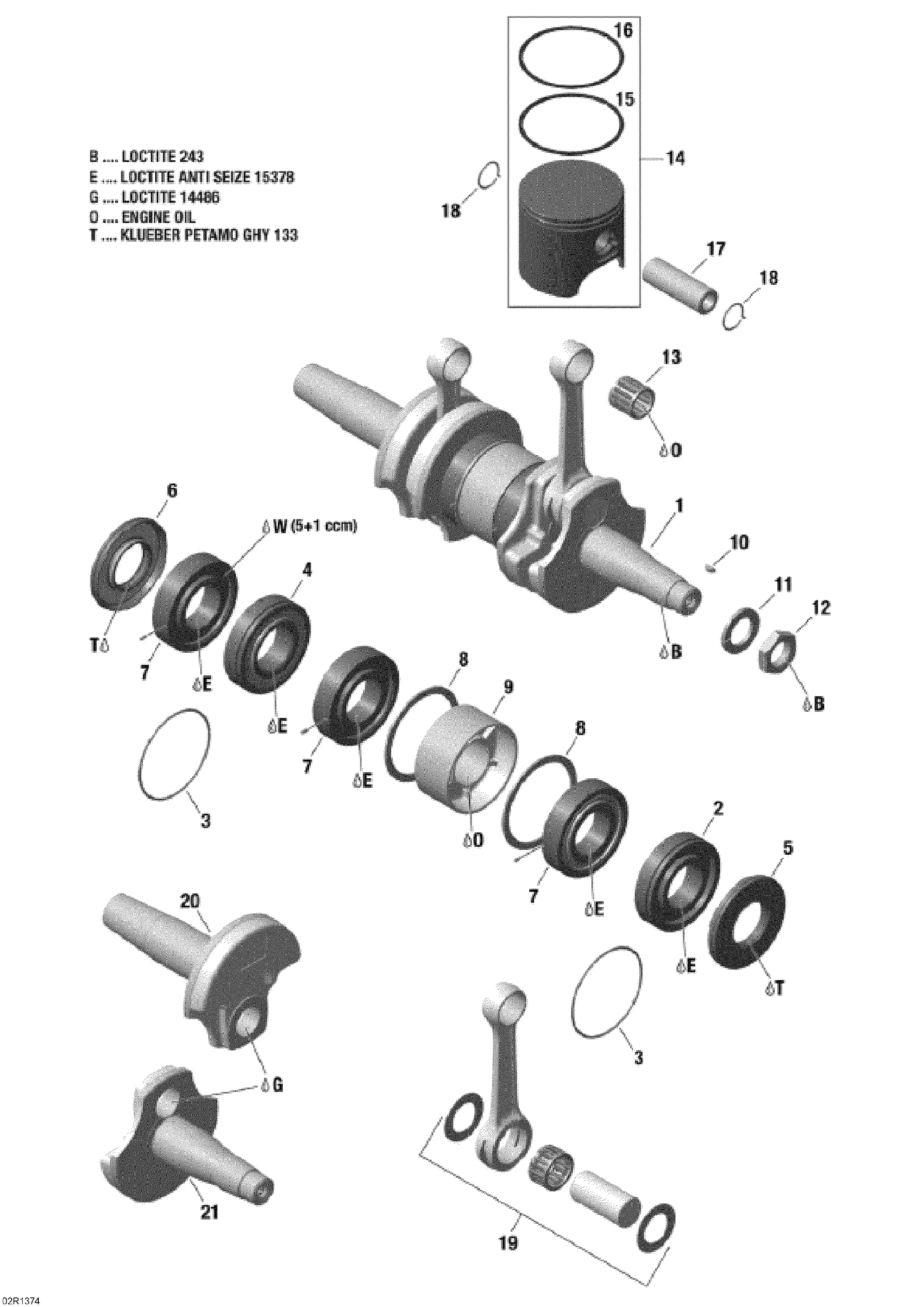

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| E |
Not |
Available As Spare Part - Loctite 8151 (Antiseize), 400ml Spray |
| G |
Not |
Available As Spare Part - Loctite 648, 50ml |
| O |
Not |
Available As Spare Part - Engine Oil |
| T |
Not |
Available As Spare Part - Grease, 400g |
| 1 |
421000673 |
REBUILT - CRANKSHAFT 552 |
| 2 |
420832571 |
Ball Bearing |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm |
| 4 |
420832632 |
Ball Bearing |
| 5 |
420831952 |
Oil Seal |
| 6 |
420831955 |
Oil Seal |
| 7 |
420832573 |
Ball Bearing |
| 8 |
420927710 |
Retaining Disk |
| 9 |
420850149 |
Labyrinth Sleeve |
| 10 |
420246055 |
Woodruff Key |
| 11 |
420945759 |
Lock Washer, 22 mm |
| 12 |
420842239 |
Hex. Nut, M22 X 1.5 |
| 13 |
420832445 |
Needle Bearing |
| 15 |
420815300 |
Rectangular Ring, Standard |
| 15 |
420815301 |
Rectangular Ring, 1st |
| 15 |
420815302 |
Rectangular Ring, 2nd |
| 16 |
420815155 |
Semi-Trapez Ring, Standard |
| 16 |
420815156 |
Semi-Trapez Ring, 1st |
| 16 |
420815157 |
Semi-Trapez Ring, 2nd |
| 17 |
420916407 |
Piston Pin |
| 19 |
420889068 |
Rod Repair Kit |
| 20 |
420819181 |
CRANKSHAFT PTO SIDE - Call your local BRP dealership |
| 21 |
420819213 |
Half Crankshaft (MAG) This part replaces 420819210. |
