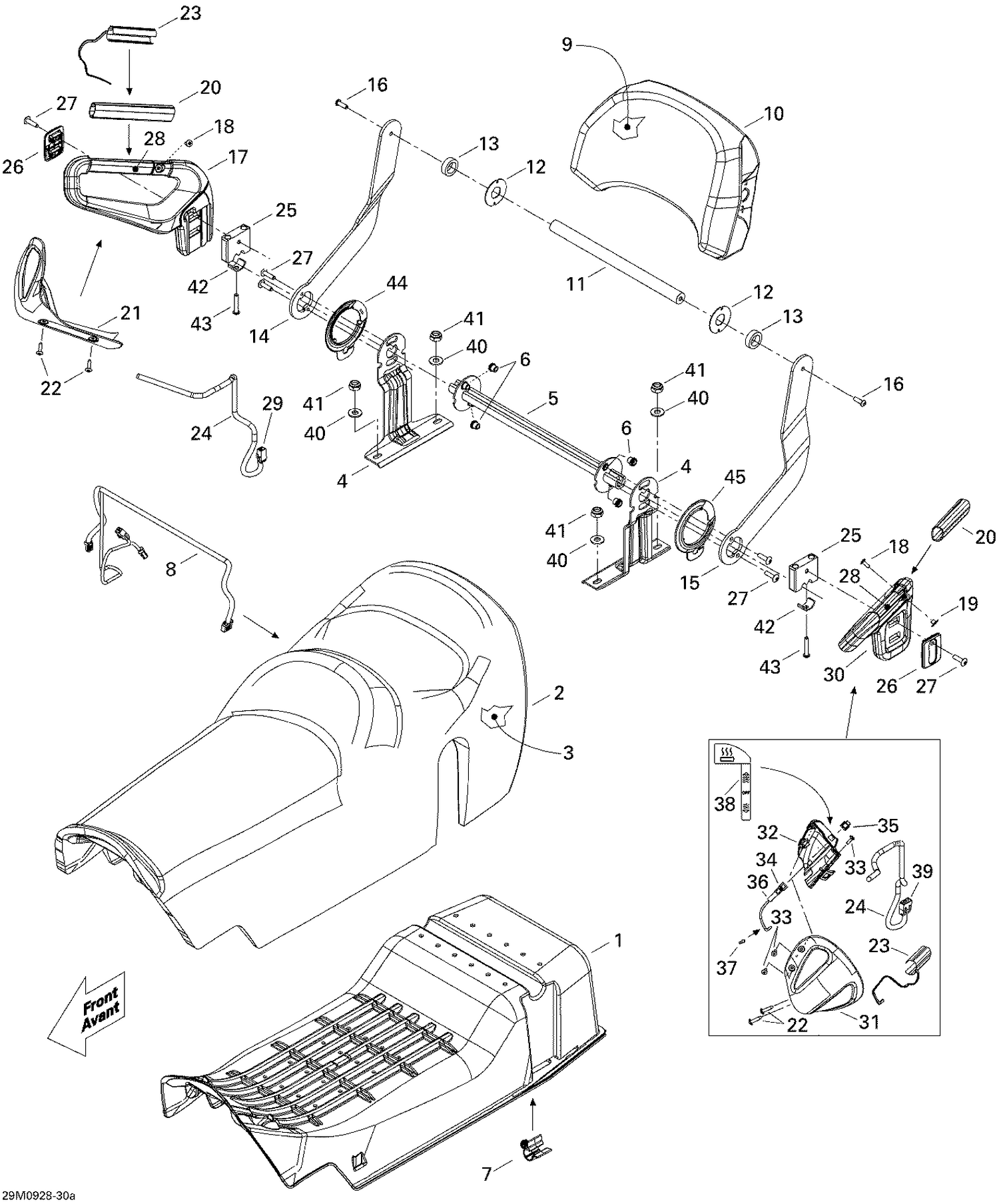

| Ref | Part Number | Description |
|---|
| 1 |
510004887 |
SEAT BASE - Call your local BRP dealership |
| 2 |
510004855 |
SEAT COVER - Call your local BRP dealership |
| 3 |
510004670 |
Foam |
| 4 |
510004662 |
T PLATE - Call your local BRP dealership |
| 5 |
510004663 |
CROSS MEMBER - Call your local BRP dealership |
| 6 |
293450166 |
Insert |
| 7 |
275500528 |
Hose Retainer |
| 8 |
510004882 |
Seat Electrical Harness |
| 9 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 10 |
510004858 |
BACKRESS COVER - Call your local BRP dealership |
| 11 |
510004377 |
Upper Backrest Axle |
| 12 |
510004379 |
Washer |
| 13 |
510004378 |
Rubber Shim |
| 14 |
510004373 |
RH ARM, BLACK - Call your local BRP dealership |
| 15 |
510004375 |
LH ARM, BLACK - Call your local BRP dealership |
| 16 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 17 |
510005865 |
RH HANDLE - Call your local BRP dealership This part replaces 510004948. |
| 18 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 19 |
293100003 |
Nut Welded, M6 |
| 20 |
510004449 |
Handle Grip |
| 21 |
510004415 |
RH Deflector |
| 22 |
250000961 |
Screw 25MM This part replaces 250000199. |
| 23 |
515176393 |
Heater |
| 24 |
219704426 |
Was 515175506 Tubing |
| 25 |
510004530 |
HANDLE LINK - Call your local BRP dealership |
| 26 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 27 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 28 |
510004709 |
HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 29 |
515175494 |
Male Housing, 3 Circuits |
| 30 |
510005862 |
LH Handle This part replaces 510004947. |
| 31 |
510004416 |
LH Deflector |
| 32 |
510004566 |
Switch Housing |
| 33 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 34 |
510004413 |
Rocker Switch |
| 35 |
510004414 |
Switch Protector |
| 36 |
515176241 |
LH HANDLE HARNESS - Call your local BRP dealership |
| 37 |
414115200 |
Tie-Rap 180 mm |
| 38 |
516002835 |
HANDLE HEATER DECAL - Call your local BRP dealership |
| 39 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 40 |
234082410 |
Flat Washer 8 mm |
| 41 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 42 |
510004565 |
HANDLE CLAMP - Call your local BRP dealership |
| 43 |
250000220 |
SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
| 44 |
510004883 |
Spacer RH |
