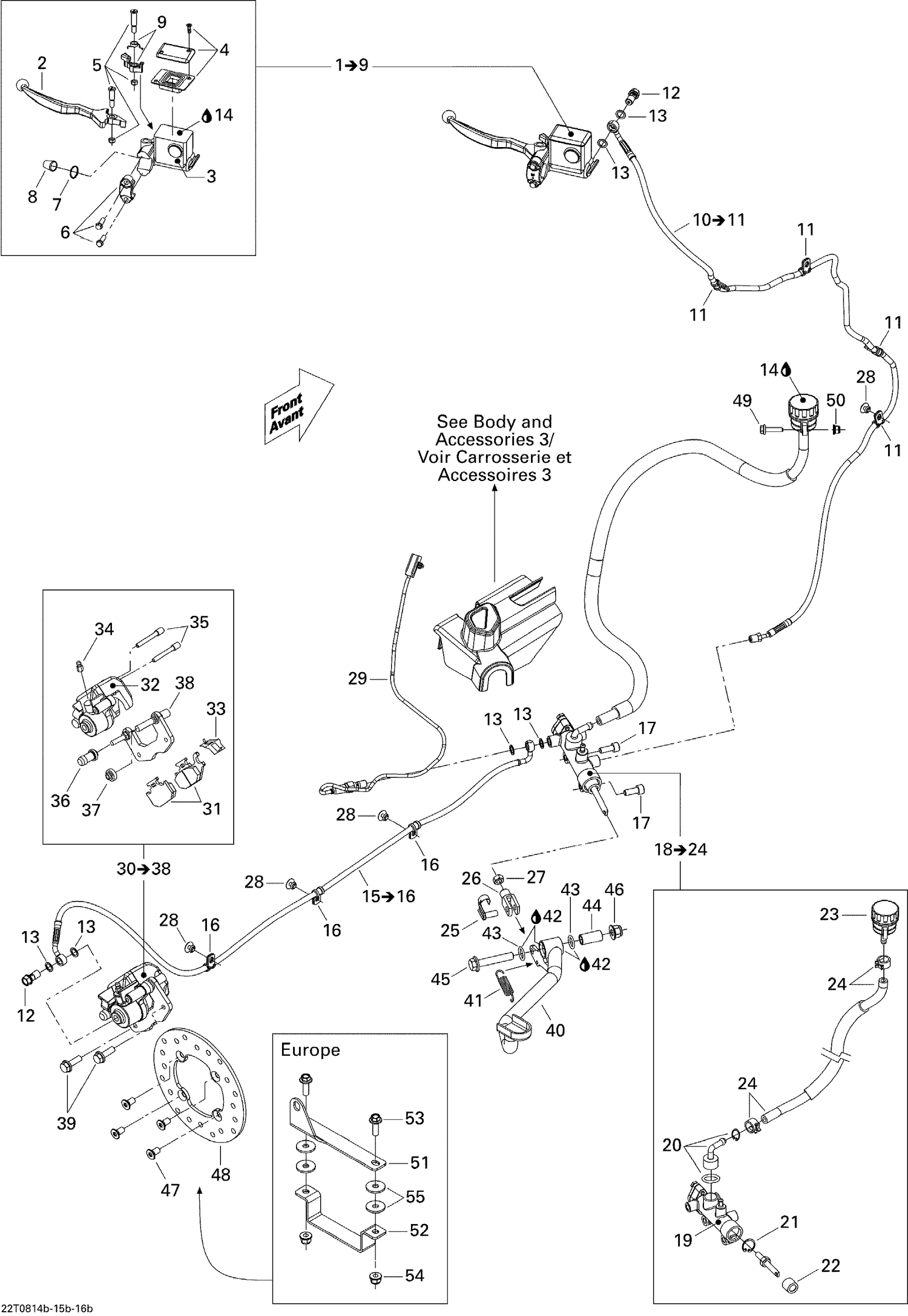

| Ref | Part Number | Description |
|---|
| 2 |
705600243 |
Lever Arm |
| 3 |
Not |
Available As Spare Part - Piston Kit |
| 4 |
705600084 |
Cap Set |
| 5 |
705600246 |
Brake Lever Bolt Kit |
| 6 |
705600087 |
BRACKET KIT - Call your local BRP dealership |
| 7 |
705600088 |
CIRCLIP - Call your local BRP dealership |
| 8 |
705600089 |
COMPRESSION BOOT - Call your local BRP dealership |
| 9 |
705600477 |
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership |
| 11 |
293650256 |
Clamp This part replaces 705600459. |
| 12 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) This part replaces 705600396. |
| 13 |
705601628 |
Copper Washer This part replaces 705600310. |
| 14 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 16 |
293650256 |
Clamp This part replaces 705600459. |
| 17 |
250000136 |
Socket Head Screw M8 X 20, Scotch Grip |
| 19 |
705600255 |
Piston Set |
| 20 |
705600064 |
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 21 |
705600068 |
Circlip |
| 22 |
705600090 |
Compression Boot |
| 23 |
705600182 |
Oil Tank, Brake Fluid Reservoir |
| 24 |
705600262 |
OIL HOUSING HOSE - Call your local BRP dealership |
| 25 |
219702305 |
Pin Kit This part replaces 250400007. |
| 26 |
705600100 |
Yoke |
| 27 |
232081414 |
Hex. Nut M8 |
| 28 |
390406500 |
Pop Rivet 3/16" |
| 29 |
710003837 |
Switch This part replaces 710000853. |
| 31 |
705600014 |
Brake Pad Kit |
| 32 |
705600078 |
Piston Set |
| 33 |
705600079 |
Spring |
| 34 |
705600080 |
Bleeding Screw |
| 35 |
705600081 |
Pin Set (2) |
| 36 |
705600082 |
Compression Boot |
| 37 |
705600083 |
Compression Boot |
| 38 |
705600298 |
LH CALIPER SUPPORT - Call your local BRP dealership |
| 39 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 40 |
705601154 |
BRAKE PEDAL, BLACK - Call your local BRP dealership This part replaces 705600555. |
| 41 |
705600098 |
BREAK PEDAL SPRING - Call your local BRP dealership |
| 42 |
293550010 |
Synthetic Grease, 400 G |
| 43 |
293300053 |
O-RING - Call your local BRP dealership |
| 44 |
705600283 |
SPACER - Call your local BRP dealership |
| 45 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 46 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 47 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 48 |
705600604 |
Disk Brake This part replaces 705600271. |
| 49 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 50 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
