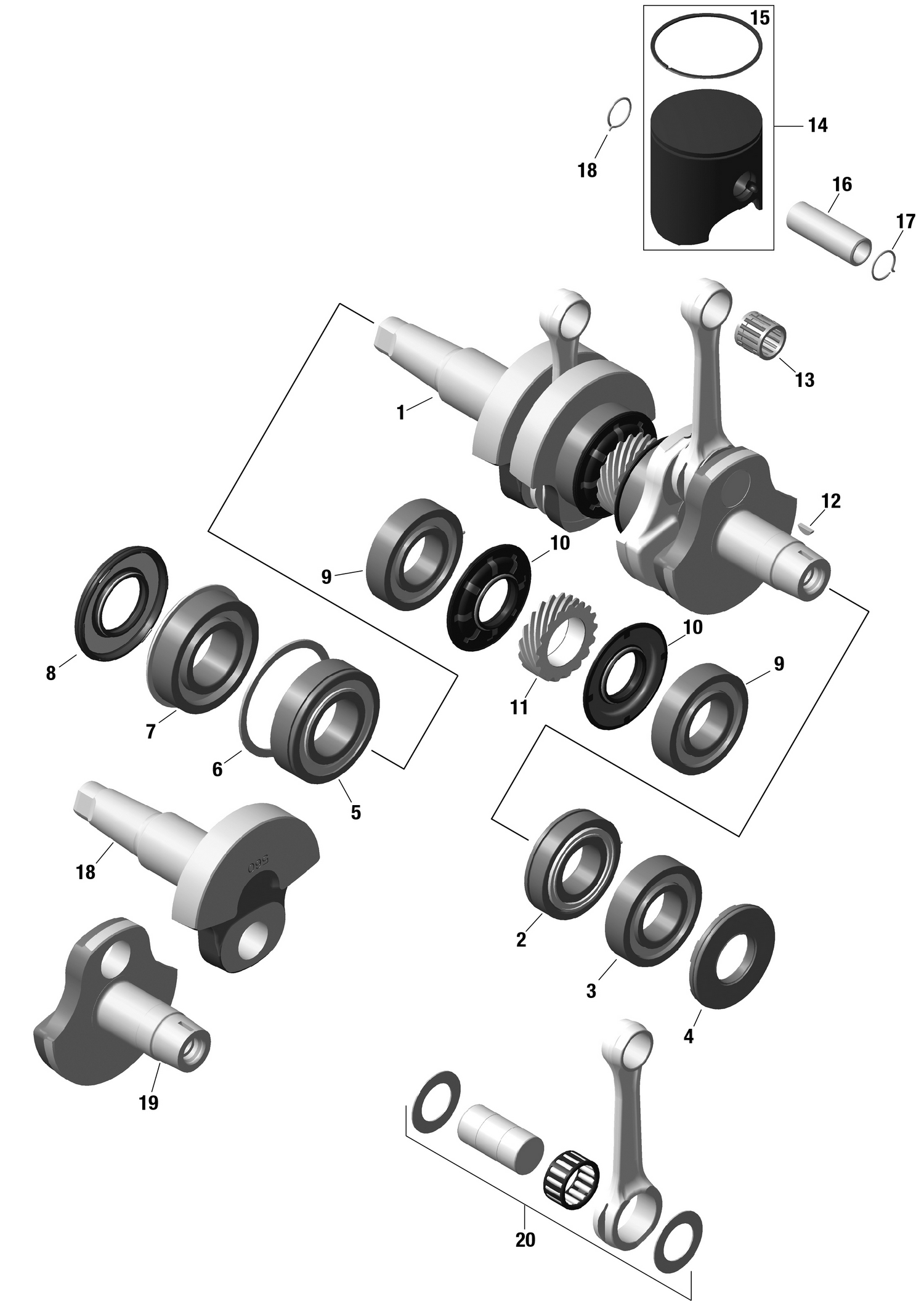

01- ROTAX - Crankshaft and Pistons
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832175 | Ball Bearing |
| 6 | 420926190 | Washer |
| 10 | 420931455 | Oil Seal |
| 11 | 420834565 | CENTRAL GEAR - Call your local BRP dealership |
| 12 | 420246015 | Woodruff Key |
| 13 | 420832445 | Needle Bearing |
| 15 | 420815470 | Semi Trapez Ring |
| 18 | 420819560 | Crankshaft PTO Side |
| 19 | 420819570 | Crankshaft MAG Side |
| 20 | 420890959 | Rod Repair Kit, MAG Side |
