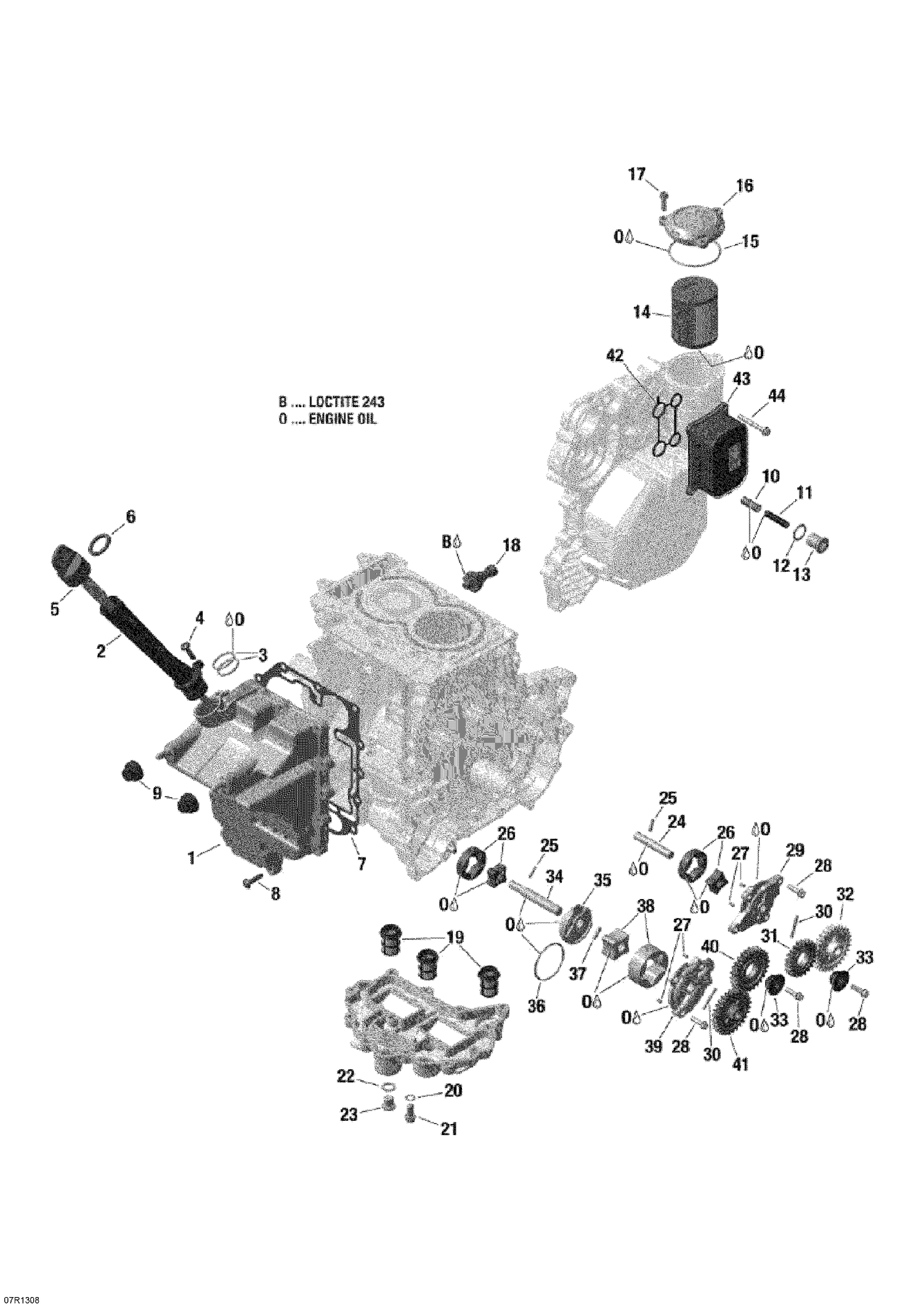

02- Engine Lubrication
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| 1 | 420956210 | Oil Sump Cover |
| 2 | 420656900 | Oil Filler Tube |
| 9 | 420860150 | Rubber Grommet |
| 10 | 420256591 | Pression Regulating Piston This part replaces 420256517. |
| 11 | 420239445 | Spring DM6,95 D1,15 L46 |
| 14 | 420956123 | Oil Filter |
| 16 | 420612135 | Oil Filter Cover This part replaces 420210418. |
| 19 | 420656680 | Oil Sieve |
| 24 | 420820120 | Oil Pump Shaft |
| 25 | 420232731 | Needle Pin This part replaces 420232730. |
| 26 | 420256348 | Rotor Set |
| 27 | 420929075 | Needle Pin ISO 8734-4X8-A-ST |
| 29 | 420911080 | Oil Pump Cover |
| 30 | 420232431 | Needle Pin This part replaces 420232430. |
| 31 | 420835400 | Gear 22 Teeths This part replaces 420835054. |
| 32 | 420834882 | Oil Pump Gear 29 T |
| 33 | 420947396 | Graduated Spacer This part replaces 420947390. |
| 34 | 420837916 | Oil Pump Shaft |
| 35 | 420611950 | Oil Pump Cover |
| 37 | 420632221 | Needle Pin This part replaces 420632220. |
| 38 | 420256836 | Rotor Set |
| 39 | 420611980 | Oil Pump Cover |
| 40 | 420835321 | Idle Gear, 26 Teeth This part replaces 420835320. |
| 41 | 420834887 | Oil Pump Gear, 28 Teeth This part replaces 420834885. |
| 43 | 420656698 | Oil Water Heat Exchanger This part replaces 420656695. |
