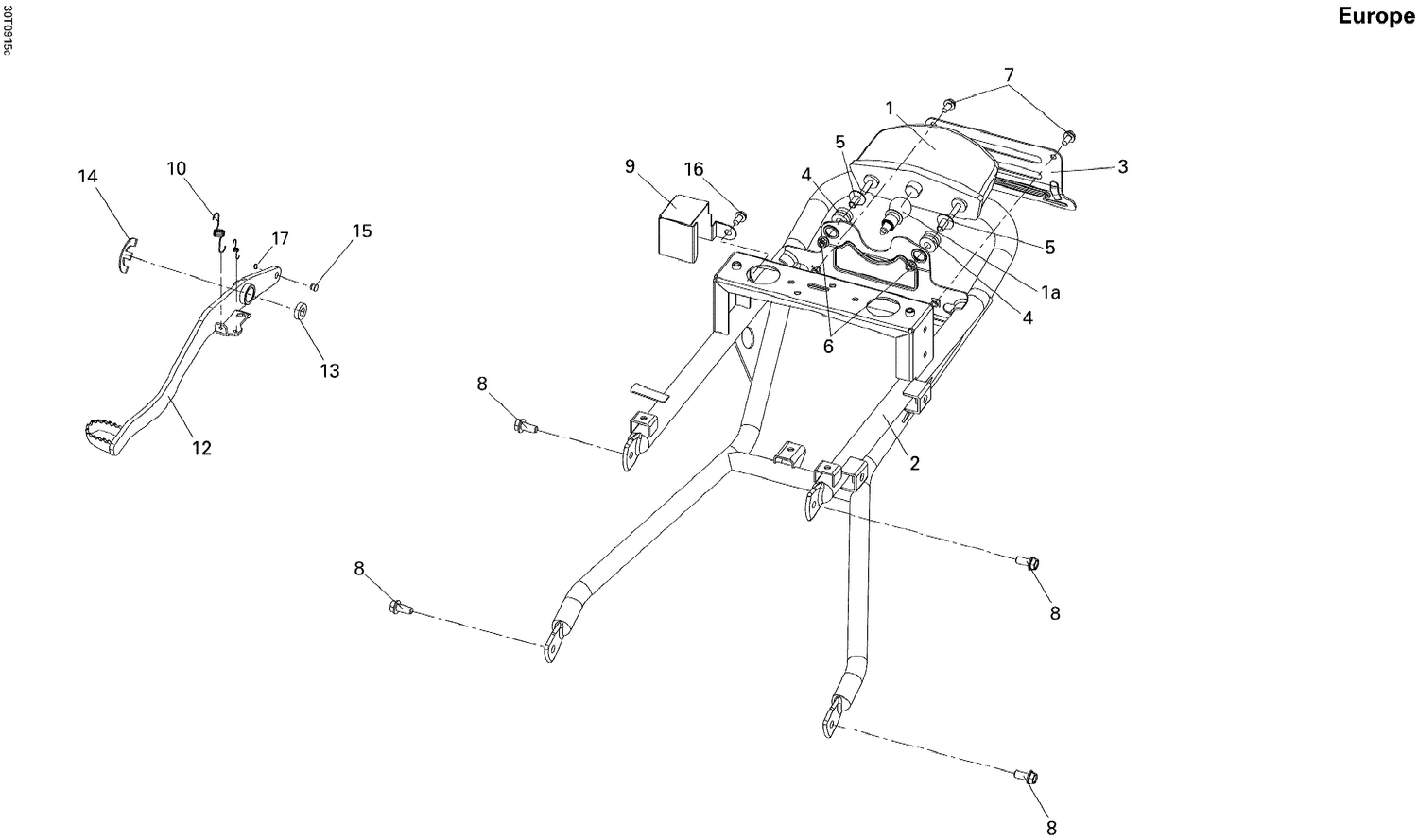

09- Rear Frame Europe
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S33700RCA000 | TAIL LIGHT ASS'Y - Call your local BRP dealership |
| 1a | S34906RCA000 | Tail Light Bulb |
| 2 | S50180RCA000 | Rear Frame |
| 3 | S50185RCA000 | License Plate Support |
| 4 | S80103X01000 | Rubber Washer |
| 5 | S80104X01000 | Fender Collar |
| 6 | S9405006070 | Flanged Nut 6 mm |
| 7 | S958010601207 | Flanged Bolt M6 X 12 |
| 8 | S958010801807 | Flanged Bolt M8 X 18 |
| 9 | S50175RCA000 | CVT Tube Stay |
| 10 | S50706RCA000 | Brake Pedal Spring |
| 12 | S50708RCA000 | Brake Pedal Ass'y |
| 13 | S50709RCA000 | Brake Plate Washer |
| 14 | S9454005017 | E-Ring |
| 15 | S91510RCA000 | Pin |
| 16 | S958010801207 | Flanged Bolt M8 X 12 |
