Parts Catalog

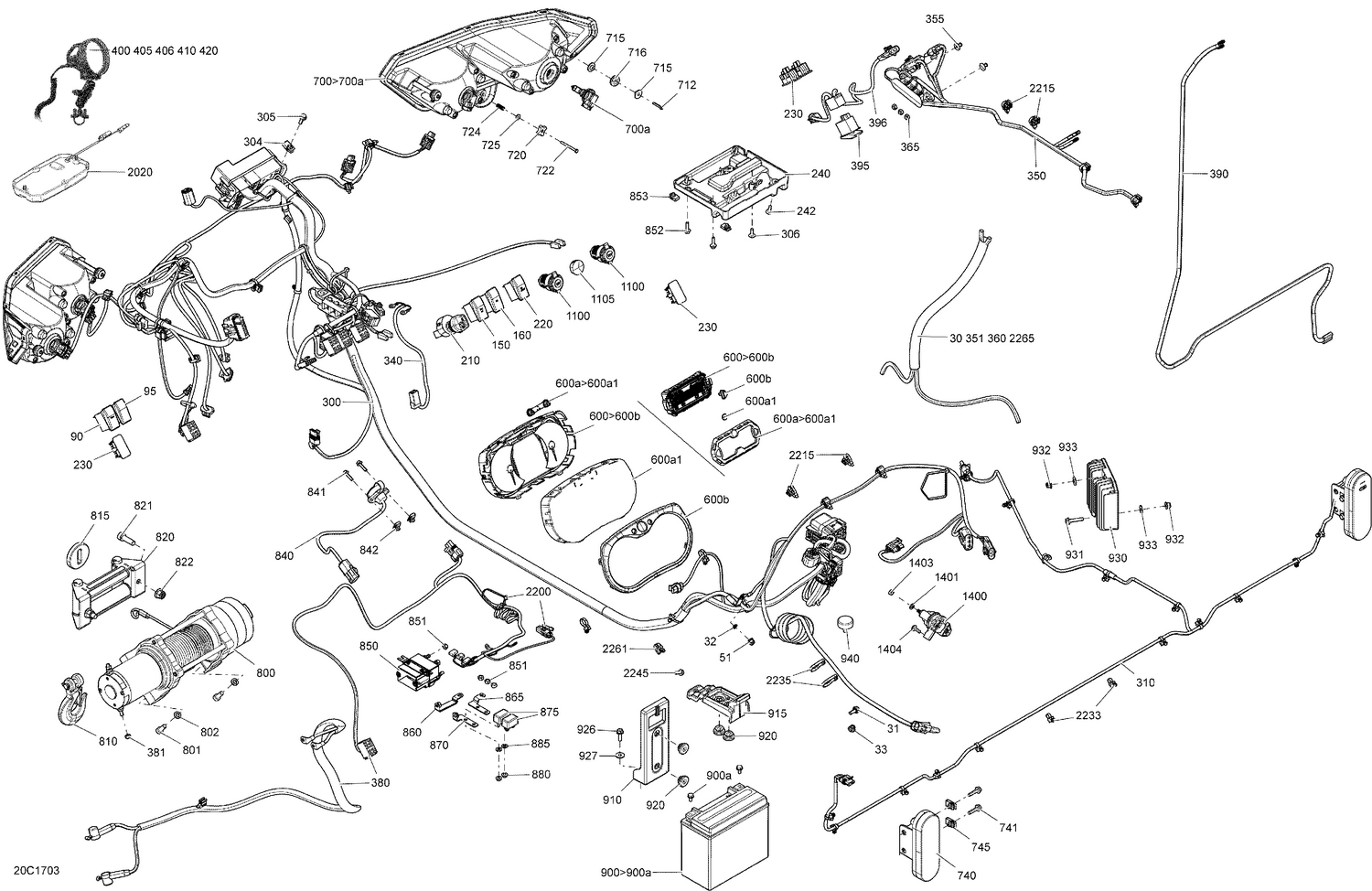

10- Electrical System - All Models

Parts (46)

Ref	Part Number	Description
30	710005512	Negative Cable
31	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
32	234461608	External Serrated Lock Washer 6 mm
33	232561414	Elastic Stop Nut M6
51	232561414	Elastic Stop Nut M6
90	710004492	Light Switch
150	710004814	Interrupteur 2 X 4
160	710005470	Differential Lock Switch
210	710007870	Inter Allumage *Ignition This part replaces 710004198.
240	710004741	Housing Support
242	243141630	Hex. Plastic Screw M4.8 X 16
304	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
305	207562034	Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
306	243141630	Hex. Plastic Screw M4.8 X 16
310	710004458	Rear Harness
700a	219800149	Halogen Bulb H8 12V 35W
712	241142560	Hex. Flange Screw K40 X 25
715	710004749	Shoulder Bushing
716	709000582	Grommet This part replaces 293720053.
720	572106600	Handle
722	250000718	Hex. Screw K40 X 45
724	517168600	Spring
725	234042600	Flat Washer 4 mm, Stainless
741	207562034	Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
745	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
851	232561200	Brass Elastic Stop Nut M6
910	710004788	Fixation Plate
915	710004789	Fixation Plate
920	705014429	Rubber Stopper This part replaces 705003666.
926	207562054	Hex. Flange Screw S.Grip M6 X 20
927	234062410	Flat Washer 6 mm
930	710001191	Voltage Regulator
931	207563034	Hex. Flange Screw M6 X 30, Scotch Grip
932	233261414	Hex. Flange Elastic Nut M6 x 1.0
933	234062410	Flat Washer 6 mm
940	708001827	Rubber Stopper
1400	278003012	Starter Relay
1401	234161601	Lock Washer Helical M6
1403	232061600	Hex. Nut M6
1404	243141630	Hex. Plastic Screw M4.8 X 16
2200	414115200	Tie-Rap 180 mm
2215	293750058	Tie Rap 2 Pièces pour Bordure
2233	710003168	Dart Tie Rap 200MM
2235	293750008	Tie Wrap 368 mm
2261	710005237	Christmas Tree Tie-Rap
2265	219704408	Tubing 16 Mm 1000Mm Long
