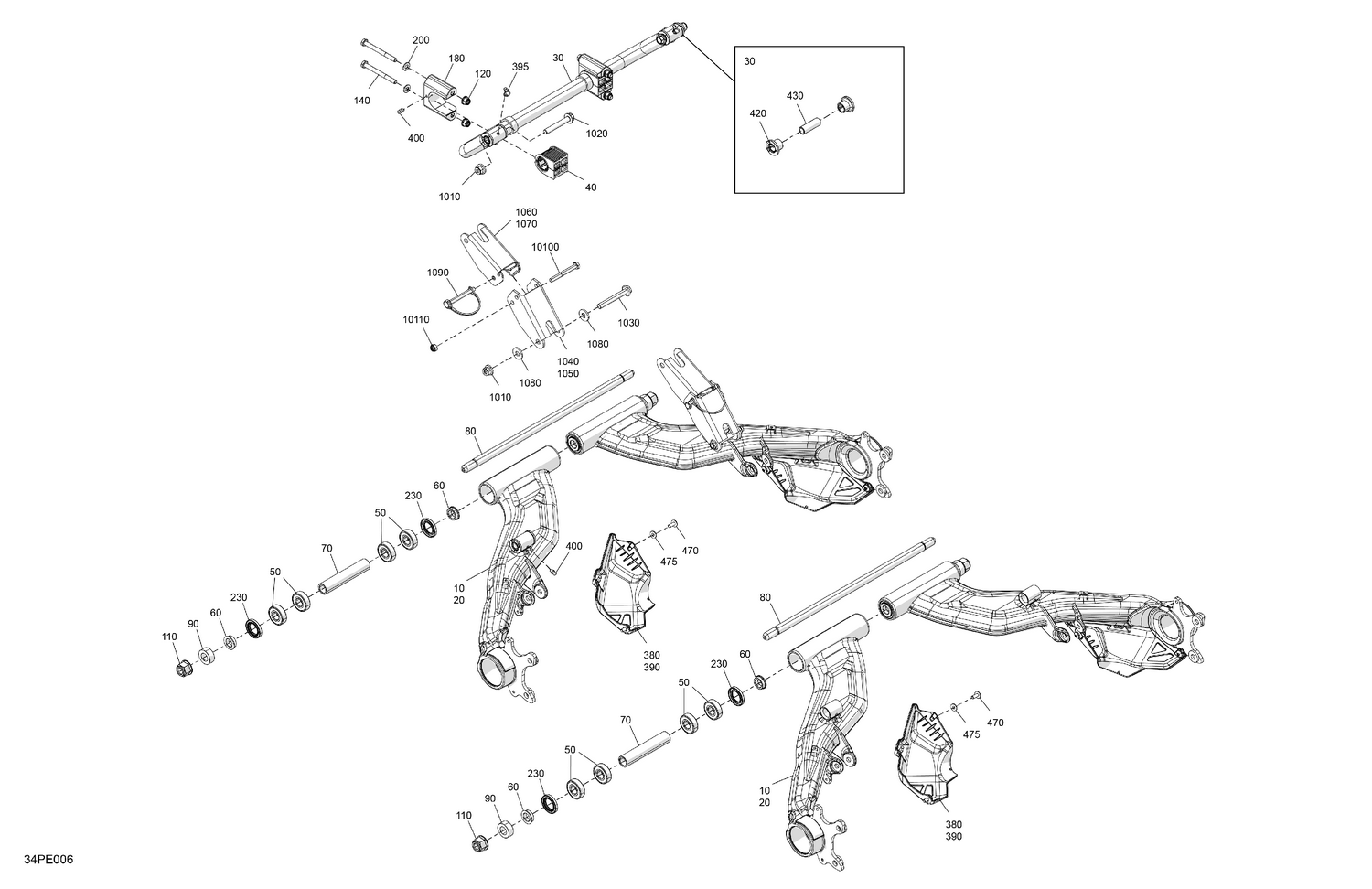

05- Suspension - Rear Components
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706003041 | LH Swing Arm |
| 20 | 706003042 | RH Swing Arm |
| 30 | 706003050 | Sway Bar |
| 40 | 706004641 | Stabilizer Bar Bushing |
| 50 | 293350145 | Ball Bearing |
| 60 | 706001282 | Spacer |
| 70 | 706002259 | Spacer |
| 80 | 706001664 | Axial Pivot M16 |
| 90 | 250200112 | Flat Washer M17 |
| 110 | 233211466 | Hex. Flange Elastic Nut M16 |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 140 | 250001035 | Hex. Screw M8 X 85 |
| 180 | 706001099 | Bushing Holder |
| 200 | 234081410 | Flat Washer 8 mm |
| 230 | 293200144 | Seal |
| 380 | 706003052 | LH Protector |
| 390 | 706003053 | RH Protector |
| 395 | 293550085 | Grease Elbow Fitting |
| 400 | 250000315 | Grease Fitting |
| 420 | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 430 | 706204623 | Spacer |
| 470 | 250000534 | Tork Screw M6 X 16 |
| 475 | 250200039 | Flat Washer |
| 1010 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1020 | 207606536 | Hex. Flange Screw M10 X 65 |
| 1030 | 250000520 | Hex. Screw M10 X 70 |
| 1040 | 706001765 | RH Linkage Outer Part |
| 1050 | 706001600 | LH Linkage Outer Part |
| 1060 | 706001766 | RH Linkage Inner Part |
| 1070 | 706001601 | Linkage Inner Part |
| 1080 | 505073634 | Washer |
| 1090 | 706001602 | Pin Onto The Shaft |
| 10100 | 207086544 | Hex. Screw M8 x 65 |
