Home / BRP / Can-Am ATV / 2005 / Traxter / Traxter CVT (500, 650, 650 XT), 2005 / 01- Belt and Engine Pulley System

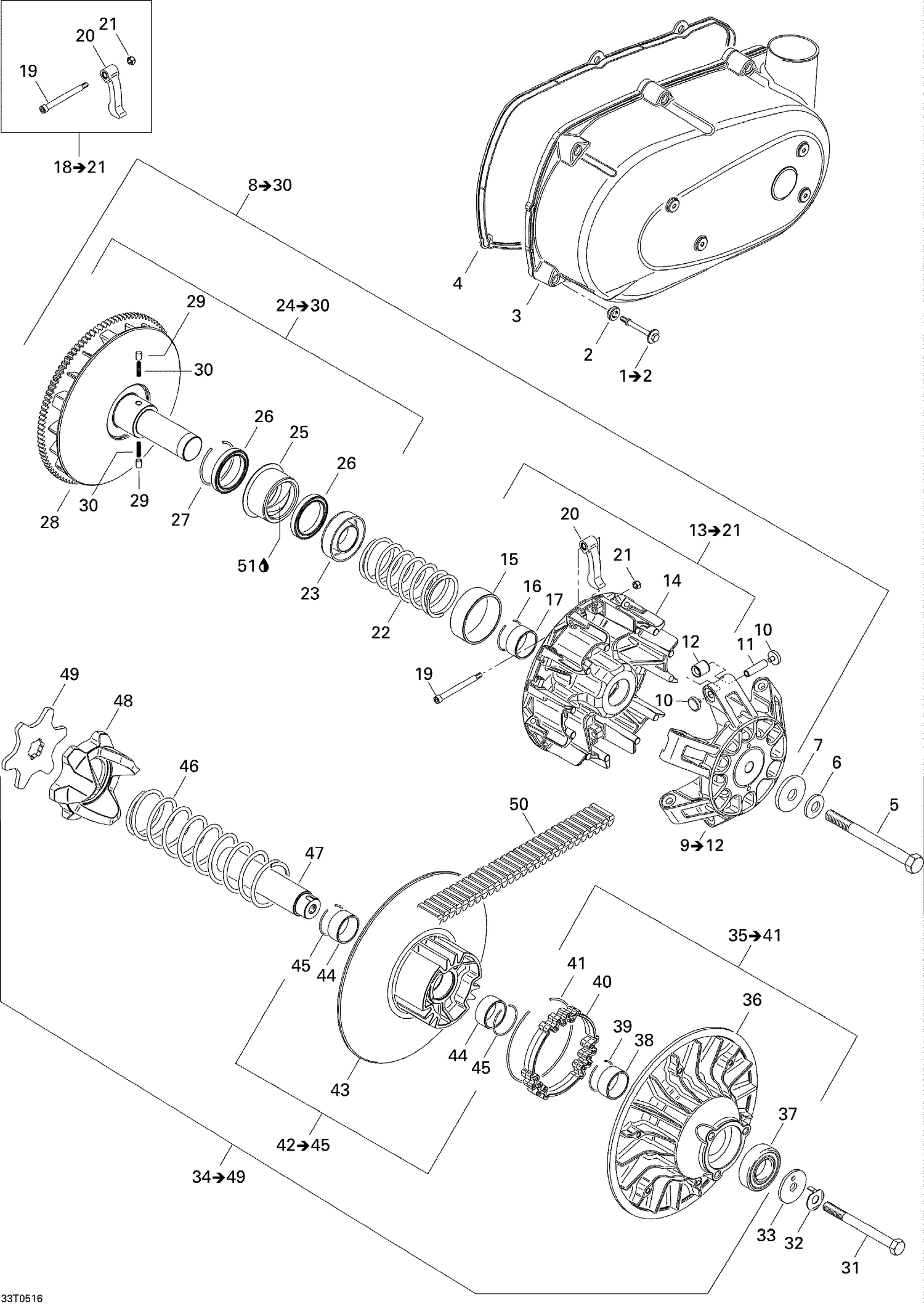

01- Belt and Engine Pulley System

01- Belt and Engine Pulley System

Parts (39)

RefPart NumberDescription
2 420260050 Rubber Bushing
3 420610350 TRANSMISSION COVER - Call your local BRP dealership
4 420630110 GASKET - Call your local BRP dealership
5 420641859 Hex. Screw M12 X 140 This part replaces 420641852.
6 420627768 Spring Washer This part replaces 420627765.
7 420627920 Thrust Washer
10 420281296 Slider Shoe Set This part replaces 420281290.
11 417223257 Roller Axle This part replaces 420233890.
12 417223767 Roller This part replaces 420229585.
14 Not Available As Spare Part - Outer Half
15 Not Available As Spare Part - Bushing
16 Not Available As Spare Part - Retaining Ring
17 Not Available As Spare Part - Bushing
19 Not Available As Spare Part - Screw M5
20 Not Available As Spare Part - Lever
21 Not Available As Spare Part - Lock Nut M5
23 420627573 SPRING SEAT - Call your local BRP dealership
25 420257195 Drive Pulley Clutch
26 420632377 Ball Bearing This part replaces 420632371.
27 420245951 Retaining Ring This part replaces 420245950.
28 Not Available As Spare Part - Inner Half Ass'y
29 420229577 Spring Sleeve This part replaces 420229576.
30 420239134 Spring This part replaces 420239133.
31 420441485 Hex. Screw M10 X 110 This part replaces 420941906.
32 420245925 TAB WASHER - Call your local BRP dealership This part replaces 420245920.
33 420627594 Thrust Washer This part replaces 420627591.
36 Not Available As Spare Part - Outer Half
37 420932421 Ball Bearing This part replaces 420932426.
38 Not Available As Spare Part - Bushing
39 Not Available As Spare Part - Retaining Ring
40 420660120 TORQUE GEAR - Call your local BRP dealership
41 420245911 Retaining Ring This part replaces 420245910.
43 Not Available As Spare Part - Sliding Pulley
44 Not Available As Spare Part - Bushing
45 Not Available As Spare Part - Retaining Ring
46 420238173 Compression Spring, Driven Pulley This part replaces 420238171.
47 420220913 Driven Pulley Shaft This part replaces 420220911.
48 420280191 DRIVEN PULLEY CAM - Call your local BRP dealership
49 420627586 Cam Plate This part replaces 420627582.
