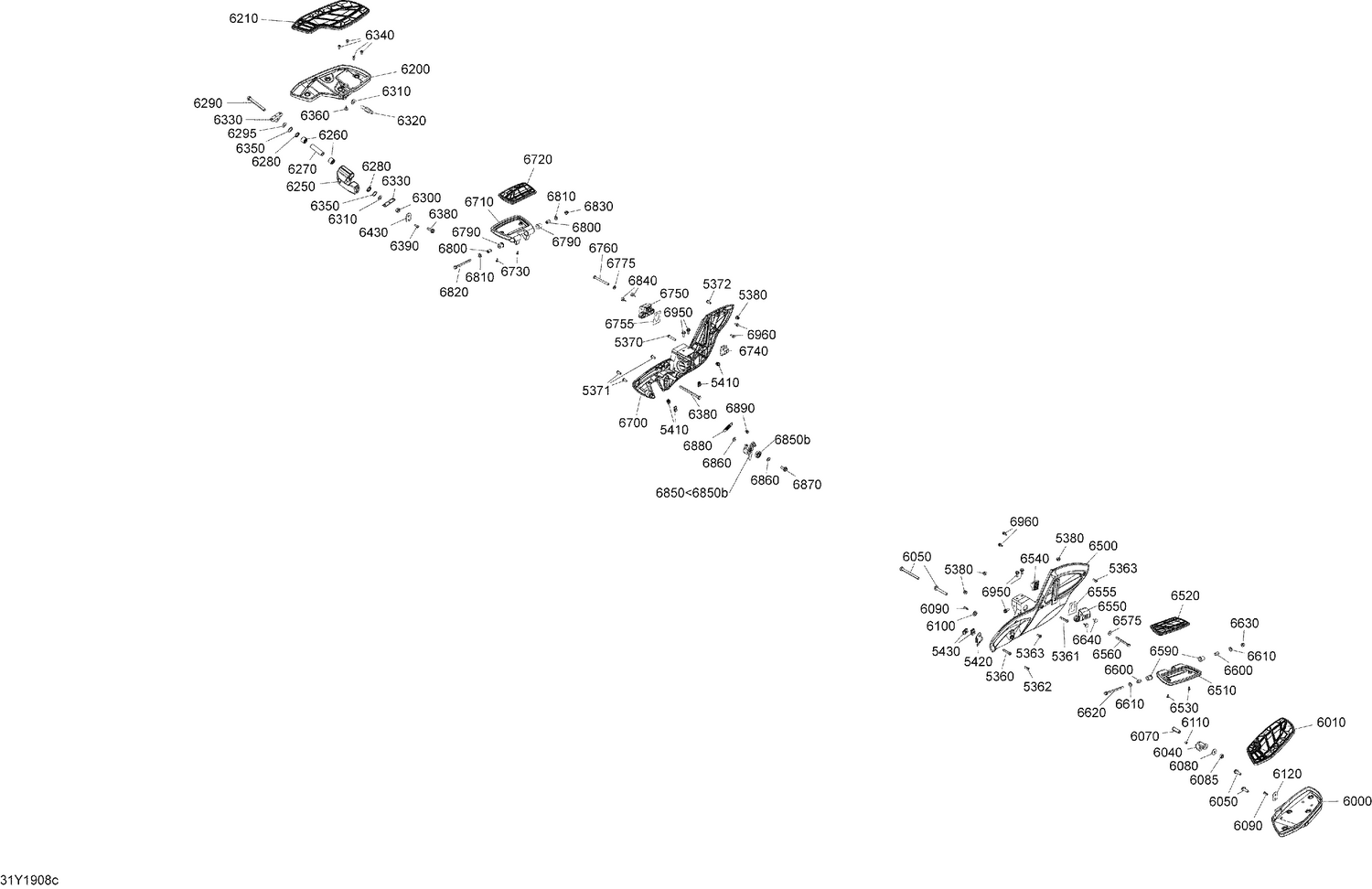

09- Body And Accessories Footrest
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 5360 | 205484560 | Socket Screw M8 X 45 |
| 5361 | 205484560 | Socket Screw M8 X 45 |
| 5362 | 205482060 | Socket Head Screw M8 X 20 |
| 5363 | 205482060 | Socket Head Screw M8 X 20 |
| 5370 | 205484560 | Socket Screw M8 X 45 |
| 5371 | 205482060 | Socket Head Screw M8 X 20 |
| 5372 | 205482060 | Socket Head Screw M8 X 20 |
| 6010 | 705005731 | LH Front Footboard Pad |
| 6050 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 6080 | 234002600 | Flat Washer 10 mm, Stainless |
| 6090 | 250000722 | Torx Screw M6 X 20 |
| 6120 | 705006557 | Retaining Plate |
| 6210 | 705005728 | RH Front Footboard Pad |
| 6250 | 705005723 | Pivot Support |
| 6260 | 706000447 | Bearing |
| 6270 | 706000731 | Bushing |
| 6280 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 6290 | 230020586 | Hexagonal Screw M12 X 105 |
| 6295 | 706200281 | Hardened Washer This part replaces 250200086. |
| 6300 | 232521416 | Elastic Stop Nut M12 |
| 6310 | 234021430 | Flat Washer |
| 6320 | 705006428 | Latch Pin M12 X 30 |
| 6330 | 705005861 | Pivot Bracket |
| 6340 | 250000717 | Torx Head Screw M6 X 16 |
| 6350 | 250200136 | Plastic Washer 20MM |
| 6360 | 708000759 | Rubber Stopper |
| 6380 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 6390 | 250000722 | Torx Screw M6 X 20 |
| 6430 | 705006557 | Retaining Plate |
| 6520 | 705007461 | LH Rubber Rear Pad |
| 6530 | 250000099 | Allen Plastite Screw #12 |
| 6540 | 705003013 | Adjuster Block |
| 6555 | 705014173 | Film, Protective |
| 6560 | 207189060 | Hex. Screw M8 x 90 |
| 6575 | 234281704 | Spring Washer M8 |
| 6590 | 705003018 | Rubber Bushing |
| 6600 | 705002153 | Bushing |
| 6610 | 503183800 | Washer |
| 6620 | 230681034 | Hex. Flange Screw M8 X 110 |
| 6630 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6640 | 708000759 | Rubber Stopper |
| 6720 | 705007472 | RH Rubber Rear Pad |
| 6730 | 250000099 | Allen Plastite Screw #12 |
| 6740 | 705003013 | Adjuster Block |
| 6755 | 705014173 | Film, Protective |
| 6760 | 207189060 | Hex. Screw M8 x 90 |
| 6775 | 234281704 | Spring Washer M8 |
| 6790 | 705003018 | Rubber Bushing |
| 6800 | 705002153 | Bushing |
| 6810 | 503183800 | Washer |
| 6820 | 230681034 | Hex. Flange Screw M8 X 110 |
| 6830 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6840 | 708000759 | Rubber Stopper |
| 6850b | 705600458 | Bearing |
| 6860 | 503183800 | Washer |
| 6870 | 207502546 | Hex. Flange Screw M10 X 25 |
| 6880 | 705006533 | Spring |
| 6890 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 6950 | 207582054 | Hex Screw Washer Head M8 X 20 |
