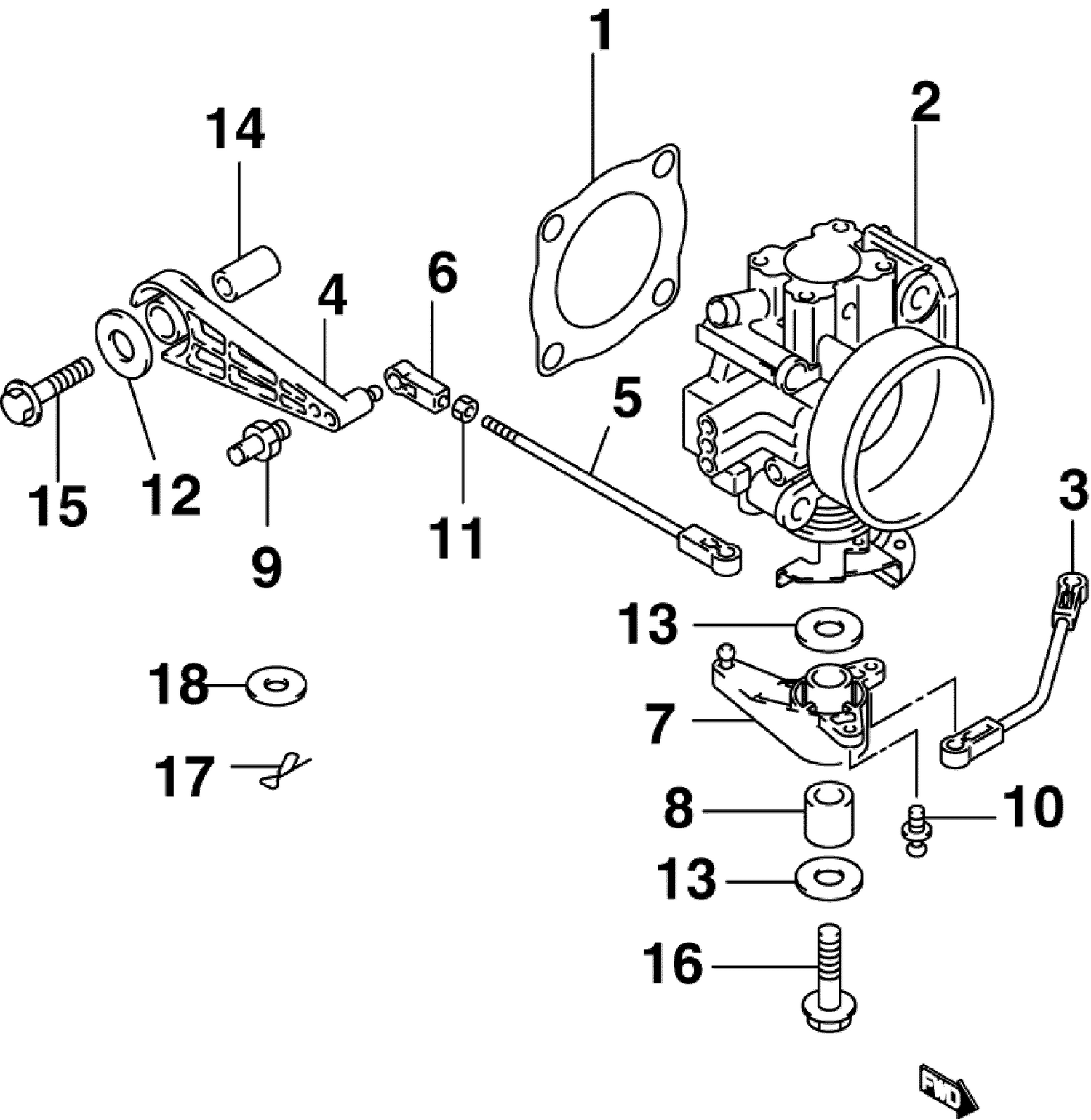

THROTTLE BODY
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032898 | GASKET, Throttle body |
| 2 | 5032446 | BODY, Throttle |
| 3 | 5030686 | ROD, Throttle |
| 5 | 5030759 | ROD, Throttle |
| 6 | 5030760 | CONNECTEUR, TRINGLERIE D’ACCÉLÉRATEUR |
| 7 | 5030761 | LEVER, Throttle |
| 8 | 5030762 | PIVOT, Throttle lever |
| 9 | *5032289 | PIN,CONNECTOR |
| 10 | 5030403 | BOLT |
| 12 | 5030428 | RONDELLE |
| 13 | 5036721 | WASHER (8.5X23X1.2mm) |
| 14 | 5030475 | SPACER |
| 15 | 5031079 | BOLT |
| 17 | *5030575 | CLIP |
