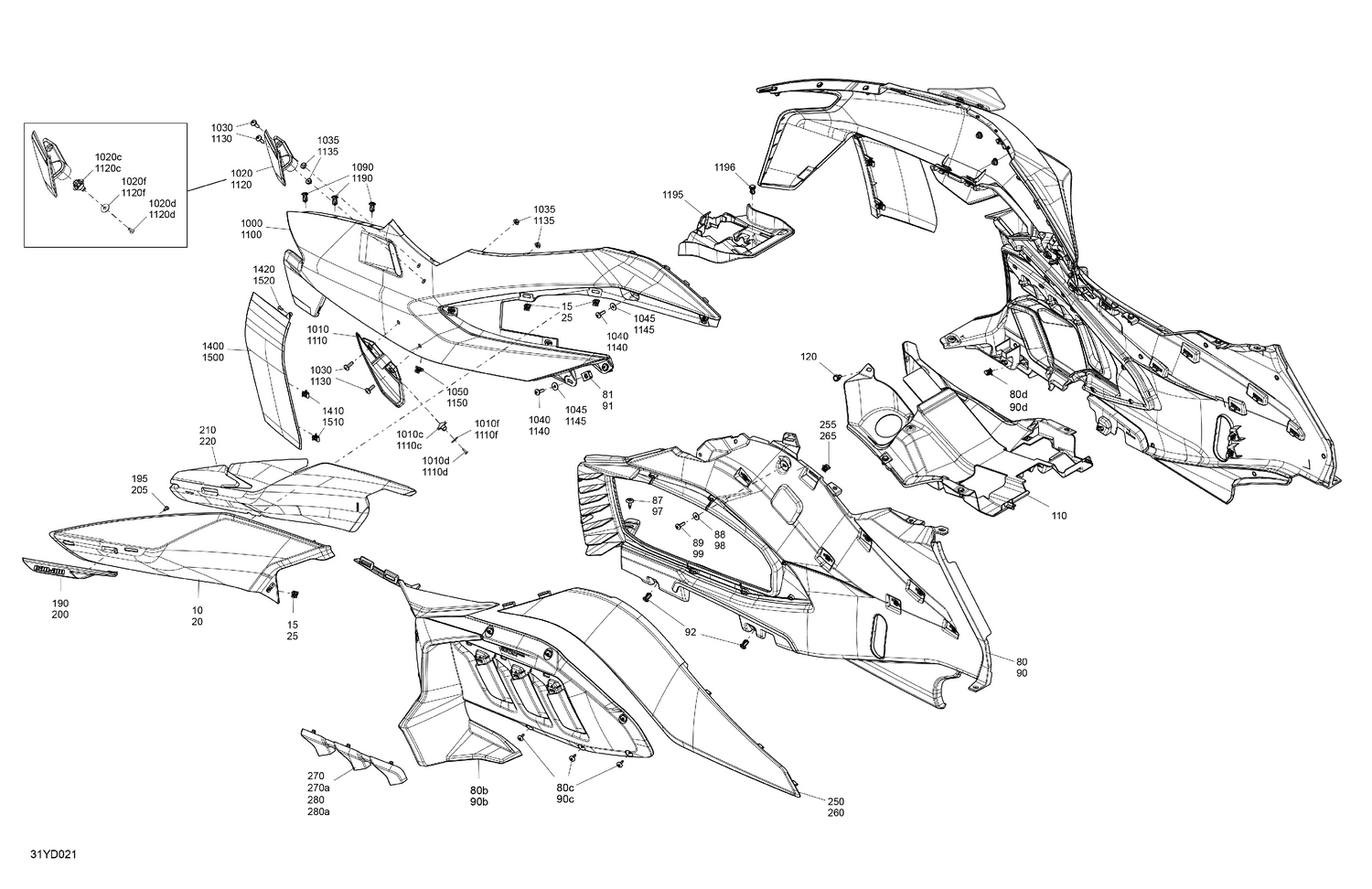

| Ref | Part Number | Description |
|---|
| 10 |
705013938 |
Black, LH Access Cover |
| 15 |
517302785 |
Edge Clip |
| 20 |
705013939 |
Black, RH Access Cover |
| 25 |
517302785 |
Edge Clip |
| 80b |
705016438 |
LH Deflector |
| 80c |
250001105 |
Screw Type K-40 M4 X 16 |
| 80d |
517302785 |
Edge Clip |
| 81 |
250100208 |
Panel Nut M6 X 1.0 |
| 87 |
414745900 |
Tuflock Phillips Plastic Screw |
| 88 |
234062670 |
Stainless Steel Flat Washer |
| 89 |
250000807 |
Torx Truss Screw M6 X 25 |
| 90b |
705016439 |
RH Deflector |
| 90c |
250001105 |
Screw Type K-40 M4 X 16 |
| 90d |
517302785 |
Edge Clip |
| 91 |
250100208 |
Panel Nut M6 X 1.0 |
| 92 |
293150230 |
Tuflok Plastic Rivet |
| 97 |
414745900 |
Tuflock Phillips Plastic Screw |
| 98 |
234062670 |
Stainless Steel Flat Washer |
| 99 |
250000705 |
Torx Truss Screw M6 X 20 |
| 110 |
705016790 |
Tank Guard |
| 120 |
293150230 |
Tuflok Plastic Rivet |
| 190 |
708304708 |
Moka, LH Fairing Trim |
| 195 |
250001131 |
Torx Truss PT K40 x 12 |
| 200 |
708304709 |
Moka, RH Fairing Trim |
| 205 |
250001131 |
Torx Truss PT K40 x 12 |
| 210 |
518331044 |
LH Front Trim Acoustic Insulation |
| 220 |
518331045 |
RH Front Trim Acoustic Insulation |
| 250 |
705018580 |
Vegas White Satin, LH Upper Fairing |
| 255 |
517302785 |
Edge Clip |
| 260 |
705018581 |
Vegas White Satin, RH Upper Fairing |
| 265 |
517302785 |
Edge Clip |
| 270a |
708303186 |
Deep Black, RH Engine Trim |
| 280a |
708303182 |
Deep Black, LH Engine Trim |
| 1000 |
708201292 |
Vegas White Satin, LH Front Fairing |
| 1010c |
705015127 |
RING_ADJUSTING - Call your local BRP dealership |
| 1010d |
250001131 |
Torx Truss PT K40 x 12 |
| 1010f |
234062600 |
Flat Washer M6, Stainless |
| 1020c |
705015127 |
RING_ADJUSTING - Call your local BRP dealership |
| 1020d |
250001131 |
Torx Truss PT K40 x 12 |
| 1020f |
234062600 |
Flat Washer M6, Stainless |
| 1030 |
250000705 |
Torx Truss Screw M6 X 20 |
| 1035 |
233161414 |
Hex. Flange Nut M6 |
| 1040 |
250000705 |
Torx Truss Screw M6 X 20 |
| 1045 |
234062670 |
Stainless Steel Flat Washer |
| 1050 |
517302785 |
Edge Clip |
| 1090 |
293150230 |
Tuflok Plastic Rivet |
| 1100 |
708201505 |
Vegas White, RH Front Fairing This part replaces 708201293. |
| 1110c |
705015127 |
RING_ADJUSTING - Call your local BRP dealership |
| 1110d |
250001131 |
Torx Truss PT K40 x 12 |
| 1110f |
234062600 |
Flat Washer M6, Stainless |
| 1120c |
705015127 |
RING_ADJUSTING - Call your local BRP dealership |
| 1120d |
250001131 |
Torx Truss PT K40 x 12 |
| 1120f |
234062600 |
Flat Washer M6, Stainless |
| 1130 |
250000705 |
Torx Truss Screw M6 X 20 |
| 1135 |
233161414 |
Hex. Flange Nut M6 |
| 1140 |
250000705 |
Torx Truss Screw M6 X 20 |
| 1145 |
234062670 |
Stainless Steel Flat Washer |
| 1150 |
517302785 |
Edge Clip |
| 1190 |
293150230 |
Tuflok Plastic Rivet |
| 1195 |
705014871 |
Heat Shield |
| 1196 |
293150230 |
Tuflok Plastic Rivet |
| 1400 |
708201167 |
LH Scoop In |
| 1410 |
517302785 |
Edge Clip |
| 1420 |
250001131 |
Torx Truss PT K40 x 12 |
| 1500 |
708201168 |
RH Scoop In |
| 1510 |
517302785 |
Edge Clip |
