| Ref | Part Number | Description |
|---|
| 1 |
0432761 |
NEEDLE VALVE, Slow speed This part replaces 0393022. |
| 3 |
0319682 |
VIS, capteur vers plaque |
| 14 |
0320287 |
ADJUSTMENT LEVER |
| 17 |
0315232 |
RETAINER , Needle valve stbd |
| 23 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 28 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 29 |
0325569 |
T, amorçage |
| 32 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 36 |
0398868 |
END CAP This part replaces 0328802. |
| 39 |
HOSE, |
Primer to tee 25mm (1") |
| 40 |
HOSE, |
Carb. to primer 200mm (7-1/2") |
| 41 |
0329054 |
SCREW |
| 42 |
0395781 |
KNOB & DETENT ASSY |
| 43 |
0330992 |
JOINT TORIQUE, bouton |
| 44 |
0328836 |
WASHER, Primer pump |
| 45 |
0329670 |
NUT |
| 46 |
0328063 |
ADJUSTING KNOB, Slow speed |
| 47 |
0325092 |
GASKET |
| 48 |
0316355 |
BUT, Carburetor mounting |
| 49 |
0313329 |
LOCKWASHER, Carburetor link |
| 51 |
HOSE. |
Tee to Carb. 200mm (8") |
| 0393940 |
5007336 |
Kit Ay This part replaces 0393940. |
| 0395280 |
0395280 |

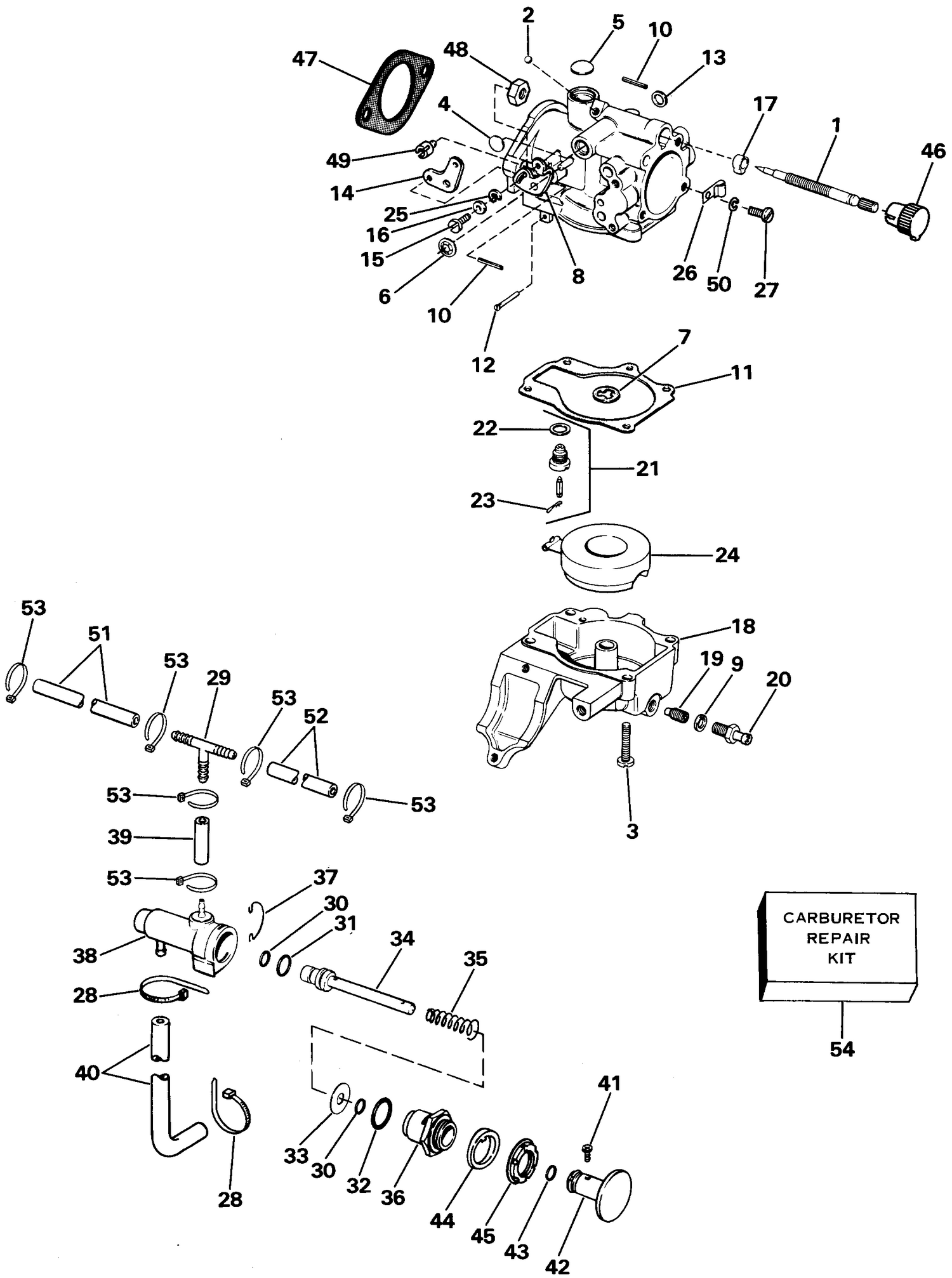

CARBURETOR ASSY. |
