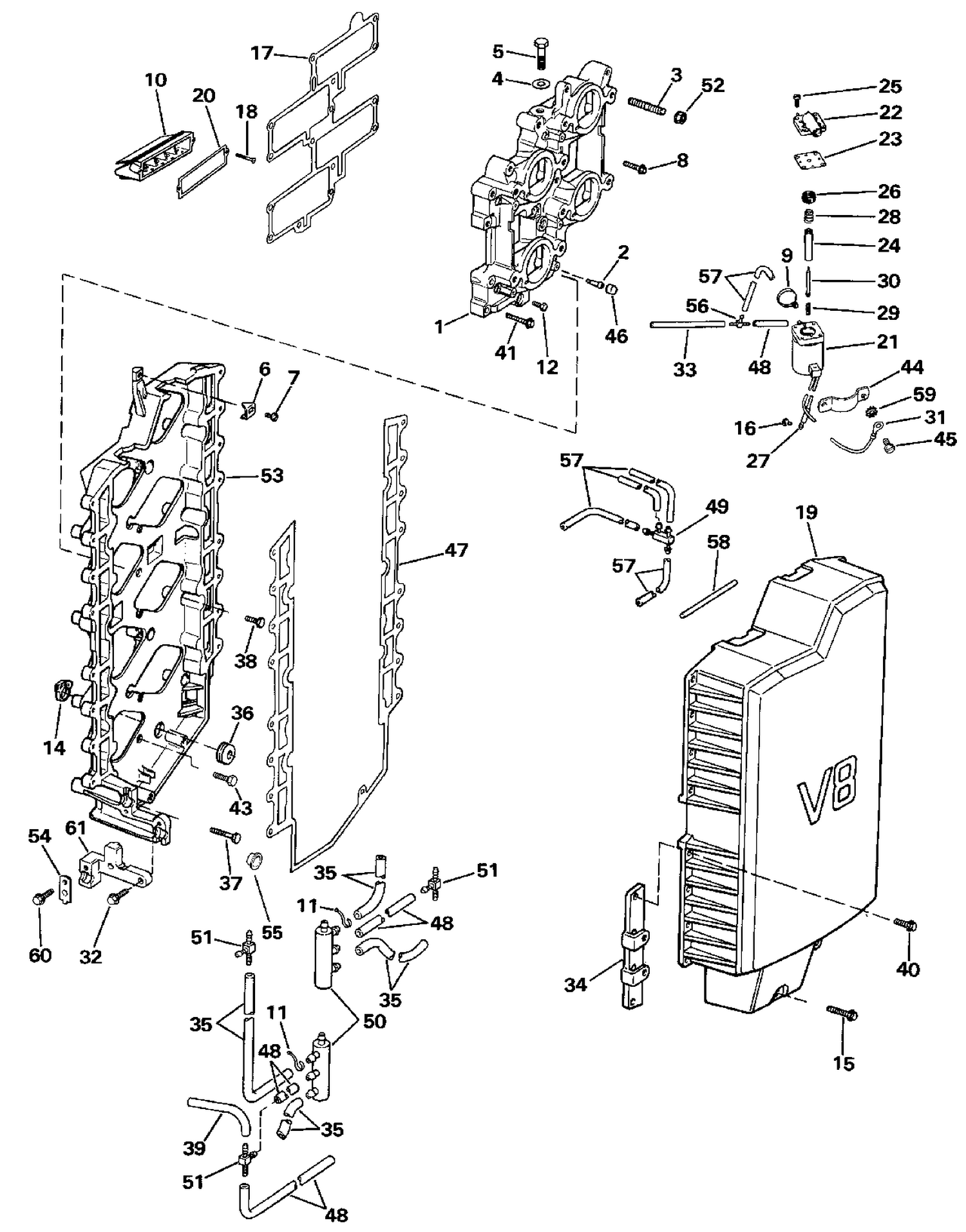

INTAKE MANIFOLD — Parts Catalog

Ref	Part Number	Description
1	0397497	INTAKE MANIFOLD ASSY.
3	0310872	STUD
5	0347338	SCREW, Cam to C/C This part replaces 0332353.
6	0331153	TIMING POINTER, Manifold
7	0328696	SCREEN, Ground lead
10	0397336	LEAF PLATE ASSY.
11	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
12	0307471	SCREW
15	0331102	SCREW, Coil to block
16	0329182	VIS, borne
17	0328622	GASKET, Manifold to crankcase
18	0332265	SCREW, Cover to base, long
19	0329988	COVER, Air silencer
20	0332266	GASKET, Leaf plate
21	5007356	Kit Ay This part replaces 0397909.
22	0511807	COVER&GASKET AY
23	0333448	GASKET
32	0909533	SCREW, Pressure relief valve cover
33	0333390	FLEXIBLE, palier inférieur vers vanne de contrôle
34	0331650	SPACER, Cover to base
35	0331674	HOSE, Carb. to primer
37	0314610	SCREW
39	0329695	HOSE
40	0909533	SCREW, Pressure relief valve cover
41	0322906	SCREW, Intake, long
43	0322831	SCREW
44	0330118	CLAMP
46	0322892	CAP, Adapter elbow
47	0331696	GASKET, Cover
48	HOSE,	Carburetor feed lines
49	0325564	CONNECTOR, Drain hose
50	5004610	FITTING, Fuel manifold This part replaces 0395540.
52	0316355	BUT, Carburetor mounting
53	0334768	BASE, Air silencer
54	0329271	CLAMP, Trunnion cable
55	0335536	NIPPLE
56	0325569	T, amorçage
57	HOSE,	Primer system
58	SEAL,	Cover to base
