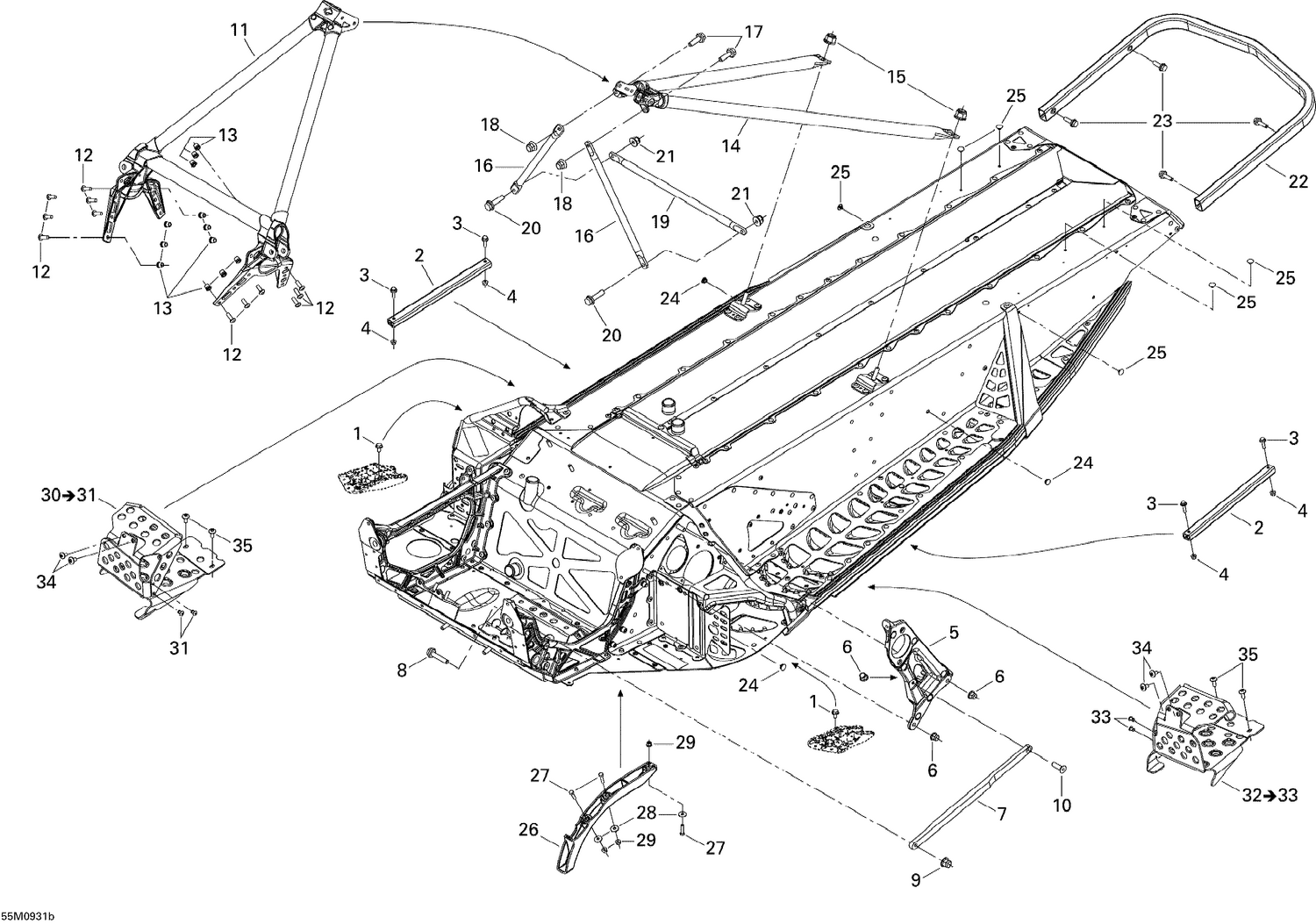

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
518325790 |
REINFORCEMENT LINK - Call your local BRP dealership |
| 3 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 4 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 5 |
518328346 |
Pulley Support This part replaces 518325934. |
| 6 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
518326118 |
LINK - Call your local BRP dealership |
| 8 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 11 |
518326970 |
Front Member This part replaces 518325929. |
| 12 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
518326559 |
Rear Member This part replaces 518325927. |
| 15 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 16 |
518325114 |
Upper Lateral Column Support |
| 17 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
518325115 |
Center Column Support |
| 20 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
518324980 |
Clear Rear Bumper |
| 23 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 24 |
293730041 |
Full Moon Dart 8 mm |
| 25 |
293730042 |
Full Moon Dart 5 mm |
| 26 |
518326973 |
Front Tunnel Protector This part replaces 518324985. |
| 27 |
207152044 |
Hex. Screw M5 X 20 |
| 28 |
391301600 |
Washer |
| 29 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 31 |
390909100 |
Avex Rivet |
| 33 |
390909100 |
Avex Rivet |
| 34 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
