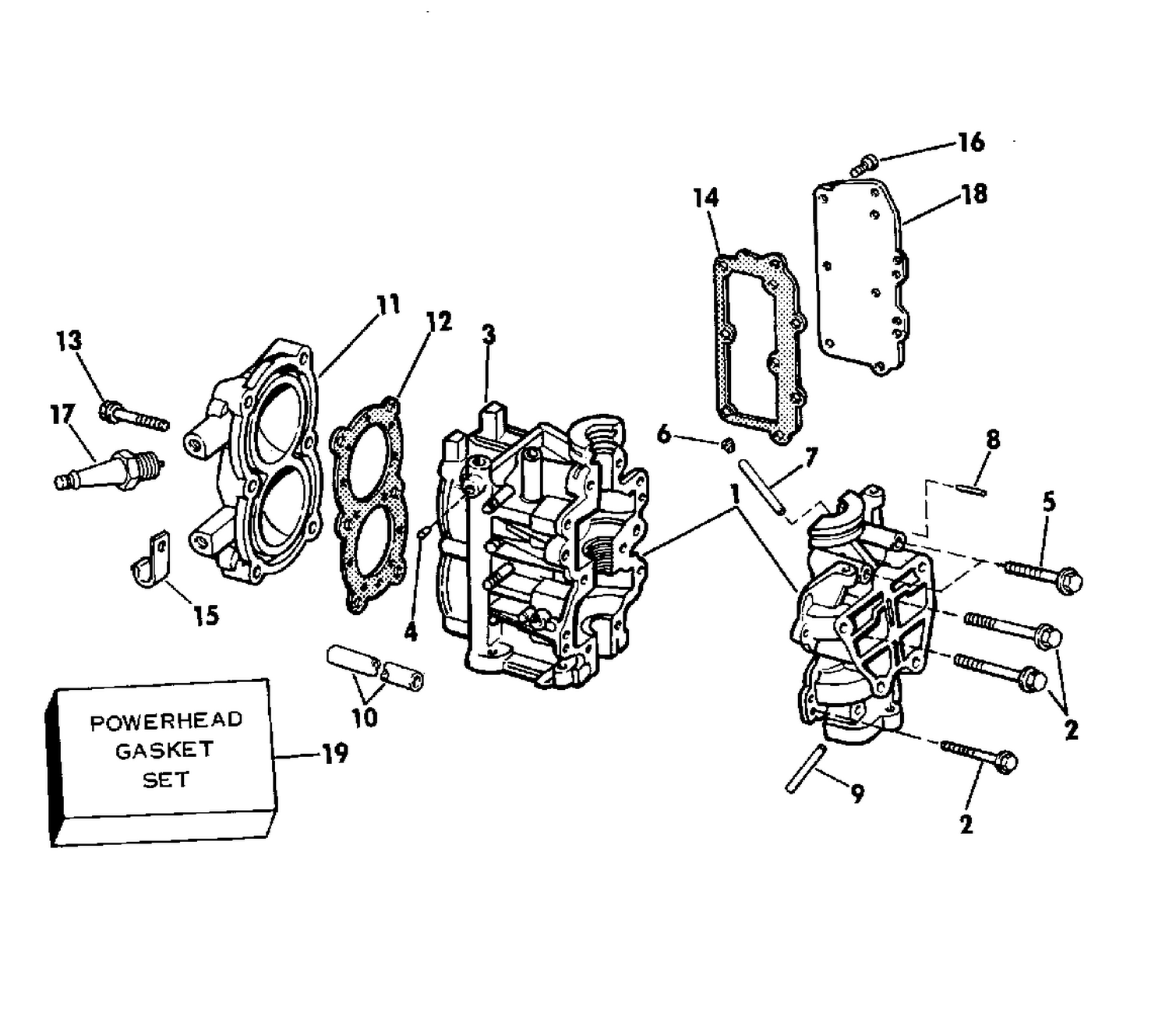

| Ref | Part Number | Description |
|---|
| 1 |
0389678 |
CYLINDER & C'CASE ASSY. |
| 2 |
0314951 |
SCREEN, Mfld. to c'case |
| 5 |
0322831 |
SCREW |
| 6 |
0328089 |
ORIFICE This part replaces 0318494. |
| 7 |
0328158 |
TUBE, Crankcase drain This part replaces 0323447. |
| 9 |
0328159 |
TUBE, Crankcase drain This part replaces 0323448. |
| 11 |
0398131 |
CYLINDER HEAD This part replaces 0389969. |
| 12 |
0203130 |
GASKET, Cylinder head |
| 13 |
0314951 |
SCREEN, Mfld. to c'case |
| 14 |
0323445 |
GASKET, Cover plate |
| 15 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 17 |
0386939 |
PARK PLUG,AC M40FFX |
| 17 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 18 |
0323263 |
PLATE, EXH COVER |
