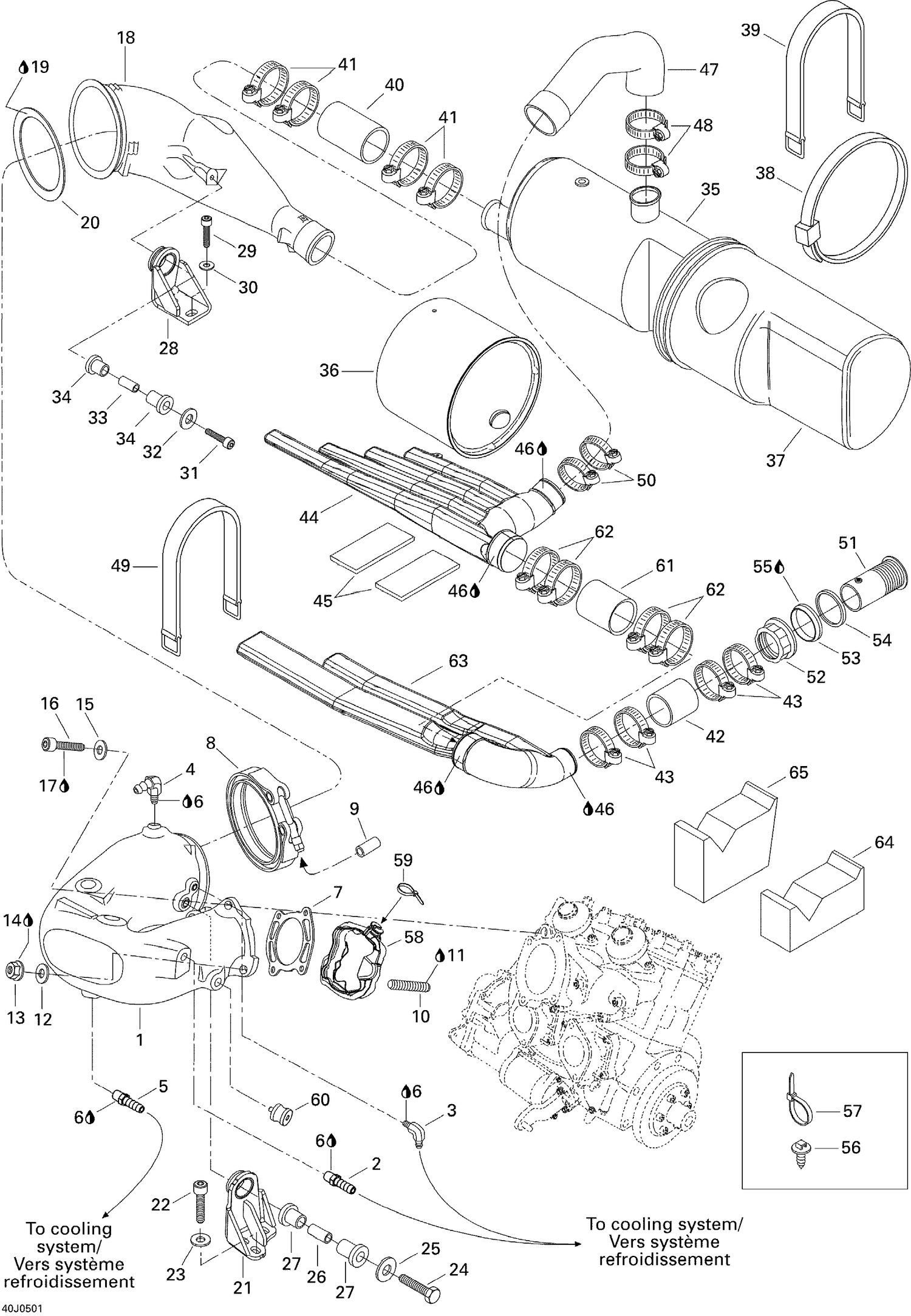

| Ref | Part Number | Description |
|---|
| 1 |
274001107 |
Pipe Head, Black |
| 2 |
293710037 |
Male Connector |
| 3 |
293710048 |
Elbow Fitting 90° |
| 4 |
293700016 |
Elbow Fitting |
| 5 |
293710021 |
Male Connector |
| 6 |
219704454 |
Was 293800013 Loctite 56765 |
| 7 |
420931990 |
EXHAUST GASKET - Call your local BRP dealership |
| 8 |
274000510 |
EXHAUST CLAMP - Call your local BRP dealership |
| 9 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 10 |
250300008 |
STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 11 |
293800005 |
Loctite 271, 10 ml |
| 12 |
211200051 |
Flat Washer |
| 13 |
233101600 |
Hex. Flange Nut M10 |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
211200051 |
Flat Washer |
| 16 |
244003560 |
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
274000871 |
EXHAUST CONE, BLACK - Call your local BRP dealership |
| 19 |
293800090 |
Sealant, Loctite, 80 ml |
| 20 |
274000511 |
SEALING RING - Call your local BRP dealership |
| 21 |
274001109 |
Pipe Support, Black |
| 22 |
244083060 |
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 23 |
250200012 |
FLAT WASHER M8.4 - Call your local BRP dealership |
| 24 |
245004060 |
HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership |
| 25 |
234002600 |
Flat Washer 10 mm, Stainless |
| 26 |
274000861 |
BUSHING - Call your local BRP dealership |
| 27 |
293830065 |
RUBBER BUSHING - Call your local BRP dealership |
| 28 |
274001110 |
PIPE SUPPORT, BLACK - Call your local BRP dealership |
| 29 |
244083060 |
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 30 |
250200012 |
FLAT WASHER M8.4 - Call your local BRP dealership |
| 31 |
244004060 |
Hex. Screw M10 X 40, Scotch Grip |
| 32 |
234002600 |
Flat Washer 10 mm, Stainless |
| 33 |
274000861 |
BUSHING - Call your local BRP dealership |
| 34 |
293830065 |
RUBBER BUSHING - Call your local BRP dealership |
| 35 |
274000826 |
MUFFLER - Call your local BRP dealership |
| 36 |
274000796 |
MUFFLER COVER, FRONT - Call your local BRP dealership |
| 37 |
274000799 |
Muffler Cover, Rear |
| 38 |
293750020 |
WRAP_TIE 828 X 9 - Call your local BRP dealership |
| 39 |
293850097 |
Retainer Strap |
| 40 |
274000896 |
Exhaust Hose |
| 41 |
293650064 |
Tridon Clamp |
| 42 |
274000616 |
Exhaust Hose |
| 43 |
293650064 |
Tridon Clamp |
| 44 |
274000700 |
LH UPPER RESONATOR - Call your local BRP dealership |
| 45 |
274000752 |
RUBBER PAD - Call your local BRP dealership |
| 46 |
293800090 |
Sealant, Loctite, 80 ml |
| 47 |
274000830 |
Exhaust Hose |
| 48 |
293650064 |
Tridon Clamp |
| 49 |
293850022 |
STRAP - Call your local BRP dealership |
| 50 |
293650064 |
Tridon Clamp |
| 51 |
274000222 |
EXHAUST OUTLET - Call your local BRP dealership |
| 52 |
274000224 |
Nut 72 mm |
| 53 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 54 |
293250041 |
GASKET - Call your local BRP dealership |
| 55 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 56 |
293730040 |
Mount Dart This part replaces 293730018. |
| 57 |
414115200 |
Tie-Rap 180 mm |
| 58 |
274000862 |
PICK UP ENVELOPE - Call your local BRP dealership |
| 59 |
293750002 |
Tie Wrap 142 mm |
| 60 |
707000949 |
Rubber Isolator This part replaces 274000839. |
| 61 |
274000726 |
EXHAUST HOSE - Call your local BRP dealership |
| 62 |
204000079 |
Tridon Clamp |
| 63 |
274000701 |
RESONATOR EXTENSION - Call your local BRP dealership |
| 64 |
204340416 |
Resonator Support, Rear |
