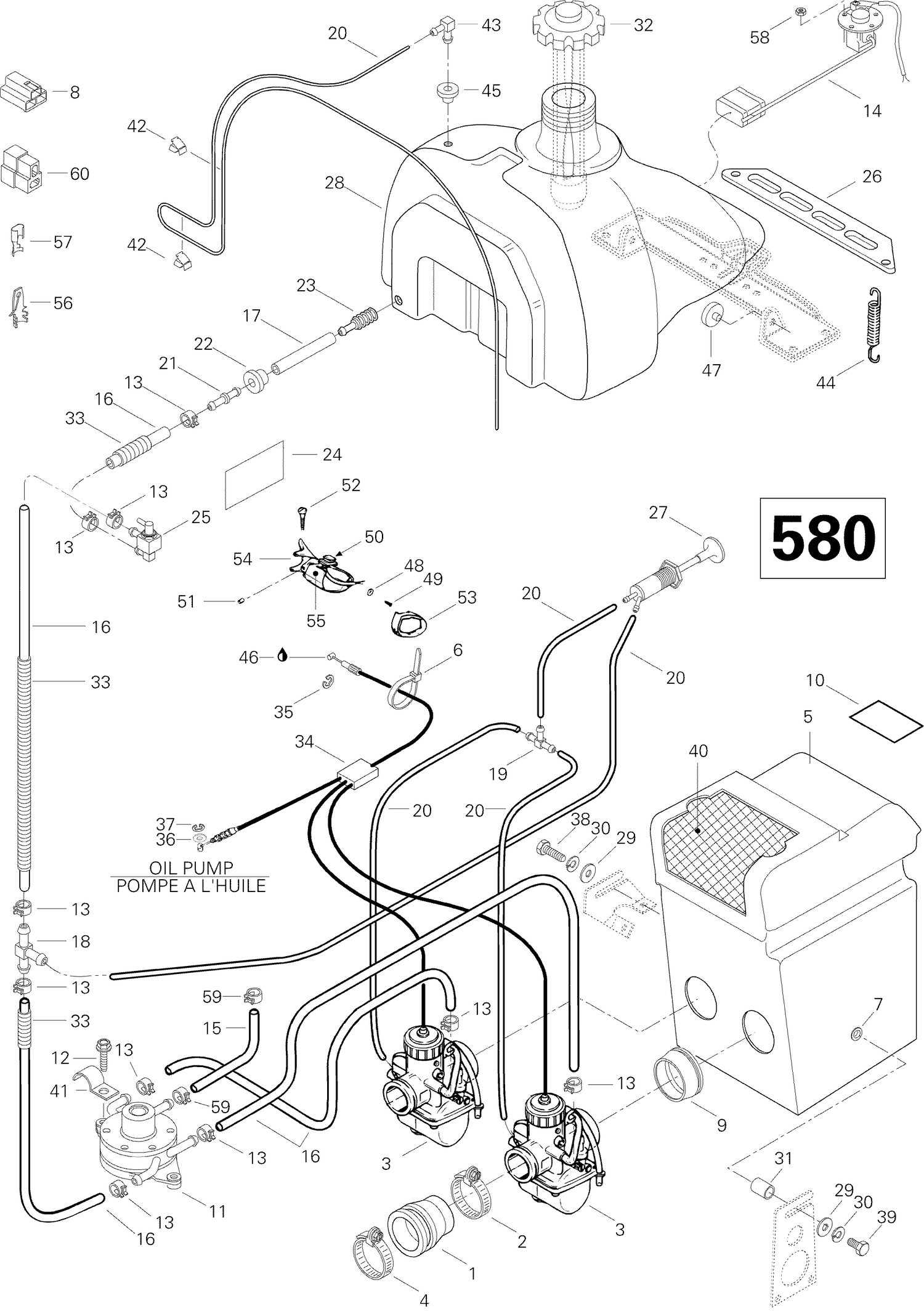

02- Fuel System 580
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570029400 | Rubber Flange |
| 2 | 414532700 | COLLAR - Call your local BRP dealership |
| 3 | 403119800 | Carburetor VM 38-317, PTO Side |
| 3 | 403119900 | Carburetor VM 38-318, MAG Side |
| 4 | 414532800 | Collar |
| 6 | 414115200 | Tie-Rap 180 mm |
| 7 | 732610057 | JACK NUT M6 - Call your local BRP dealership |
| 8 | 409008500 | Female Terminal Housing (3 circuits) |
| 9 | 570038400 | Intake Adaptor |
| 10 | 414161500 | Warning Decal |
| 11 | 403900900 | Fuel Pump |
| 12 | Not | Available As Spare Part - Hex. Screw M6 x 20 |
| 13 | 414554800 | Spring Clamp |
| 14 | 410108400 | Fuel Level Sensor |
| 15 | 219704549 | Hose This part replaces 219704439. |
| 16 | 219704410 | Polyurethane Hose 10000Mm Long |
| 17 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 18 | 414222500 | T-fitting |
| 19 | 414222400 | T-Fitting |
| 20 | 414296900 | Fuel Line 3.18 mm |
| 21 | 414518500 | Male Connector |
| 22 | 570045500 | Grommet |
| 23 | 414865700 | Fuel Filter |
| 24 | 414931500 | Security Label |
| 25 | 414935900 | SHUT OFF VALVE - Call your local BRP dealership |
| 26 | 517249200 | Fuel Tank Bracket |
| 27 | 415060500 | Primer This part replaces 414479200. |
| 28 | 572057100 | Fuel Tank |
| 29 | 224061121 | Flat Washer |
| 30 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 31 | 517256400 | Spacer |
| 32 | 513033025 | Fuel Tank Cap This part replaces 572039600. |
| 33 | 219704400 | Was 409901800 Tubing (13 mm) |
| 34 | 414966801 | Throttle Cable and Housing |
| 35 | 414274500 | Circlip |
| 36 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 37 | 414753500 | Circlip |
| 38 | 207162544 | Hex. Screw M6 X 25 This part replaces 222062565. |
| 39 | 207063544 | Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 40 | 572029007 | Air Filter Foam (2 Holes Silencer) |
| 41 | 414176000 | Open Clamp |
| 42 | 414227300 | Clip |
| 43 | 414814100 | Male Connector |
| 44 | 415107100 | Spring This part replaces 414893700. |
| 45 | 709200285 | Grommet This part replaces 570135100. |
| 46 | 293550004 | Dielectric Grease, 150 g This part replaces 413701700. |
| 47 | 707800347 | Grommet This part replaces 570273900. |
| 48 | 391300700 | WASHER-FLAT - Call your local BRP dealership |
| 49 | 414473200 | Screw |
| 50 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 51 | 414440800 | Socket Set Screw M8 X 10 |
| 52 | 732601143 | Flange Screw |
| 53 | 572044600 | THROTTLE COVER - Call your local BRP dealership |
| 54 | 512059348 | Handle Ass'y This part replaces 572056900. |
| 55 | 572028600 | Throttle Handle Housing |
| 56 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 57 | 561503200 | Female Terminal PACKARD |
| 58 | 232551414 | Elastic Stop Nut M5 This part replaces 228551045. |
| 59 | 414415200 | Spring Clamp |
