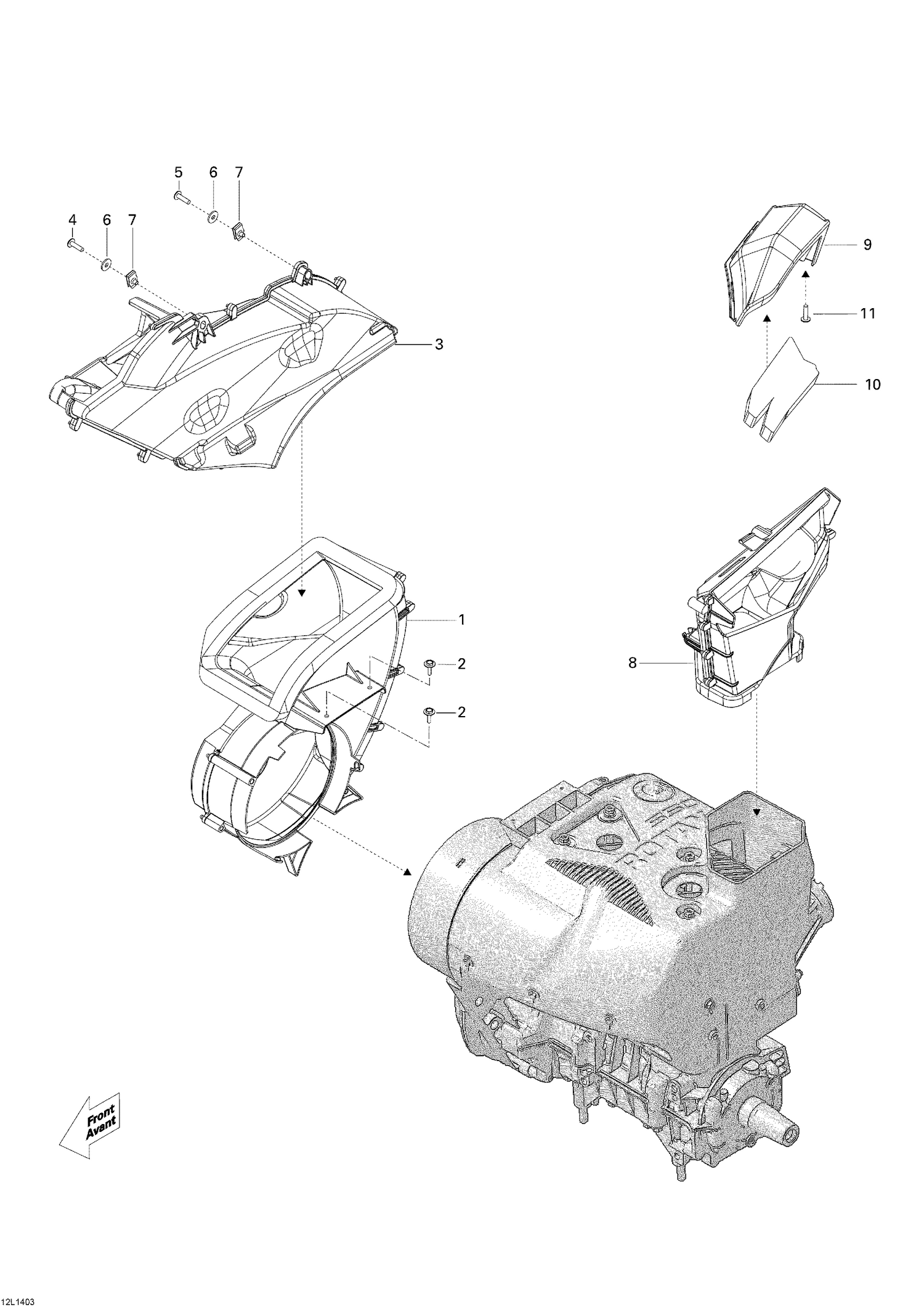

| Ref | Part Number | Description |
|---|
| 1 |
509000840 |
Inlet Duct Ass'y |
| 2 |
250000377 |
PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership |
| 3 |
509001176 |
Chamber Ass'Y This part replaces 509000684. |
| 4 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 5 |
250000762 |
Torx-Truss Screw M5 x 25 This part replaces 250000300. |
| 6 |
391301600 |
Washer |
| 7 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 8 |
509001175 |
Duct-Outlet Ass'Y This part replaces 509000683. |
| 9 |
509000687 |
Air Out Deflector |
| 10 |
509000831 |
FOAM-IN - Call your local BRP dealership |
