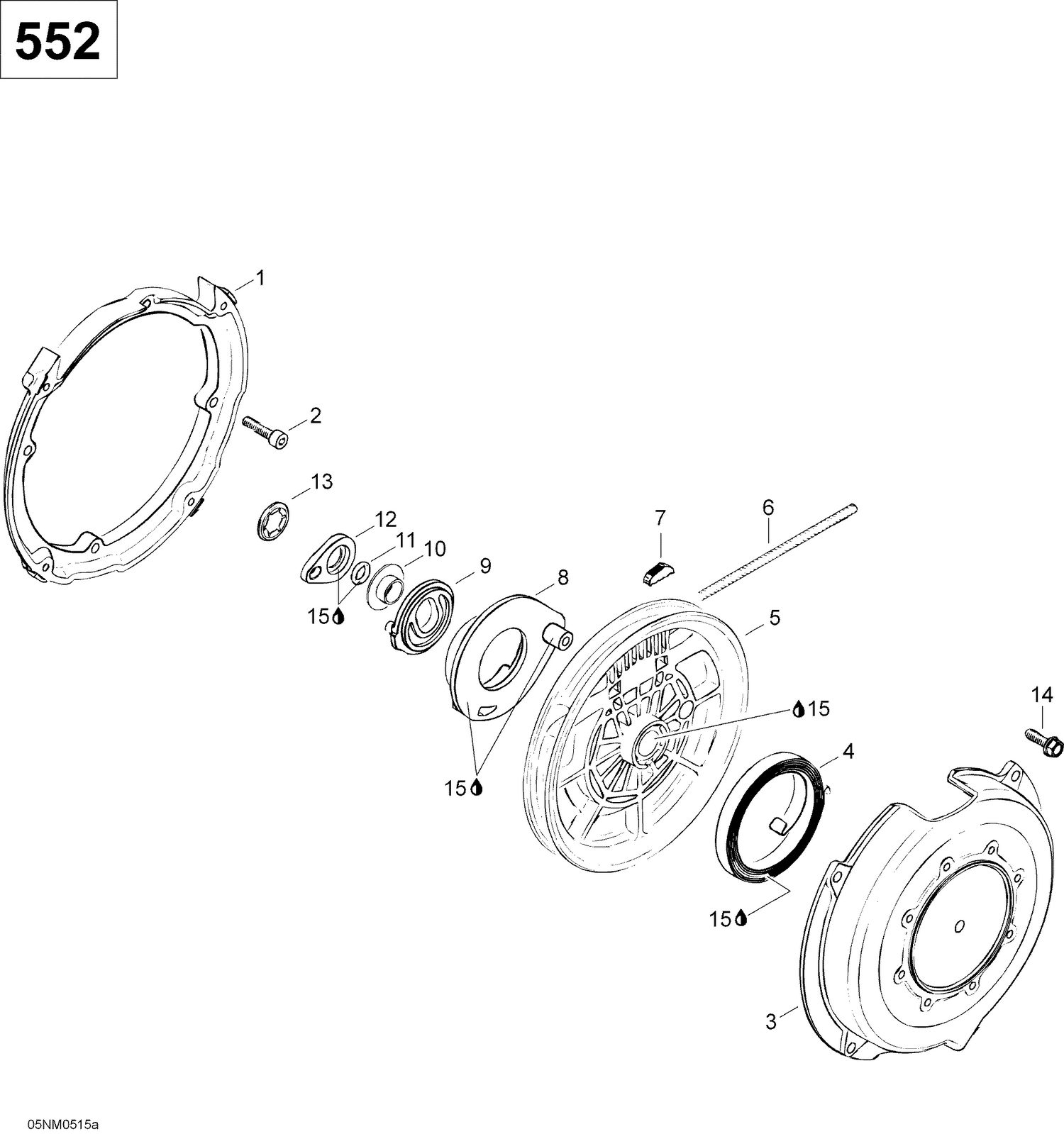

| Ref | Part Number | Description |
|---|
| 1 |
420810955 |
Connecting Flange This part replaces 420810952. |
| 2 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 This part replaces 420440202. |
| 3 |
420888219 |
Rewind starter assy This part replaces 420811346. |
| 4 |
420939115 |
Rewind Spring Ass'y |
| 5 |
420852480 |
Rope sheave |
| 6 |
412500100 |
STARTER ROPE 2200 MM - Call your local BRP dealership |
| 6 |
420852492 |
Käynnistinnaru (2.2 m) |
| 7 |
420852070 |
Key clamp |
| 8 |
420852296 |
Medbringare |
| 9 |
420852305 |
PAWL LOCK - Call your local BRP dealership |
| 10 |
420847926 |
Stage Sleeve This part replaces 420847925. |
| 11 |
420250400 |
O-rengas |
| 12 |
420852520 |
Lukitsinkappale |
| 13 |
420845560 |
Locking element |
| 14 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
