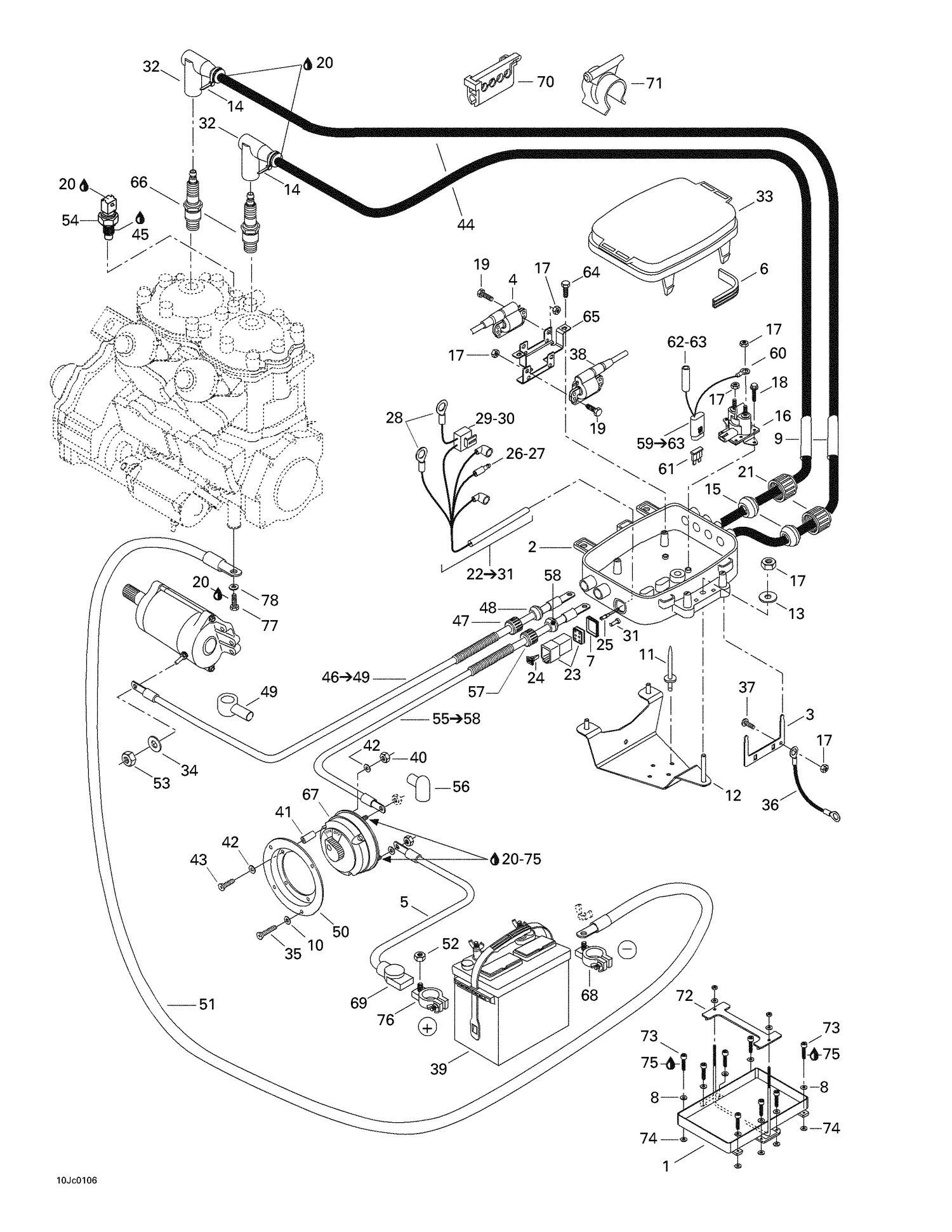

| Ref | Part Number | Description |
|---|
| 1 |
204471008 |
BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470341. |
| 2 |
278001425 |
ELECTRIC BOX BASE - Call your local BRP dealership |
| 3 |
278000732 |
Ground Plate |
| 4 |
278001416 |
Ignition Coil (MAG) |
| 5 |
204470250 |
POSITIVE SWITCH CABLE - Call your local BRP dealership |
| 6 |
278001173 |
GASKET - Call your local BRP dealership |
| 7 |
293200030 |
Gasket |
| 8 |
204100069 |
FLAT WASHER - Call your local BRP dealership |
| 9 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 10 |
234041600 |
Flat Washer 4 mm, Stainless |
| 11 |
293150037 |
Avdel Rivet 3/16" |
| 12 |
278001426 |
Electric Box Support Ass'y |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
293750002 |
Tie Wrap 142 mm |
| 15 |
278000682 |
Grommet |
| 16 |
278003012 |
Starter Relay This part replaces 278001376. |
| 17 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 18 |
210261040 |
Hex. Flange Screw M6 X 10 |
| 19 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
278000100 |
Electric Wire Cap |
| 23 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 24 |
278000735 |
Female Lock, 6 Circuits |
| 25 |
278000631 |
Male Terminal |
| 26 |
278000230 |
Male Terminal |
| 27 |
278001008 |
Insulated Sheath |
| 28 |
278000300 |
Ring Terminal |
| 29 |
278001113 |
Male Connector, 2 Circuits |
| 30 |
278001114 |
Female Terminal |
| 31 |
293000052 |
Sealing Cap |
| 32 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 33 |
278001433 |
ELECTRIC BOX COVER - Call your local BRP dealership |
| 34 |
234061600 |
Stainless Flat Washer M6 |
| 35 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 36 |
278001501 |
Ground Wire |
| 37 |
250000436 |
Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 38 |
278001414 |
COIL-IGNITION - Call your local BRP dealership |
| 39 |
Not |
Available As Spare Part - Battery |
| 40 |
232551600 |
Hex. Elastic Nut M5 |
| 41 |
204470330 |
NYLON SPACER - Call your local BRP dealership |
| 42 |
234051600 |
Flat Washer M5, Stainless |
| 43 |
208652560 |
Phillips Screw M5 X 25 |
| 44 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 47 |
278000100 |
Electric Wire Cap |
| 48 |
278000098 |
GROMMET - Call your local BRP dealership |
| 49 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 50 |
204470259 |
SWITCH SUPPORT - Call your local BRP dealership |
| 51 |
204470199 |
RH GROUND CABLE - Call your local BRP dealership |
| 52 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
| 53 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 54 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 56 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 57 |
278000100 |
Electric Wire Cap |
| 58 |
278000098 |
GROMMET - Call your local BRP dealership |
| 60 |
278000300 |
Ring Terminal |
| 61 |
278000343 |
Fuse, 15 Amperes |
| 62 |
278001009 |
Female Terminal |
| 63 |
278001007 |
Insulated Sheath |
| 64 |
209561640 |
Hex. Screw M6 X 16 |
| 65 |
278001421 |
Ignition Coil Support |
| 66 |
219703119 |
NGK Spark Plug BR8ES This part replaces 278000609. |
| 67 |
204470329 |
Battery Switch |
| 68 |
204470348 |
NEGATIVE BATTERY POLE - Call your local BRP dealership |
| 69 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 71 |
278000559 |
COLLAR SUPPORT - Call your local BRP dealership |
| 72 |
204471290 |
TOP BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470340. |
| 73 |
205062560 |
Socket Head Screw M6 X 25 |
| 74 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 75 |
293800060 |
Loctite 243, 10 ml |
| 76 |
204470349 |
POSITIVE BATTERY POLE - Call your local BRP dealership |
| 77 |
207302060 |
Hex. Screw M10 X 20, Scotch Grip |
